Getting Started

This getting started guide will show you how to position GameObjects using the high-precision framework.

1. Install the Package

First and foremost, install the high-precision framework package using the installation instructions. Once you have completed these steps, you will have a new or existing Unity project with the high-precision framework installed.

2. Create a New Scene

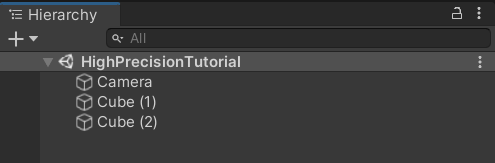

Create a new scene in your project. This process can also be used to convert an existing scene. However, we recommend getting an understanding of the high-precision framework before doing so. In this scene, add two cube GameObjects and a camera which we will later position within a high-precision environment.

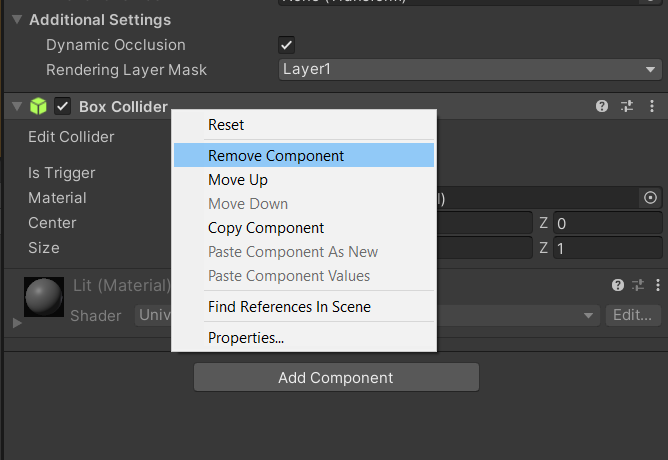

3. Remove Colliders

Unfortunately, as of today, the high-precision framework does not work with the physics engine and can only be used for visualization purposes. For this reason, we will need to remove the colliders from both cube objects.

4. Add High-Precision Components

Organize the scene using high-precision components.

  1. Create the high-precision Root
    • Add an empty GameObject and call it HPRoot
    • Add an HPRoot component
  2. Create a high-precision camera
    • Add an HPTransform to the camera object
    • Make the camera object a child of the HPRoot
  3. Create high-precision meshes
    • Add an HPTransform to each of the cubes
    • Make both cubes children of the HPRoot

5. Select a Rebasing Strategy

The high-precision framework relies on a rebasing strategy to optimize the position of the GameObjects within the scene. The high-precision framework doesn't perform any magic, it only positions objects in a double-precision universe space to then translate them into Unity's world space where it is rendered using single-precision floating-point numbers. The rebasing strategy defines how the universe-space gets translated into world space.

The high-precision framework comes with a LocalCoordinateSystem script which allows us to defined one of our high-precision objects as the object, in universe space, which will always remain very close to the center of our world space.

Add this script to the HPRoot object and link the Origin object to the camera.

Note: This script is an example of a simple rebasing strategy. The high-precision framework is designed such that any rebasing strategy can be implemented in a similar fashion. Use this script as an example.

6. High-Precision Scripting

In order to take advantage of the high-precision framework, you will need to write scripts which position GameObjects within the universe space. To do so, you will need to start using the HPTransform's API. When using the high-precision framework, you should no longer be using the default Transform's API. With this setup, you only need to worry about the position of the objects within the universe. The high-precision framework, combined with the selected rebasing script will take care of positioning the objects within world-space for you.
