spi.c File Reference

The implementation for the SPI Driver. More...

#include "spi.h"

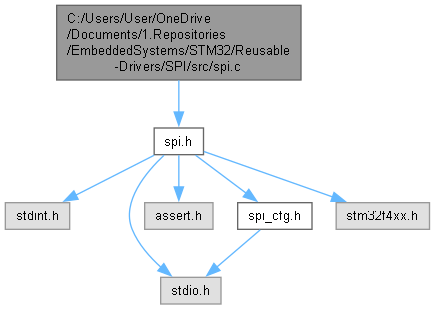

Include dependency graph for spi.c:

Functions
void	SPI_init (const SpiConfig_t *const Config, size_t configSize)
void	SPI_transfer (const SpiTransferConfig_t *const TransferConfig)
void	SPI_receive (const SpiTransferConfig_t *const TransferConfig)
void	SPI_registerWrite (uint32_t address, uint32_t value)
uint16_t	SPI_registerRead (uint32_t address)

Detailed Description

The implementation for the SPI Driver.

Author

Jose Luis Figueroa

Version

1.1

Date

2025-03-11

Copyright

Copyright (c) 2025 Jose Luis Figueroa. MIT License.

Function Documentation

SPI_init()

void SPI_init	(	const SpiConfig_t *const	Config,
		size_t	configSize )

Description: This function is used to initialize the SPI based on the configuration
table defined in spi_cfg module.

PRE-CONDITION: The MCU clocks must be configured and enabled.
PRE-CONDITION: SPI pins should be configured using GPIO driver.
PRE-CONDITION: Configuration table needs to be populated (sizeof > 0)
PRE-CONDITION: The setting is within the maximum values (SPI_MAX).

POST-CONDITION: The peripheral is set up with the configuration settings.

Parameters

[in]	Config	is a pointer to the configuration table that contains the initialization for the peripheral.
[in]	configSize	is the size of the configuration table.

Returns

void

Example:

const SpiConfig_t * const SpiConfig = SPI_configGet();
size_t configSize = SPI_configSizeGet();

SPI_Init(DioConfig, configSize);

See also

SPI_configGet

SPI_getConfigSize

SPI_Init

SPI_Transfer

SPI_RegisterWrite

SPI_RegisterRead

SPI_CallbackRegister

Loop through all the elements of the configuration table.

Set the configuration of the SPI on the control register 1

Set the Clock phase and polarity modes

Set the hierarchy of the device

Set the baud rate of the device

Set the slave select pin management for the device

Set the frame format of the device

Set the data transfer type of the device

Set the data frame format (size) of the device

Enable the SPI module

SPI_receive()

void SPI_receive

(

const SpiTransferConfig_t *const

TransferConfig

)

Description: This function is used to initialize a data reception on the SPI bus. This function is used to receive data specified by the SpiTransferConfig_t structure, which contains the channel, size, and data.

PRE-CONDITION: The MCU clocks must be configured and enabled.
PRE-CONDITION: SPI_Init must be called with valid configuration data.
PRE-CONDITION: SpiTransferConfig_t needs to be populated.
PRE-CONDITION: The Channel is within the maximum SpiChannel_t.
PRE-CONDITION: The size is greater than 0.
PRE-CONDITION: The data is not NULL.

POST-CONDITION: Data transferred based on configuration.

Parameters

[in]

SpiTransferConfig

A pointer to a structure containing the channel, size, and data to be read.

Returns

void

Example:

uint16_t rxdata[1];
 SpiTransferConfig_t ReceiveConfig =
 {
     .Channel = SPI_CHANNEL1,
     .size = sizeof(rxdata)/sizeof(rxdata[0]),
     .data = rxdata
 };
 SPI_receive(&ReceiveConfig);

See also

SPI_configGet

SPI_getConfigSize

SPI_Init

SPI_Transfer

SPI_RegisterWrite

SPI_RegisterRead

SPI_CallbackRegister

SPI_registerRead()

uint16_t SPI_registerRead

(

uint32_t

address

)

Description: This function is used to directly address a SPI register. The function should be used to access specialized functionality in the SPI peripheral that is not exposed by any other function of the interface.

PRE-CONDITION: Address is within the boundaries of the SPI register address space.

POST-CONDITION: The value stored in the register is returned to the caller.

Parameters

[in]

address

is the address of the SPI register to read.

Returns

The current value of the SPI register.

Example:

type spiValue = SPI_registerRead(0x1000);

See also

SPI_configGet

SPI_configSizeGet

SPI_Init

SPI_Transfer

SPI_RegisterWrite

SPI_RegisterRead

SPI_CallbackRegister

SPI_registerWrite()

void SPI_registerWrite	(	uint32_t	address,
		uint32_t	value )

Description: This function is used to directly address and modify a SPI register. The function should be used to access specialized functionality in the SPI peripheral that is not exposed by any other function of the interface.

PRE-CONDITION: Address is within the boundaries of the SPI register address space.

POST-CONDITION: The register located at address with be updated with value.

Parameters

[in]	address	is a register address within the SPI peripheral map.
[in]	value	is the value to set the SPI register.

Returns

void

Example

SPI_registerWrite(0x1000, 0x15);

See also

SPI_configGet

SPI_configSizeGet

SPI_Init

SPI_Transfer

SPI_RegisterWrite

SPI_RegisterRead

SPI_CallbackRegister

SPI_transfer()

void SPI_transfer

(

const SpiTransferConfig_t *const

TransferConfig

)

Description: This function is used to initialize a data transfer on the SPI bus. This function is used to send data to a slave device specified by the SpiTransferConfig_t structure, which contains the channel, size, and data.

PRE-CONDITION: The MCU clocks must be configured and enabled.
PRE-CONDITION: SPI_Init must be called with valid configuration data.
PRE-CONDITION: SpiTransferConfig_t needs to be populated.
PRE-CONDITION: The Channel is within the maximum SpiChannel_t.
PRE-CONDITION: The size is greater than 0.
PRE-CONDITION: The data is not NULL.

POST-CONDITION: Data transferred based on configuration.

Parameters

[in]

SpiTransferConfig

A pointer to a structure containing the channel, size, and data to be read.

Returns

void

Example:

uint16_t data[] = {0x56};
SpiTransferConfig_t TransferConfig =
{
    .Channel = SPI_CHANNEL1,
    .size = sizeof(data)/sizeof(data[0]),
    .data = data
};
SPI_Transfer(&TransferConfig);

See also

SPI_configGet

SPI_getConfigSize

SPI_Init

SPI_Transfer

SPI_RegisterWrite

SPI_RegisterRead

SPI_CallbackRegister
