This module contains interface definitions for the SPI configuration. This is the header file for the definition of the interface for retrieving the Serial Peripheral interface configuration table. More...

#include <stdio.h>

Include dependency graph for spi_cfg.h:

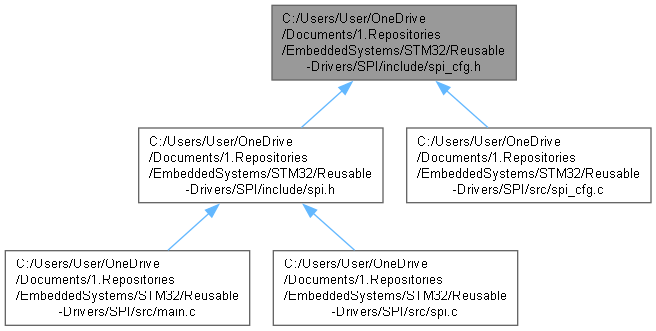

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	SpiConfig_t

Macros
#define	SPI_PORTS_NUMBER 4U

Enumerations
enum	SpiChannel_t { SPI_CHANNEL1 , SPI_CHANNEL2 , SPI_CHANNEL3 , SPI_CHANNEL4 , SPI_MAX_CHANNEL }

enum	SpiMode_t { SPI_MODE0 , SPI_MODE1 , SPI_MODE2 , SPI_MODE3 , SPI_MAX_MODE }

enum	SpiHierarchy_t { SPI_SLAVE , SPI_MASTER , SPI_MAX_HIERARCHY }

enum	SpiBaudRate_t { SPI_FPCLK2 , SPI_FPCLK4 , SPI_FPCLK8 , SPI_FPCLK16 , SPI_FPCLK32 , SPI_FPCLK64 , SPI_FPCLK128 , SPI_FPCLK256 , SPI_MAX_FPCLK }

enum	SpiSlaveSelect_t { SPI_SOFTWARE_NSS , SPI_HARDWARE_NSS_ENABLED , SPI_HARDWARE_NSS_DISABLED , SPI_MAX_NSS }

enum	SpiFrameFormat_t { SPI_MSB , SPI_LSB , SPI_MAX_FF }

enum	SpiTypeTransfer_t { SPI_FULL_DUPLEX , SPI_RECEIVE_MODE , SPI_MAX_DF }

enum	SpiDataSize_t { SPI_8BITS , SPI_16BITS , SPI_MAX_BITS }

Functions
const SpiConfig_t *const	SPI_ConfigGet (void)

size_t	SPI_configSizeGet (void)

Detailed Description

This module contains interface definitions for the SPI configuration. This is the header file for the definition of the interface for retrieving the Serial Peripheral interface configuration table.

Author: Jose Luis Figueroa

Version: 1.1

Date: 2025-03-11

Copyright: Copyright (c) 2025 Jose Luis Figueroa. MIT License.

Macro Definition Documentation

◆ SPI_PORTS_NUMBER

#define SPI_PORTS_NUMBER 4U

Defines the number of ports on the processor.

Enumeration Type Documentation

◆ SpiBaudRate_t

enum SpiBaudRate_t

Define the baud rate control.

Enumerator
SPI_FPCLK2	Baud rate divided by 2
SPI_FPCLK4	Baud rate divided by 4
SPI_FPCLK8	Baud rate divided by 8
SPI_FPCLK16	Baud rate divided by 16
SPI_FPCLK32	Baud rate divided by 32
SPI_FPCLK64	Baud rate divided by 64
SPI_FPCLK128	Baud rate divided by 128
SPI_FPCLK256	Baud rate divided by 256
SPI_MAX_FPCLK	Maximum baud rate

◆ SpiChannel_t

enum SpiChannel_t

Define the SPI channels on the MCU device. It is used to specify SPI channel to configure the register map.

Enumerator
SPI_CHANNEL1	SPI Channel 1
SPI_CHANNEL2	SPI Channel 2
SPI_CHANNEL3	SPI Channel 3
SPI_CHANNEL4	SPI Channel 4
SPI_MAX_CHANNEL	Maximum SPI Channel

◆ SpiDataSize_t

enum SpiDataSize_t

Define the data frame format. Set bits number of data.

Enumerator
SPI_8BITS	8 bits data is selected for communication
SPI_16BITS	16 bits data is selected for communication
SPI_MAX_BITS	Maximum number of bits

◆ SpiFrameFormat_t

enum SpiFrameFormat_t

Define the frame format. Choose the direction of the data frame to be sent.

Enumerator
SPI_MSB	Most significant bit transmitted first
SPI_LSB	Less significant bit transmitted first
SPI_MAX_FF	Maximum frame format

◆ SpiHierarchy_t

enum SpiHierarchy_t

Define the hierarchy of the device. Set the device as slave or master.

Enumerator
SPI_SLAVE	Slave configuration
SPI_MASTER	Master configuration
SPI_MAX_HIERARCHY	Maximum hierarchy

◆ SpiMode_t

enum SpiMode_t

Define the bus mode according to clock polarity and clock phase.

Enumerator
SPI_MODE0	Mode 0 (CPOL=0 and CPHA=0)
SPI_MODE1	Mode 1 (CPOL=0 and CPHA=1)
SPI_MODE2	Mode 2 (CPOL=1 and CPHA=0)
SPI_MODE3	Mode 3 (CPOL=1 and CPHA=1)
SPI_MAX_MODE	Maximum mode

◆ SpiSlaveSelect_t

enum SpiSlaveSelect_t

Define the slave select pin management (NSS input). The slave
selector could be configured by software or hardware. SW_NSS: Slave select is driven internally. NSS pin remains free. HW_NSS_ENABLED: Device operates in master mode (NSS pin is used). HW_NSS_DISABLED: Device operates in slave mode (NSS pin is used).

Enumerator
SPI_SOFTWARE_NSS	Software NSS pin management
SPI_HARDWARE_NSS_ENABLED	Hardware NSS pin management (Master)
SPI_HARDWARE_NSS_DISABLED	Hardware NSS pin management (slave)
SPI_MAX_NSS	Maximum NSS input

◆ SpiTypeTransfer_t

enum SpiTypeTransfer_t

Define the type of data transfer.

Enumerator
SPI_FULL_DUPLEX	Set full duplex communication
SPI_RECEIVE_MODE	Set Receive only communication
SPI_MAX_DF	Set the maximum data transfer

Function Documentation

◆ SPI_ConfigGet()

const SpiConfig_t *const SPI_ConfigGet ( void )

Description: This function is used to initialize the SPI based on the configuration table defined in spi_cfg module.

PRE-CONDITION: configuration table needs to be populated (sizeof > 0).
POST-CONDITION: A constant pointer to the first member of the configuration table will be returned.

Returns: A pointer to the configuration table.

Example:

const SpiConfig_t * const SpiConfig = SPI_ConfigGet();
size_t configSize = DIO_configSizeGet();

SPI_Init(SpiConfig, configSize);

See also: SPI_configGet; SPI_configSizeGet; SPI_Init; SPI_Transfer; SPI_RegisterWrite; SPI_RegisterRead; SPI_CallbackRegister

◆ SPI_configSizeGet()

size_t SPI_configSizeGet ( void )

Description: This function is used to get the size of the configuration table.

PRE-CONDITION: configuration table needs to be populated (sizeof > 0)

POST-CONDITION: The size of the configuration table will be returned.

Returns: The size of the configuration table.
