This module contains interface definitions for the Dio configuration. This is the header file for the definition of the interface for retrieving the digital input/output configuration table. More...

#include <stdio.h>

Include dependency graph for dio_cfg.h:

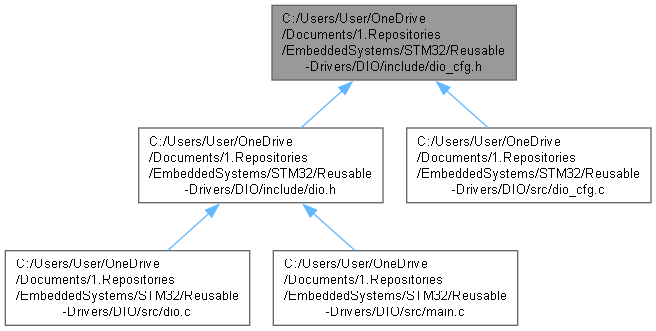

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	DioConfig_t

Macros
#define	NUMBER_OF_PORTS 5U

Enumerations
enum	DioPinState_t { DIO_LOW , DIO_HIGH , DIO_PIN_STATE_MAX }

enum	DioPort_t { DIO_PA , DIO_PB , DIO_PC , DIO_PD , DIO_PH , DIO_MAX_PORT }

enum	DioPin_t { DIO_PA0 , DIO_PA1 , DIO_PA2 , DIO_PA3 , DIO_PA4 , DIO_PA5 , DIO_PA6 , DIO_PA7 , DIO_PA8 , DIO_PA9 , DIO_PA10 , DIO_PA11 , DIO_PA12 , DIO_PA13 , DIO_PA14 , DIO_PA15 , DIO_PB0 = 0 , DIO_PB1 , DIO_PB2 , DIO_PB3 , DIO_PB4 , DIO_PB5 , DIO_PB6 , DIO_PB7 , DIO_PB8 , DIO_PB9 , DIO_PB10 , DIO_PB12 = 12 , DIO_PB13 , DIO_PB14 , DIO_PB15 , DIO_PC0 = 0 , DIO_PC1 , DIO_PC2 , DIO_PC3 , DIO_PC4 , DIO_PC5 , DIO_PC6 , DIO_PC7 , DIO_PC8 , DIO_PC9 , DIO_PC10 , DIO_PC11 , DIO_PC12 , DIO_PC13 , DIO_PC14 , DIO_PC15 , DIO_PD2 = 2 , DIO_PH0 = 0 , DIO_PH1 , DIO_MAX_PIN = 16 }

enum	DioMode_t { DIO_INPUT , DIO_OUTPUT , DIO_FUNCTION , DIO_ANALOG , DIO_MAX_MODE }

enum	DioType_t { DIO_PUSH_PULL , DIO_OPEN_DRAIN , DIO_MAX_TYPE }

enum	DioSpeed_t { DIO_LOW_SPEED , DIO_MEDIUM_SPEED , DIO_HIGH_SPEED , DIO_VERY_SPEED , DIO_MAX_SPEED }

enum	DioResistor_t { DIO_NO_RESISTOR , DIO_PULLUP , DIO_PULLDOWN , DIO_MAX_RESISTOR }

enum	DioFunction_t { DIO_AF0 , DIO_AF1 , DIO_AF2 , DIO_AF3 , DIO_AF4 , DIO_AF5 , DIO_AF6 , DIO_AF7 , DIO_AF8 , DIO_AF9 , DIO_AF10 , DIO_AF11 , DIO_AF12 , DIO_AF13 , DIO_AF14 , DIO_AF15 , DIO_MAX_FUNCTION }

Functions
const DioConfig_t *const	DIO_configGet (void)

size_t	DIO_configSizeGet (void)

Detailed Description

This module contains interface definitions for the Dio configuration. This is the header file for the definition of the interface for retrieving the digital input/output configuration table.

Author: Jose Luis Figueroa

Version: 1.1

Date: 2025-03-04

Copyright: Copyright (c) 2025 Jose Luis Figueroa. MIT License.

Macro Definition Documentation

◆ NUMBER_OF_PORTS

#define NUMBER_OF_PORTS 5U

Defines the number of ports on the processor.

Enumeration Type Documentation

◆ DioFunction_t

enum DioFunction_t

Defines the possible DIO alternate function. A multiplexer is used to select the alternate function

Enumerator
DIO_AF0	Alternate function 0
DIO_AF1	Alternate function 1
DIO_AF2	Alternate function 2
DIO_AF3	Alternate function 3
DIO_AF4	Alternate function 4
DIO_AF5	Alternate function 5
DIO_AF6	Alternate function 6
DIO_AF7	Alternate function 7
DIO_AF8	Alternate function 8
DIO_AF9	Alternate function 9
DIO_AF10	Alternate function 10
DIO_AF11	Alternate function 11
DIO_AF12	Alternate function 12
DIO_AF13	Alternate function 13
DIO_AF14	Alternate function 14
DIO_AF15	Alternate function 15
DIO_MAX_FUNCTION	Defines the maximum function value

◆ DioMode_t

enum DioMode_t

Defines the mode of the Dio pin as an input, output, alternate function and analog.

Enumerator
DIO_INPUT	Input mode
DIO_OUTPUT	General purpose Output mode
DIO_FUNCTION	Alternate function mode
DIO_ANALOG	Analog mode
DIO_MAX_MODE	Defines the maximum mode

◆ DioPin_t

enum DioPin_t

Defines all the pins contained on the MCU device. It is used to set a specific bit on the ports.

Enumerator
DIO_PA0	PA0
DIO_PA1	PA1
DIO_PA2	PA2
DIO_PA3	PA3
DIO_PA4	PA4
DIO_PA5	PA5
DIO_PA6	PA6
DIO_PA7	PA7
DIO_PA8	PA8
DIO_PA9	PA9
DIO_PA10	PA10
DIO_PA11	PA11
DIO_PA12	PA12
DIO_PA13	PA13 SWD (NC)
DIO_PA14	PA14 SWD (NC)
DIO_PA15	PA15
DIO_PB0	PB0
DIO_PB1	PB1
DIO_PB2	PB2
DIO_PB3	PB3
DIO_PB4	PB4
DIO_PB5	PB5
DIO_PB6	PB6
DIO_PB7	PB7
DIO_PB8	PB8
DIO_PB9	PB9
DIO_PB10	PB10
DIO_PB12	PB12
DIO_PB13	PB13
DIO_PB14	PB14
DIO_PB15	PB15
DIO_PC0	PC0
DIO_PC1	PC1
DIO_PC2	PC2
DIO_PC3	PC3
DIO_PC4	PC4
DIO_PC5	PC5
DIO_PC6	PC6
DIO_PC7	PC7
DIO_PC8	PC8
DIO_PC9	PC9
DIO_PC10	PC10
DIO_PC11	PC11
DIO_PC12	PC12
DIO_PC13	PC13 Push button
DIO_PC14	PC14 OSC32_IN
DIO_PC15	PC15 OSC32_OUT
DIO_PD2	PD2
DIO_PH0	PH0 OSC_IN
DIO_PH1	PH1 OSC_OUT
DIO_MAX_PIN	Defines the maximum pin value

◆ DioPinState_t

enum DioPinState_t

Defines the possible states for a digital output pin.

Enumerator
DIO_LOW	Defines digital state ground
DIO_HIGH	Defines digital state power
DIO_PIN_STATE_MAX	Defines the maximum digital state

◆ DioPort_t

enum DioPort_t

Define the ports contained on the MCU device. It is used to identify the specific port GPIO to configure the register map.

Enumerator
DIO_PA	Port A
DIO_PB	Port B
DIO_PC	Port C
DIO_PD	Port D
DIO_PH	Port H
DIO_MAX_PORT	Defines the maximum Port

◆ DioResistor_t

enum DioResistor_t

Defines the possible states of the channel pull-ups.

Enumerator
DIO_NO_RESISTOR	Used to disable the internal resistor
DIO_PULLUP	Used to enable the internal pull-up
DIO_PULLDOWN	Used to enable the internal pull-down
DIO_MAX_RESISTOR	Defines the maximum resistor value

◆ DioSpeed_t

enum DioSpeed_t

Defines the output speed settings available

Enumerator
DIO_LOW_SPEED	Low speed is configured on the pin
DIO_MEDIUM_SPEED	Medium speed is configured on the pin
DIO_HIGH_SPEED	High speed is configured on the pin
DIO_VERY_SPEED	Very speed is configured on the pin
DIO_MAX_SPEED	Defines the maximum output speed

◆ DioType_t

enum DioType_t

Define the output type of the Input/output port.

Enumerator
DIO_PUSH_PULL	Enable output push-pull
DIO_OPEN_DRAIN	Enable output open-drain
DIO_MAX_TYPE	Defines the maximum output type

Function Documentation

◆ DIO_configGet()

const DioConfig_t *const DIO_configGet ( void )

Description: This function is used to initialize the DIO based on the configuration table defined in dio_cfg module.

PRE-CONDITION: configuration table needs to be populated (sizeof > 0)

POST-CONDITION: A constant pointer to the first member of the
configuration table will be returned.

Returns: A pointer to the configuration table.

Example:

const Dio_Config_t * const DioConfig = DIO_configGet();
size_t configSize = DIO_configSizeGet();

DIO_Init(DioConfig, configSize);

See also: DIO_configGet; DIO_configSizeGet; DIO_init; DIO_channelRead; DIO_channelWrite; DIO_channelToggle; DIO_registerWrite; DIO_registerRead

◆ DIO_configSizeGet()

size_t DIO_configSizeGet ( void )

Description: This function is used to get the size of the configuration table.
