The implementation for the DIO driver. More...

#include "dio.h"

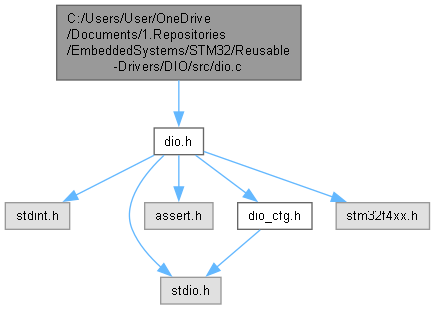

Include dependency graph for dio.c:

Functions
void	DIO_init (const DioConfig_t *const Config, size_t configSize)

DioPinState_t	DIO_pinRead (const DioPinConfig_t *const PinConfig)

void	DIO_pinWrite (const DioPinConfig_t *const PinConfig, DioPinState_t State)

void	DIO_pinToggle (const DioPinConfig_t *const PinConfig)

void	DIO_registerWrite (uint32_t address, uint32_t value)

uint32_t	DIO_registerRead (uint32_t address)

Detailed Description

The implementation for the DIO driver.

Author: Jose Luis Figueroa

Version: 1.1

Date: 2025-03-11

Copyright: Copyright (c) 2025 Jose Luis Figueroa. MIT License.

Function Documentation

◆ DIO_init()

void DIO_init	(	const DioConfig_t *const	Config,
		size_t	configSize )

Description: This function is used to initialize the DIO based on the configuration
table defined in dio_cfg module.

PRE-CONDITION: The MCU clocks must be configured and enabled.
PRE-CONDITION: Configuration table needs to be populated (sizeof > 0)
PRE-CONDITION: NUMBER_OF_PORTS > 0
PRE-CONDITION: The setting is within the maximum values (DIO_MAX).

POST-CONDITION: The DIO peripheral is set up with the configuration settings.

Parameters

[in]	Config	is a pointer to the configuration table that contains the initialization for the peripheral.
[in]	configSize	is the size of the configuration table.

Returns: void

Example:

const Dio_ConfigType_t * const DioConfig = DIO_configGet();
size_t configSize = DIO_configSizeGet();

DIO_Init(DioConfig, configSize);

See also: DIO_configGet; DIO_configSizeGet; DIO_init; DIO_pinRead; DIO_pinWrite; DIO_pinToggle; DIO_registerWrite; DIO_registerRead

◆ DIO_pinRead()

DioPinState_t DIO_pinRead ( const DioPinConfig_t *const PinConfig )

Description: This function is used to reads the state of a specified pin. This function reads the state of a digital input/output pin specified by the DioPinConfig_t structure, which contains the port and pin information.

PRE-CONDITION: The pin is configured as INPUT
PRE-CONDITION: The pin is configured as GPIO
PRE-CONDITION: DioPinConfig_t needs to be populated (sizeof > 0)
PRE-CONDITION: The Port is within the maximum DioPort_t.
PRE-CONDITION: The Pin is within the maximum DioPin_t. definition.

POST-CONDITION: The channel state is returned.

Parameters

[in] PinConfig A pointer to a structure containing the port and pin to be read.

Returns: DioPinState_t The state of the pin (high or low).

Example:

const DioPinConfig_t  UserButton1=
{
     .Port = DIO_PC,
     .Pin = DIO_PC13
};
 bool pin = DIO_pinRead(&UserButton1);

See also: DIO_ConfigGet; DIO_configSizeGet; DIO_init; DIO_pinRead; DIO_pinWrite; DIO_pinToggle; DIO_registerWrite; DIO_registerRead

◆ DIO_pinToggle()

void DIO_pinToggle ( const DioPinConfig_t *const PinConfig )

Description: This function is used to toggle the current state of a pin. This function reads the state of a digital input/output pin specified by the DioPinConfig_t structure, which contains the port and pin information.

PRE-CONDITION: The channel is configured as output
PRE-CONDITION: The channel is configured as GPIO
PRE-CONDITION: DioPinConfig_t needs to be populated (sizeof > 0)
PRE-CONDITION: The Port is within the maximum DioPort_t.
PRE-CONDITION: The Pin is within the maximum DioPin_t.

POST-CONDITION: The channel state is toggled.

Parameters

[in] pinConfig A pointer to a structure containing the port and pin to be toggled.

Returns: void

Example:

const DioPinConfig_t  UserLED1=
{
     .Port = DIO_PA,
     .Pin = DIO_PA5
};
DIO_pinToggle(&UserLED1);

See also: DIO_ConfigGet; DIO_configSizeGet; DIO_init; DIO_pinRead; DIO_pinWrite; DIO_pinToggle; DIO_registerWrite; DIO_registerRead

◆ DIO_pinWrite()

void DIO_pinWrite	(	const DioPinConfig_t *const	PinConfig,
		DioPinState_t	State )

Description: This function is used to write the state of a pin as either logic high or low. it reads the state of a digital input/output pin specified by the DioPinConfig_t structure and the DioPinState_t to define the desired state, which contains the port and pin information.

PRE-CONDITION: The pin is configured as OUTPUT
PRE-CONDITION: The pin is configured as GPIO
PRE-CONDITION: DioPinConfig_t needs to be populated (sizeof > 0)
PRE-CONDITION: The Port is within the maximum DioPort_t.
PRE-CONDITION: The Pin is within the maximum DioPin_t.
PRE-CONDITION: The State is within the maximum DioPinState_t.

POST-CONDITION: The channel state is Stated.

Parameters

[in]	pinConfig	A pointer to a structure containing the port and pin to be written.
[in]	State	is HIGH or LOW as defined in the DioPinState_t enum.

Returns: void

Example:

const DioPinConfig_t  UserLED1=
{
     .Port = DIO_PA,
     .Pin = DIO_PA5
};
const DioPinConfig_t  UserLED2=
{
     .Port = DIO_PA,
     .Pin = DIO_PA6
};
DIO_pinWrite(&UserLED1, LOW);    //Set the pin low
DIO_pinWrite(&UserLED2, HIGH);   //Set the pin high

See also: DIO_ConfigGet; DIO_configSizeGet; DIO_init; DIO_pinRead; DIO_pinWrite; DIO_pinToggle; DIO_registerWrite; DIO_registerRead

◆ DIO_registerRead()

uint32_t DIO_registerRead ( uint32_t address )

Description: This function is used to directly address a Dio register. The function should be used to access specialized functionality in the Dio peripheral that is not exposed by any other function of the interface.

PRE-CONDITION: Address is within the boundaries of the Dio register address space.

POST-CONDITION: The value stored in the register is returned to the caller.

Parameters

[in] address is the address of the Dio register to read.

Returns: The current value of the Dio register.

Example:

type dioValue = DIO_registerRead(0x1000);

DIO_registerRead

uint32_t DIO_registerRead(uint32_t address)

Definition dio.c:638

See also: DIO_ConfigGet; DIO_configSizeGet; DIO_init; DIO_pinRead; DIO_pinWrite; DIO_pinToggle; DIO_registerWrite; DIO_registerRead

◆ DIO_registerWrite()

void DIO_registerWrite	(	uint32_t	address,
		uint32_t	value )

Description: This function is used to directly address and modify a GPIO register. The function should be used to access specialized functionality in the DIO peripheral that is not exposed by any other function of the interface.

PRE-CONDITION: Address is within the boundaries of the DIO register address space.

POST-CONDITION: The register located at address with be updated with value.

Parameters

[in]	address	is a register address within the DIO peripheral map.
[in]	value	is the value to set the DIO register.

Returns: void

Example

DIO_registerWrite(0x1000, 0x15);

DIO_registerWrite

void DIO_registerWrite(uint32_t address, uint32_t value)

Definition dio.c:598

See also: DIO_ConfigGet; DIO_configSizeGet; DIO_init; DIO_pinRead; DIO_pinWrite; DIO_pinToggle; DIO_registerWrite; DIO_registerRead
