A TrackBar control in an InForm application presents the user with a draggable slider used to set a value within a range of preset values. This page provides more detailed information about TrackBar controls.

Track-bar control

Create a new Track-bar control by clicking the Track-bar icon in the Toolbox. The newly created control will be displayed in the preview window; allowing you to move it around to meet your design requirements. Edit the Track-bar properties as necessary.

Note: Track-bar properties will reflect the highlighted control selected in the preview window, enabling you to customize it as needed.

A TrackBar control presents the user with a draggable slider used to set a value between the preset minimum (Min) and maximum (Max) values.

At runtime, you can return or set the Value property

theItem% = Control(ControlID).Value
Control(ControlID).Value = n%

By setting the Interval property, you determine the number of ticks that will be displayed along the track. If you require an intermediary set of ticks, use the MinInterval property.

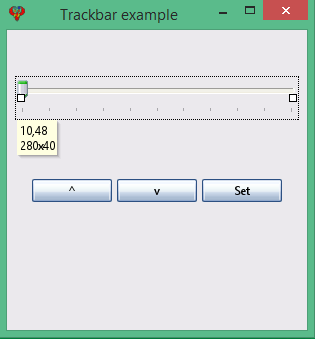

Track-bar example

Specification: Let the Track-bar example have the following design specification:

1. The TrackBar should have a range of 0 to 10.
2. Two buttons should be added to increment and decrement the TrackBar value.
3. A Set button should set the TrackBar value to 50%.

Implimenation: The following provide solutions for the above:

• Set the MIN and MAX properties of the TrackBar to 0 and 10, respectively.
• The buttons for increment, decrement, set, and the TrackBar itself should use the subroutine __UI_Click.
• For additional details, refer to the file Trackbar_example.bas.
• Save the project at the layout stage by selecting File -> Save project as and enter the name Trackbar_example.

Basic file Trackbar_example.bas

': This program uses
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------

Option _Explicit '                   <---
Dim Shared track_value As Integer '  <---

': Controls' IDs: ------------------------------------------------------------------
Dim Shared TrackbarExample As Long
Dim Shared TrackBar1 As Long
Dim Shared upBT As Long
Dim Shared downBT As Long
Dim Shared SetBT As Long

': External modules: ---------------------------------------------------------------
'$INCLUDE:'InForm\InForm.bi'
'$INCLUDE:'InForm\xp.uitheme'
'$INCLUDE:'Trackbar_example.frm'

': Event procedures: ---------------------------------------------------------------
Sub __UI_BeforeInit

End Sub

Sub __UI_OnLoad

End Sub

Sub __UI_BeforeUpdateDisplay
    'This event occurs at approximately 60 frames per second.
    'You can change the update frequency by calling SetFrameRate DesiredRate%

End Sub

Sub __UI_BeforeUnload
    'If you set __UI_UnloadSignal = False here you can
    'cancel the user's request to close.

End Sub

Sub __UI_Click (id As Long)
    Select Case id
        Case TrackbarExample

        Case TrackBar1

        Case upBT
            track_value = track_value + 1 '              <---
            If (track_value = Control(TrackBar1).Max + 1) Then track_value = Control(TrackBar1).Max
            Control(TrackBar1).Value = track_value '     <---

        Case downBT
            track_value = track_value - 1 '              <---
            If (track_value = Control(TrackBar1).Min - 1) Then track_value = Control(TrackBar1).Min
            Control(TrackBar1).Value = track_value '     <---
        Case SetBT
            track_value = Control(TrackBar1).Max / 2 '   <---
            Control(TrackBar1).Value = track_value '     <---
    End Select
End Sub

Sub __UI_MouseEnter (id As Long)
    Select Case id
        Case TrackbarExample

        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_MouseLeave (id As Long)
    Select Case id
        Case TrackbarExample

        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_FocusIn (id As Long)
    Select Case id
        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_FocusOut (id As Long)
    'This event occurs right before a control loses focus.
    'To prevent a control from losing focus, set __UI_KeepFocus = True below.
    Select Case id
        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_MouseDown (id As Long)
    Select Case id
        Case TrackbarExample

        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_MouseUp (id As Long)
    Select Case id
        Case TrackbarExample

        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_KeyPress (id As Long)
    'When this event is fired, __UI_KeyHit will contain the code of the key hit.
    'You can change it and even cancel it by making it = 0
    Select Case id
        Case TrackBar1

        Case upBT

        Case downBT

        Case SetBT

    End Select
End Sub

Sub __UI_TextChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_ValueChanged (id As Long)
    Select Case id
        Case TrackBar1
            track_value = Control(TrackBar1).Value  '   <---
    End Select
End Sub

Sub __UI_FormResized

End Sub

'$INCLUDE:'InForm/InForm.ui'

Form file Trackbar_example.frm

': This form was generated by
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
SUB __UI_LoadForm

    DIM __UI_NewID AS LONG, __UI_RegisterResult AS LONG

    __UI_NewID = __UI_NewControl(__UI_Type_Form, "TrackbarExample", 300, 300, 0, 0, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Trackbar example"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 12)
    Control(__UI_NewID).HasBorder = False

    __UI_NewID = __UI_NewControl(__UI_Type_TrackBar, "TrackBar1", 280, 40, 10, 48, 0)
    __UI_RegisterResult = 0
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).Max = 10
    Control(__UI_NewID).CanHaveFocus = True
    Control(__UI_NewID).Interval = 1

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "upBT", 80, 23, 25, 149, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "&^"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "downBT", 80, 23, 110, 149, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "v"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "SetBT", 80, 23, 195, 149, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Set"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

END SUB

SUB __UI_AssignIDs
    TrackbarExample = __UI_GetID("TrackbarExample")
    TrackBar1 = __UI_GetID("TrackBar1")
    upBT = __UI_GetID("upBT")
    downBT = __UI_GetID("downBT")
    SetBT = __UI_GetID("SetBT")
END SUB

Events

• ValueChanged
• Click
• MouseDown/MouseUp
• MouseEnter/MouseLeave
• KeyPress

Properties editable at runtime

• HasBorder
• Caption
• Top/Left/Width/Height
• Font
• Tool tip
• Color properties
• Disabled
• BackStyle
• Hidden
• Value
• Min
• Max
• Interval
• MinInterval

Methods

• LoadImage
• SetCaption
