Toolbox Toggle-Switch

In an InForm application, a Toggle switch control is ideal for settings that have an immediate effect or result. This page provides more detailed information about Toggle switch controls.

Toggle-Switch control
Toggle-Switch examples
Form file ToggleSwithExample.frm
Basic file ToggleSwithExample.bas
Events
Properties editable at runtime

Toggle-Switch control

Create a new Toggle-Switch control by clicking the Toggle-Switch icon ToolBox toggle switch in the Toolbox. The newly created control will be displayed in the preview window; allowing you to move it around to meet your design requirements. Edit the Toggle-Switch properties as necessary.

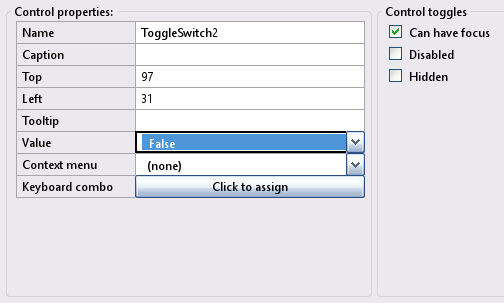

13) Toggle-Switch Properties:

Toggle-Switch examples: Preview window.

Note: Toggle-Switch properties will reflect the highlighted control selected in the preview window, enabling you to customize it as needed.

A Toggle switch control is ideal for settings that have an immediate effect or result, for example, a light switch.

Run time:

Read a Toggle switch control's current state with the .Value property (returns True or False):

state%% = Control(myToggleControlID).Value

Set a Toggle switch control's state with the .Value property. (values are True or False):

Control(myToggleControlID).Value = True or False

Toggle-Switch examples- refer to the above image

Specification: Let the Toggle-Switch examples have the following design specification:

Add two Toggle-Switches. Set swith 2 to have a yellow back ground.
Add three buttons with the captions Set, Reset, and Set color.
The Set button sets both toggle switches to a true state.
The reset button sets both toggle switches to a false state.
The Set color button. Changes Both toggle switches selected state to have a red background with a blue foreground.

Implimenation: The following provide solutions for the above:

Button click: use the subroutine __UI_Click.
Set button: use Control(myToggleControlID).Value = True for both toggle switches
Reset button use Control(myToggleControlID).Value = False for both toggle switches
Color button: use the following to change

Control(ControlID).SelectedForeColor = _RGB32(Red%, Green%, Blue%)
Control(ControlID).SelectedBackColor = _RGB32(Red%, Green%, Blue%)
Note: Force a redraw using Control(myControlID).Redraw = True

For additional details, check out the file ToggleSwithExample.bas
At the layout stage, save the project using File -> Save project as and enter the name ToggleSwithExample.

Basic file ToggleSwithExample.bas


': This program uses
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------

': Controls' IDs: ------------------------------------------------------------------
Dim Shared Form1 As Long
Dim Shared ToggleSwitch1 As Long
Dim Shared ToggleSwitch2 As Long
Dim Shared setBtn As Long
Dim Shared resetBtn As Long
Dim Shared colorBtn As Long

': External modules: ---------------------------------------------------------------
'$INCLUDE:'InForm\InForm.bi'
'$INCLUDE:'InForm\xp.uitheme'
'$INCLUDE:'ToggleSwithExample.frm'

': Event procedures: ---------------------------------------------------------------
Sub __UI_BeforeInit

End Sub

Sub __UI_OnLoad

End Sub

Sub __UI_BeforeUpdateDisplay
    'This event occurs at approximately 60 frames per second.
    'You can change the update frequency by calling SetFrameRate DesiredRate%

End Sub

Sub __UI_BeforeUnload
    'If you set __UI_UnloadSignal = False here you can
    'cancel the user's request to close.

End Sub

Sub __UI_Click (id As Long)
    Select Case id
        Case Form1

        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn
            Control(ToggleSwitch1).Value = TRUE '  <---
            Control(ToggleSwitch2).Value = TRUE '  <---
        Case resetBtn
            Control(ToggleSwitch1).Value = FALSE ' <---
            Control(ToggleSwitch2).Value = FALSE ' <---
        Case colorBtn
            Control(ToggleSwitch1).SelectedForeColor = _RGB32(0, 0, 255) ' <---
            Control(ToggleSwitch1).SelectedBackColor = _RGB32(255, 0, 0) ' <---

            Control(ToggleSwitch2).SelectedForeColor = _RGB32(0, 0, 255) ' <---
            Control(ToggleSwitch2).SelectedBackColor = _RGB32(255, 0, 0) ' <---

            'Force a redraw
            Control(ToggleSwitch1).Redraw = TRUE ' <---
            Control(ToggleSwitch2).Redraw = TRUE ' <---

    End Select
End Sub

Sub __UI_MouseEnter (id As Long)
    Select Case id
        Case Form1

        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_MouseLeave (id As Long)
    Select Case id
        Case Form1

        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_FocusIn (id As Long)
    Select Case id
        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_FocusOut (id As Long)
    'This event occurs right before a control loses focus.
    'To prevent a control from losing focus, set __UI_KeepFocus = True below.
    Select Case id
        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_MouseDown (id As Long)
    Select Case id
        Case Form1

        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_MouseUp (id As Long)
    Select Case id
        Case Form1

        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_KeyPress (id As Long)
    'When this event is fired, __UI_KeyHit will contain the code of the key hit.
    'You can change it and even cancel it by making it = 0
    Select Case id
        Case ToggleSwitch1

        Case ToggleSwitch2

        Case setBtn

        Case resetBtn

        Case colorBtn

    End Select
End Sub

Sub __UI_TextChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_ValueChanged (id As Long)
    Select Case id
        Case ToggleSwitch1

        Case ToggleSwitch2

    End Select
End Sub

Sub __UI_FormResized

End Sub

'$INCLUDE:'InForm/InForm.ui'

Form file ToggleSwithExample.frm


': This form was generated by
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
SUB __UI_LoadForm

    DIM __UI_NewID AS LONG, __UI_RegisterResult AS LONG

    __UI_NewID = __UI_NewControl(__UI_Type_Form, "Form1", 300, 300, 0, 0, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Toggle-Switch example"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 12)
    Control(__UI_NewID).HasBorder = False

    __UI_NewID = __UI_NewControl(__UI_Type_ToggleSwitch, "ToggleSwitch1", 40, 17, 31, 51, 0)
    __UI_RegisterResult = 0
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).Value = -1
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_ToggleSwitch, "ToggleSwitch2", 40, 17, 31, 97, 0)
    __UI_RegisterResult = 0
    Control(__UI_NewID).ForeColor = _RGB32(134, 0, 0)
    Control(__UI_NewID).SelectedForeColor = _RGB32(163, 223, 228)
    Control(__UI_NewID).SelectedBackColor = _RGB32(255, 255, 0)
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "setBtn", 75, 23, 14, 155, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Set"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "resetBtn", 80, 23, 108, 155, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Reset"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "colorBtn", 80, 23, 207, 155, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Set color"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

END SUB

SUB __UI_AssignIDs
    Form1 = __UI_GetID("Form1")
    ToggleSwitch1 = __UI_GetID("ToggleSwitch1")
    ToggleSwitch2 = __UI_GetID("ToggleSwitch2")
    setBtn = __UI_GetID("setBtn")
    resetBtn = __UI_GetID("resetBtn")
    colorBtn = __UI_GetID("colorBtn")
END SUB
