User A PictureBox control in an InForm application can be used to display a static image file on a form. Alternatively, you can use a PictureBox control as a drawing surface. This page provides more detailed information about PictureBox controls.

Images used on this page can be found in folder "\inform_tutorial\images\toolbox".

Picture-box control

Create a new Picture-box control by clicking the Picture-box icon in the Toolbox. The newly created control will be displayed in the preview window; allowing you to move it around to meet your design requirements. Edit the Picture-box properties as necessary.

Note: Picture-box properties will reflect the highlighted control selected in the preview window, enabling you to customize it as needed.

A PictureBox control can be used to display a static image file on a form. Alternatively, you can use a PictureBox control as a drawing surface. Additionally, a PictureBox control will maintain a loaded image's aspect ratio if resized by the corner handles.

Design time.

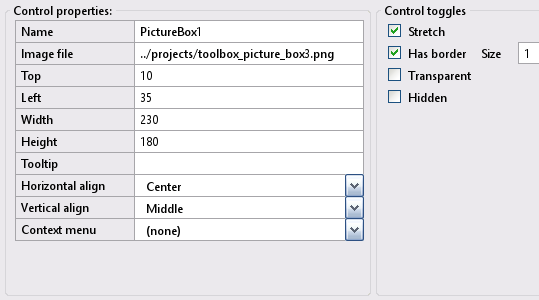

At design time, load an image by setting the "Image file" property to the image file name and its relative path.
Note: To deploy your application, you must include the image with the executable.

../projects/toolbox_picture_box3.png

Run time.
At run time, the LoadImage method is used to load a valid image file into a Picture Box control:
Note: To deploy your application, you must include the image with the executable.

LoadImage Control(ControlID), ImageFile$

If the specified ImageFile$ can't be found or isn't a valid image, an "image not found" or "invalid image file" warning is shown in the control's canvas.

To reset a control's canvas, pass an empty ImageFile$ to the LoadImage method.

LoadImage Control(ControlID), ""

Using PictureBox as a drawing surface.
Using a PictureBox as a drawing surface allows you to draw directly onto its surface using QB64pe's drawing commands:

Extract Image - direct draw to Picture box

An image can be embedded using the $Embed command. This image is extracted using its counterpart, the _Embedded$ command. A pointer to the image is obtained using the _Loadimage function. This image is directly drawn to the picture box using _PutImage between tags (BeginDraw PictureBox/EndDraw PictureBox). The _PutImage function uses the image handle provided by the _LoadImage function. An example is shown below:

$Embed:'.\toolbox_picture_box2.png','mpg2'
  Dim pic2 As Long
  pic2 = _LoadImage(_Embedded$("mpg2"), 32, "memory") 'mpg2=handle 32=bit-image   memory=buffer
  BeginDraw PictureBox1
    _PutImage , pic2
  EndDraw PictureBox1

For additional information, refer to page Icons, Images and Title.

Draw directly to the PictureBox

You directly draw to the picture box as follows:

BeginDraw PictureBox1
  Drawing code here
EndDraw PictureBox1

What BeginDraw does is set the proper _DEST, so you don't need to specify it. What EndDraw does is reset _DEST to the proper one and trigger a .Redraw (if you set the .Redraw property of a control to True, you force InForm to redraw its surface. To trigger a global redraw, __UI_ForceRedraw = True - usually rarely needed too).

An example of directly drawing to the picture box is shown below:

 LoadImage Control(PictureBox1), "" 'clear screen
 BeginDraw PictureBox1
   Cls , _RGB32(255, 255, 255)
   Line (10, 10)-(180, 10), _RGB32(255, 0, 0)
   Line (20, 20)-(220, 110), _RGB32(6, 255, 6), BF
   Line (10, 150)-(220, 170), _RGB32(6, 6, 255), BF
   Circle (100, 180), 50, _RGB32(255, 6, 255)
 EndDraw PictureBox1

Picture-box control example - refer to the above image.

Specification: Let the Picture-box control example have the following design specification:

1. Button load image 1 from disk and display in picture box.
2. If the above is not displayed, Add a button to extract image 1 from the executable file itself and save it to disk.
3. Add a button to extract image 2 from the executable and display it directly in the picture box.
4. Add a button to demonstrate directly drawing to the picture box.
5. Finally, a clear button removes images from the picture box.

Implimenation: The following provide solutions for the above:

• At design time, use metacommand $Embed to embed image 1
• At design time, set the image file property to toolbox_picture_box3.png
• Use the function _Embedded$ to extract an image from an executable.
• Use BeginDraw/EndDraw and the function _PutImage to draw an image into a picture box.
• Use BeginDraw/EndDraw and raw commands to directly draw to the picture box.
• For additional details, refer to the file picture_box_example.bas.
• Save the project at the layout stage by selecting File -> Save project as and enter the name picture_box_example.

Basic file picture_box_example.bas

': This program uses
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
Option _Explicit


$Embed:'.\toolbox_picture_box1.png','mpg1'   '  <---
$Embed:'.\toolbox_picture_box2.png','mpg2'   '  <---
$Embed:'.\toolbox_picture_box3.png','mpg3'   '  <---
$Embed:'.\toolbox_picture_box4.png','mpg4'   '  <---


Dim Shared filename As String
Dim Shared str1 As String '         file string <---

': Controls' IDs: ------------------------------------------------------------------
Dim Shared PictureBoxExample As Long
Dim Shared LoadFromDiskBT As Long
Dim Shared ExtractFromExeBT As Long
Dim Shared LoadFromExeBT As Long
Dim Shared DrawBT As Long
Dim Shared ClearBT As Long
Dim Shared Pic1LB As Long
Dim Shared Pic2LB As Long
Dim Shared PictureBox1 As Long

': External modules: ---------------------------------------------------------------
'$INCLUDE:'InForm\InForm.bi'
'$INCLUDE:'InForm\xp.uitheme'
'$INCLUDE:'picture_box_example.frm'

': Event procedures: ---------------------------------------------------------------
Sub __UI_BeforeInit

End Sub

Sub __UI_OnLoad

End Sub

Sub __UI_BeforeUpdateDisplay
    'This event occurs at approximately 60 frames per second.
    'You can change the update frequency by calling SetFrameRate DesiredRate%

End Sub

Sub __UI_BeforeUnload
    'If you set __UI_UnloadSignal = False here you can
    'cancel the user's request to close.

End Sub

Sub __UI_Click (id As Long)
    Select Case id
        Case PictureBoxExample

        Case LoadFromDiskBT '           Load image from disk and display <---
            LoadImage Control(PictureBox1), "toolbox_picture_box1.png" ' <---

        Case ExtractFromExeBT '         Extract embeded image1 and save to disk  <---
            filename = "toolbox_picture_box1.png" '                              <---
            str1 = _Embedded$("mpg1") '     set str1 to extracted embeded string <---
            Open filename For Binary As #2 'open file for binary output          <---
            Put #2, , str1 '                write data to file                   <---
            Close #2 '                      close file handle                    <---

        Case LoadFromExeBT '         Extract embeded image2 and display          <---
            Dim pic2 As Long
            pic2 = _LoadImage(_Embedded$("mpg2"), 32, "memory") 'mpg2=handle 32=bit-image   memory=buffer
            BeginDraw PictureBox1 '     <---
            '_PutImage , _LoadImage(".\pic1.jpg", 32) '/from file 'similar to this
            _PutImage , pic2 '          <---
            EndDraw PictureBox1 '       <---


        Case DrawBT
            LoadImage Control(PictureBox1), "" 'clear screen    ' <---
            BeginDraw PictureBox1 '                               <---
            Cls , _RGB32(255, 255, 255) '                         <---
            Line (10, 10)-(180, 10), _RGB32(255, 0, 0) '          <---
            Line (20, 20)-(220, 110), _RGB32(6, 255, 6), BF '     <---
            Line (10, 150)-(220, 170), _RGB32(6, 6, 255), BF '     <---
            Circle (100, 180), 50, _RGB32(255, 6, 255) '          <---
            EndDraw PictureBox1 '                                 <---


        Case ClearBT
            LoadImage Control(PictureBox1), "" '<---

        Case Pic1LB

        Case Pic2LB

        Case PictureBox1

    End Select
End Sub

Sub __UI_MouseEnter (id As Long)
    Select Case id
        Case PictureBoxExample

        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

        Case Pic1LB

        Case Pic2LB

        Case PictureBox1

    End Select
End Sub

Sub __UI_MouseLeave (id As Long)
    Select Case id
        Case PictureBoxExample

        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

        Case Pic1LB

        Case Pic2LB

        Case PictureBox1

    End Select
End Sub

Sub __UI_FocusIn (id As Long)
    Select Case id
        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

    End Select
End Sub

Sub __UI_FocusOut (id As Long)
    'This event occurs right before a control loses focus.
    'To prevent a control from losing focus, set __UI_KeepFocus = True below.
    Select Case id
        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

    End Select
End Sub

Sub __UI_MouseDown (id As Long)
    Select Case id
        Case PictureBoxExample

        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

        Case Pic1LB

        Case Pic2LB

        Case PictureBox1

    End Select
End Sub

Sub __UI_MouseUp (id As Long)
    Select Case id
        Case PictureBoxExample

        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

        Case Pic1LB

        Case Pic2LB

        Case PictureBox1

    End Select
End Sub

Sub __UI_KeyPress (id As Long)
    'When this event is fired, __UI_KeyHit will contain the code of the key hit.
    'You can change it and even cancel it by making it = 0
    Select Case id
        Case LoadFromDiskBT

        Case ExtractFromExeBT

        Case LoadFromExeBT

        Case DrawBT

        Case ClearBT

    End Select
End Sub

Sub __UI_TextChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_ValueChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_FormResized

End Sub

'$INCLUDE:'InForm/InForm.ui'

Form file picture_box_example.frm

': This form was generated by
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
SUB __UI_LoadForm

    DIM __UI_NewID AS LONG, __UI_RegisterResult AS LONG

    __UI_NewID = __UI_NewControl(__UI_Type_Form, "PictureBoxExample", 300, 300, 0, 0, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Picture Box Example"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 12)
    Control(__UI_NewID).HasBorder = False

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "LoadFromDiskBT", 100, 23, 10, 230, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Load from disk"
    ToolTip(__UI_NewID) = "Load Pic1 from disk and display"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "ExtractFromExeBT", 100, 23, 10, 268, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Extract from exe"
    ToolTip(__UI_NewID) = "Extract Pic1 from exe and save to disk"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "LoadFromExeBT", 100, 23, 115, 230, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Load from exe"
    ToolTip(__UI_NewID) = "Extract Pic2 from exe and display"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "DrawBT", 60, 23, 220, 230, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Draw"
    ToolTip(__UI_NewID) = "Draw directely to picture box"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "ClearBT", 60, 23, 220, 268, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Clear"
    ToolTip(__UI_NewID) = "Clear picture box"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "Pic1LB", 100, 23, 31, 202, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Pic1"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).VAlign = __UI_Middle

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "Pic2LB", 92, 23, 136, 202, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Pic2"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).VAlign = __UI_Middle

    __UI_NewID = __UI_NewControl(__UI_Type_PictureBox, "PictureBox1", 230, 180, 35, 10, 0)
    __UI_RegisterResult = 0
    LoadImage Control(__UI_NewID), "../projects/toolbox_picture_box3.png"
    Control(__UI_NewID).Stretch = True
    Control(__UI_NewID).HasBorder = True
    Control(__UI_NewID).Align = __UI_Center
    Control(__UI_NewID).VAlign = __UI_Middle
    Control(__UI_NewID).BorderSize = 1

END SUB

SUB __UI_AssignIDs
    PictureBoxExample = __UI_GetID("PictureBoxExample")
    LoadFromDiskBT = __UI_GetID("LoadFromDiskBT")
    ExtractFromExeBT = __UI_GetID("ExtractFromExeBT")
    LoadFromExeBT = __UI_GetID("LoadFromExeBT")
    DrawBT = __UI_GetID("DrawBT")
    ClearBT = __UI_GetID("ClearBT")
    Pic1LB = __UI_GetID("Pic1LB")
    Pic2LB = __UI_GetID("Pic2LB")
    PictureBox1 = __UI_GetID("PictureBox1")
END SUB

Events

• Click
• MouseDown/MouseUp
• MouseEnter/MouseLeave

Methods

• LoadImage
• SetCaption

Properties editable at runtime

• Top/Left/Width/Height
• Tool tip
• Hidden

See also:

• MessageBox Function
