Toolbox Label

Labels in an InForm application are used for displaying information to the user.

Label control
Label example
Basic file LabelExample.bas
Form file LabelExample.frm
Events
Methods
Properties editable at runtime

Label control

Create a new Label control by clicking the Label icon ToolBox label in the Toolbox. The newly created control will be displayed in the preview window; allowing you to move it around to meet your design requirements. Edit the Label properties as necessary.

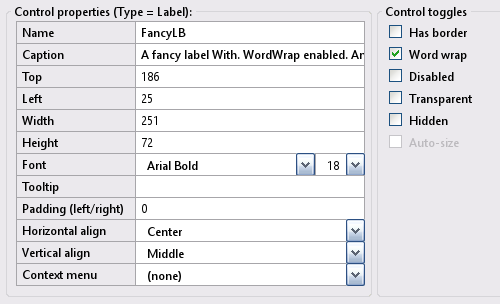

2) Label Properties:

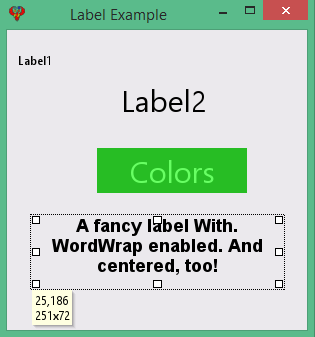

Label example: Preview window.

Note: Label properties will reflect the highlighted control selected in the preview window, enabling you to customize it as needed.

Design time:
At design time, labels are automatically resized when you change their captions or fonts.

If you set the WordWrap property to True, you can enter multiple lines by adding a line break with the escape code \n in the Editor.

Runtime:
At runtime, you can use CHR$(10) as a line break character, or even \n if you use the SetCaption method. Here's an example of runtime code:

  Control(Label1).Height = 80
  Control(Label1).AutoSize = TRUE
  Control(Label1).WordWrap = TRUE
  SetCaption Label1, "Line example" + Chr$(10) + "Next line.\n Another line!"
  SetCaption Label1, "" 'clear label

Label example

Specification: Specification for the label example:

Colors-label hover (ColorsLB): Change the background to black and the foreground to white when hovered over; restore the original colors when the mouse exits.
Change the fancy label (FancyLB) text when hovered, demonstrating the use of CHR$(10) and \n for line breaks.

Implimenation: The following provide solutions for the specifications outlined above:

For the hover effect, utilize the subroutines __UI_MouseEnter and __UI_MouseLeave.
To change colors, use Control(ID).ForeColor and Control(ID).BackColor.
For additional details, refer to LabelExample.bas.
At the layout stage, save the project using File -> Save Project As and enter the name LabelExample.

Basic file LabelExample.bas


Option _Explicit
': This program uses
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------

': User variables
Dim Shared original_ForeColor As _Unsigned Long '<---
Dim Shared original_BackColor As _Unsigned Long '<---


': Controls' IDs: ------------------------------------------------------------------
Dim Shared Label1 As Long
Dim Shared Label2 As Long
Dim Shared ColorsLB As Long
Dim Shared FancyLB As Long
Dim Shared LabelExample As Long

': External modules: ---------------------------------------------------------------
'$INCLUDE:'InForm\InForm.bi'
'$INCLUDE:'InForm\xp.uitheme'
'$INCLUDE:'LabelExample.frm'

': Event procedures: ---------------------------------------------------------------
Sub __UI_BeforeInit

End Sub

Sub __UI_OnLoad

End Sub

Sub __UI_BeforeUpdateDisplay
    'This event occurs at approximately 60 frames per second.
    'You can change the update frequency by calling SetFrameRate DesiredRate%

End Sub

Sub __UI_BeforeUnload
    'If you set __UI_UnloadSignal = False here you can
    'cancel the user's request to close.

End Sub

Sub __UI_Click (id As Long)
    Select Case id
        Case Label1

        Case Label2

        Case ColorsLB

        Case FancyLB

        Case LabelExample

    End Select
End Sub

Sub __UI_MouseEnter (id As Long)
    Select Case id
        Case Label1

        Case Label2

        Case ColorsLB
            original_ForeColor = Control(id).ForeColor '   <---
            original_BackColor = Control(id).BackColor '   <---
            Control(id).ForeColor = _RGB32(255, 255, 255) '<---
            Control(id).BackColor = _RGB32(0, 0, 0) '      <---
        Case FancyLB
            SetCaption FancyLB, "That has removed" + Chr$(10) + " the fancy label! \n Well fancy that!" '<---
        Case LabelExample

    End Select
End Sub

Sub __UI_MouseLeave (id As Long)
    Select Case id
        Case Label1

        Case Label2

        Case ColorsLB
            Control(id).ForeColor = original_ForeColor '<---
            Control(id).BackColor = original_BackColor '<---

        Case FancyLB

        Case LabelExample

    End Select
End Sub

Sub __UI_FocusIn (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_FocusOut (id As Long)
    'This event occurs right before a control loses focus.
    'To prevent a control from losing focus, set __UI_KeepFocus = True below.
    Select Case id
    End Select
End Sub

Sub __UI_MouseDown (id As Long)
    Select Case id
        Case Label1

        Case Label2

        Case ColorsLB

        Case FancyLB

        Case LabelExample

    End Select
End Sub

Sub __UI_MouseUp (id As Long)
    Select Case id
        Case Label1

        Case Label2

        Case ColorsLB

        Case FancyLB

        Case LabelExample

    End Select
End Sub

Sub __UI_KeyPress (id As Long)
    'When this event is fired, __UI_KeyHit will contain the code of the key hit.
    'You can change it and even cancel it by making it = 0
    Select Case id
    End Select
End Sub

Sub __UI_TextChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_ValueChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_FormResized

End Sub

'$INCLUDE:'InForm/InForm.ui'

Form file LabelExample.frm


': This form was generated by
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
SUB __UI_LoadForm

    DIM __UI_NewID AS LONG, __UI_RegisterResult AS LONG

    __UI_NewID = __UI_NewControl(__UI_Type_Form, "LabelExample", 300, 300, 0, 0, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Label Example"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 12)
    Control(__UI_NewID).HasBorder = False

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "Label1", 150, 23, 11, 19, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Label1"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).VAlign = __UI_Middle

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "Label2", 150, 45, 90, 47, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Label2"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 30)
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).VAlign = __UI_Middle

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "ColorsLB", 150, 45, 90, 118, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Colors"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 30)
    Control(__UI_NewID).ForeColor = _RGB32(104, 255, 100)
    Control(__UI_NewID).BackColor = _RGB32(39, 189, 36)
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).Align = __UI_Center
    Control(__UI_NewID).VAlign = __UI_Middle

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "FancyLB", 251, 72, 25, 186, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "A fancy label With. WordWrap enabled. And centered, too!"
    Control(__UI_NewID).Font = SetFont("arialbd.ttf", 18)
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).Align = __UI_Center
    Control(__UI_NewID).VAlign = __UI_Middle
    Control(__UI_NewID).WordWrap = True

END SUB

SUB __UI_AssignIDs
    LabelExample = __UI_GetID("LabelExample")
    Label1 = __UI_GetID("Label1")
    Label2 = __UI_GetID("Label2")
    ColorsLB = __UI_GetID("ColorsLB")
    FancyLB = __UI_GetID("FancyLB")
END SUB

Events

Methods

SetCaption
