Toolbox Frame

A Frame control in an InForm application serves as a container for other controls. This page provides more detailed information about Frame controls

Frame control

Create a new Frame control by clicking the Frame icon ToolBox frame in the Toolbox. The newly created control will be displayed in the preview window; allowing you to move it around to meet your design requirements. Edit the Frame properties as necessary.

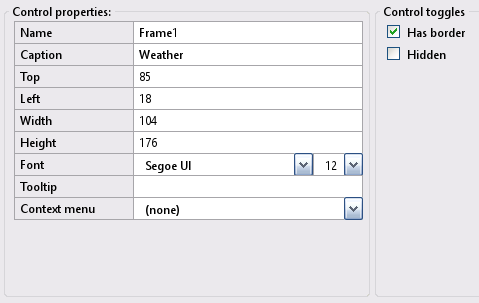

12) Frame Properties:

Frame

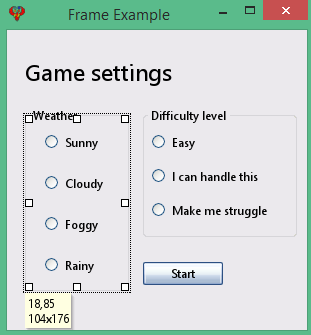

Frame example: Preview window.

Frame

Note: Frame box properties will reflect the highlighted control selected in the preview window, enabling you to customize it as needed.

A Frame control serves as a container for other controls.

Design time:
At design time, drag controls into a frame, and they will be automatically grouped. You can select a frame and insert a control from the Toolbox. Additionally, you can use cut, copy, and paste controls into a selected frame.

Frame examples - refer to the above image.

Specification: Let the frame examples have the following design specification:

  1. Add two groups, one containing four radio buttons and the other three radio buttons.
  2. Label the groups and radio buttons as shown.
  3. The start button displays a pop-up displaying radio buttons selected.
  4. At start-up, select the first radio button in each group (you could have done this at design time).

Implimenation: The following provide solutions for the above:

SetRadioButtonValue ControlID

Basic file FrameExample.bas


': This program uses
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------

Option _Explicit '                         <---
Dim Shared weatherSelected As String '     <---
Dim Shared difficultySelected As String '  <---
Dim Shared resultStr As String '           <---

': Controls' IDs: ------------------------------------------------------------------
Dim Shared Form1 As Long
Dim Shared sunnyRB As Long
Dim Shared cloudyRB As Long
Dim Shared foggyRB As Long
Dim Shared rainyRB As Long
Dim Shared easyRB As Long
Dim Shared IcanHandleRB As Long
Dim Shared struggleRB As Long
Dim Shared Frame1 As Long
Dim Shared Frame2 As Long
Dim Shared startBT As Long
Dim Shared Label1 As Long

': External modules: ---------------------------------------------------------------
'$INCLUDE:'InForm\InForm.bi'
'$INCLUDE:'InForm\xp.uitheme'
'$INCLUDE:'FrameExample.frm'

': Event procedures: ---------------------------------------------------------------
Sub __UI_BeforeInit

End Sub

Sub __UI_OnLoad
    SetRadioButtonValue sunnyRB ' <---
    SetRadioButtonValue easyRB '  <---

End Sub

Sub __UI_BeforeUpdateDisplay
    'This event occurs at approximately 60 frames per second.
    'You can change the update frequency by calling SetFrameRate DesiredRate%

End Sub

Sub __UI_BeforeUnload
    'If you set __UI_UnloadSignal = False here you can
    'cancel the user's request to close.

End Sub

Sub __UI_Click (id As Long)
    Select Case id
        Case Form1

        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case Frame1

        Case Frame2

        Case startBT
            resultStr = "Weather selected    = " + weatherSelected + Chr$(10) '       <---
            resultStr = resultStr + "Difficulty selected   = " + difficultySelected ' <---
            _MessageBox "Frame test", resultStr '                                     <---

        Case Label1

    End Select
End Sub

Sub __UI_MouseEnter (id As Long)
    Select Case id
        Case Form1

        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case Frame1

        Case Frame2

        Case startBT

        Case Label1

    End Select
End Sub

Sub __UI_MouseLeave (id As Long)
    Select Case id
        Case Form1

        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case Frame1

        Case Frame2

        Case startBT

        Case Label1

    End Select
End Sub

Sub __UI_FocusIn (id As Long)
    Select Case id
        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case startBT

    End Select
End Sub

Sub __UI_FocusOut (id As Long)
    'This event occurs right before a control loses focus.
    'To prevent a control from losing focus, set __UI_KeepFocus = True below.
    Select Case id
        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case startBT

    End Select
End Sub

Sub __UI_MouseDown (id As Long)
    Select Case id
        Case Form1

        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case Frame1

        Case Frame2

        Case startBT

        Case Label1

    End Select
End Sub

Sub __UI_MouseUp (id As Long)
    Select Case id
        Case Form1

        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case Frame1

        Case Frame2

        Case startBT

        Case Label1

    End Select
End Sub

Sub __UI_KeyPress (id As Long)
    'When this event is fired, __UI_KeyHit will contain the code of the key hit.
    'You can change it and even cancel it by making it = 0
    Select Case id
        Case sunnyRB

        Case cloudyRB

        Case foggyRB

        Case rainyRB

        Case easyRB

        Case IcanHandleRB

        Case struggleRB

        Case startBT

    End Select
End Sub

Sub __UI_TextChanged (id As Long)
    Select Case id
    End Select
End Sub



Sub __UI_ValueChanged (id As Long)
    Select Case id
        Case sunnyRB
            weatherSelected = "Sunny" ' <---
        Case cloudyRB
            weatherSelected = "Cloudy"
        Case foggyRB
            weatherSelected = "Foggy"
        Case rainyRB
            weatherSelected = "Rainy"
        Case easyRB
            difficultySelected = "Easy"
        Case IcanHandleRB
            difficultySelected = "I can handle this"
        Case struggleRB
            difficultySelected = "Make me struggle"
    End Select
End Sub

Sub __UI_FormResized

End Sub

'$INCLUDE:'InForm/InForm.ui'


Form file FrameExample.frm


': This form was generated by
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
SUB __UI_LoadForm

    DIM __UI_NewID AS LONG, __UI_RegisterResult AS LONG

    __UI_NewID = __UI_NewControl(__UI_Type_Form, "Form1", 300, 300, 0, 0, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Frame Example"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 12)
    Control(__UI_NewID).HasBorder = False

    __UI_NewID = __UI_NewControl(__UI_Type_Frame, "Frame1", 104, 176, 18, 85, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Weather"
    Control(__UI_NewID).HasBorder = True
    Control(__UI_NewID).BorderSize = 1

    __UI_NewID = __UI_NewControl(__UI_Type_Frame, "Frame2", 154, 122, 136, 85, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Difficulty level"
    Control(__UI_NewID).HasBorder = True
    Control(__UI_NewID).BorderSize = 1

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "sunnyRB", 77, 23, 20, 15, __UI_GetID("Frame1"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Sunny"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "cloudyRB", 77, 23, 20, 56, __UI_GetID("Frame1"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Cloudy"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "foggyRB", 77, 23, 20, 97, __UI_GetID("Frame1"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Foggy"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "rainyRB", 77, 23, 20, 138, __UI_GetID("Frame1"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Rainy"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "easyRB", 124, 23, 9, 15, __UI_GetID("Frame2"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Easy"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "IcanHandleRB", 125, 23, 9, 49, __UI_GetID("Frame2"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "I can handle this"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_RadioButton, "struggleRB", 125, 23, 9, 83, __UI_GetID("Frame2"))
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Make me struggle"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "startBT", 80, 23, 136, 232, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Start"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Label, "Label1", 150, 36, 18, 24, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Game settings"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 23)
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).VAlign = __UI_Middle

END SUB

SUB __UI_AssignIDs
    Form1 = __UI_GetID("Form1")
    sunnyRB = __UI_GetID("sunnyRB")
    cloudyRB = __UI_GetID("cloudyRB")
    foggyRB = __UI_GetID("foggyRB")
    rainyRB = __UI_GetID("rainyRB")
    easyRB = __UI_GetID("easyRB")
    IcanHandleRB = __UI_GetID("IcanHandleRB")
    struggleRB = __UI_GetID("struggleRB")
    Frame1 = __UI_GetID("Frame1")
    Frame2 = __UI_GetID("Frame2")
    startBT = __UI_GetID("startBT")
    Label1 = __UI_GetID("Label1")
END SUB
