# Roadmap

- How do we estimate a treatment effect when the treated and control groups do not (counterfactually) look the same in the cross-section?
- What is the mortality cost of lead?

---

# Difference-in-differences

---

# Our comparisons so far

So far we've made two kinds of comparisons to estimate treatment effects:

1. Comparing two groups with random assignment to treatment .hi[(RCT)]
--

2. Comparing two groups where there is a local discontinuity (i.e. discrete change) in policy .hi[(regression discontinuity)]

In both of these we are comparing groups in the .hi-blue[cross-section]: there is no concept of time, before and after a policy was enacted, etc

---

# Our comparisons so far

The key assumption for these comparisons is that
--
the treated group would have looked the same as the control group (i.e. had the same outcomes) in the absence of treatment

This assumption is often hard to defend1

.footnote[
One way people show that this tends to not be true is to throw in a bunch of extra controls into the regression, if this affects your estimates it indicates there's likely a problem with the assumption.
]

Let's try to relax this assumption by exploiting .hi-blue[temporal comparisons] in addition to the cross-sectional comparison

---

# Difference-in-differences

One way to describe our comparisons thus far is as .hi-red[differences]

The estimated effect of a policy is simply the difference in expected outcomes between treated and control groups:
`$$\delta = E[Y^1|D=1] - E[Y^0|D=0]$$`

It's exactly that for an RCT since `$D$` was randomly assigned, and its the difference in conditional expectations (conditional on being around the threshold) for RDD

---

# Difference-in-differences

Our next method is called .hi-blue[difference-in-differences] (DD)

What DD does is take the difference of two comparisons in three steps:
--

1. Take the difference in mean outcomes between treated and control .hi-red[before] treatment
--

2. Take the difference in mean outcomes between treated and control .hi-red[after] treatment
--

3. Take the difference between 1 and 2

The name comes from the fact that we are taking the difference (3) between two differences (1 and 2)

---

# Difference-in-differences

Why do we use DD?

The identifying assumption required is less strict than for difference approaches

.hi[**DD assumption:**] the treatment and control group would have followed .hi-blue[parallel trends] in the absence of treatment
- i.e. the difference in outcomes would have remained constant

This is much less stringent than requiring the outcomes to have been the same in the absence of treatment

---

# Difference-in-differences

.hi-red[Example:] Suppose we want to understand the effect of a conservation policy passed in New York on biodiversity

Suppose also that:
- The effect of the New York policy is given by .hi[B]
--

- Each state has it's own fixed determinants of biodiversity (e.g. land cover, average temperature, etc) given by .hi[NY, PA, MA, etc]
--

- Each period has it's own determinants of biodiversity, common across all states (e.g. federal policy, global climate change) given by .hi[T0, T1], where 0 is years before the policy is passed, and 1 is after

---

# Difference-in-differences

When we observe data on biodiversity we see the combination of all determinants: .hi[B + NY + T], not just .hi[B]

We want to find a way to recover **only** .hi[E[B]]

There are two ways you could think about trying to estimate .hi[B] using differences:

1. Compare New York to another state after the policy is passed
--

2. Compare New York to itself, before and after the policy is passed

---

# The cross-sectional difference

Let's compare New York to another state, Pennsylvania

If we were to do this with differences we would get an estimate of .hi[B] given by:
<center>
 .hi[(B + NY + T1) - (PA + T1) = B + NY - PA]
</center>

This is not .hi[B]!

Why?

---

# The cross-sectional difference

There are other determinants of biodiversity that are different across New York and Pennsylvania that are .hi-blue[not] the policy: landcover, urbanization, pollution, etc

If we take a simple difference across states, we can't disentangle whether the difference is due to the policy .hi[B] or differences in these other factors .hi[NY - PA]

---

# The time series difference

The next logical thing to try to circumvent this problem is to compare New York to itself, before .hi[NY + T0] and after .hi[B + NY + T1] the policy

This is not .hi[B]!

Why?

---

# The time series difference

There are other determinants of biodiversity that are different before and after the policy that are .hi-blue[not] the New York policy: federal policy changes, trends in urbanization and pollution

If we take a simple difference over time, we can't disentangle whether the difference is due to the policy .hi[B] or differences in other factors that are changing over time .hi[T1 - T0]

---

# Difference-in-differences

With DD we .hi-blue[combine] these two differences

We take the time series differences for NY and PA:

Next, difference the time series differences to get the DD1

---

# Difference-in-differences

| | After | Before | Time Series Difference |
|:------------:|:-------------------:|:--------------------------:|:-----------------------------------------------------------------------------------:|
| New York | B + NY + T1 | NY + T0 | (B + NY + T1) - (B + NY + T1) = .hi[B + T1 - T0] |
| Pennsylvania | PA + T1 | PA + T0 | (PA + T1) - (PA + T0) = .hi[T1 - T0] |
| | | | |
| | | | |
| | | Difference-in-differences: | .hi[(B + T1 - T0) - (T1 - T0) = B ] |

The time series differences lets us control for all fixed determinants within a state (.hi[NY])

The cross-sectional difference lets us control for all period-specific determinants common across all states (.hi[T1])

Combining these two differences addresses both and lets us recover .hi[B], the true effect of the policy!

---

# Difference-in-differences

Note that DD is not magic

It only can address determinants of biodiversity that are either:

1. Time-invariant
--

2. Time-varying, but common across all states

If there is a determinant of biodiversity that is varying over time, and differentially across states, DD will fail to correctly estimate .hi[B]
- State climate trends, state pollution trends, etc

---

# Difference-in-differences

Suppose that there is another determinant of biodiversity .hi[CNY1, CNY0] that only occurs in New York and varies over time
- e.g. climate in New York relative to Pennsylvania

Our DD is then

---

# Difference-in-differences

| | After | Before | Time Series Difference |
|:------------:|:-------------------:|:--------------------------:|:-----------------------------------------------------------------------------------:|
| New York | B + NY + T1 + CNY1 + CNY0 | NY + T0 | (B + NY + T1) - (B + NY + T1) = .hi[B + T1 - T0 + CNY1- CNY0] |
| Pennsylvania | PA + T1 | PA + T0 | (PA + T1) - (PA + T0) = .hi[T1 - T0] |
| | | | |
| | | | |
| | | Difference-in-differences: | .hi[(B + T1 - T0) - (T1 - T0) = B + CNY1- CNY0 ] |

DD cannot isolate the effect of .hi[B] versus .hi[CNY1- CNY0]

There cannot be any (uncontrolled for) time varying differences between NY and PA if we want to correctly estimate .hi[B]

---

# Difference-in-differences: to the data

Now lets see how this works in practice: [notebook here](https://raw.githack.com/irudik/aem6510/master/lecture-notes/13-health-dd/13-health-dd-notebook.html)

What we are going to do is create a fake dataset where we .hi-blue[know the true value of what we want to estimate]

This is a good skill to practice to make sure you understand methods and that your code works correctly

---
exclude: true

```
## Joining, by = "period"
```

```
## Joining, by = "state"
```

---

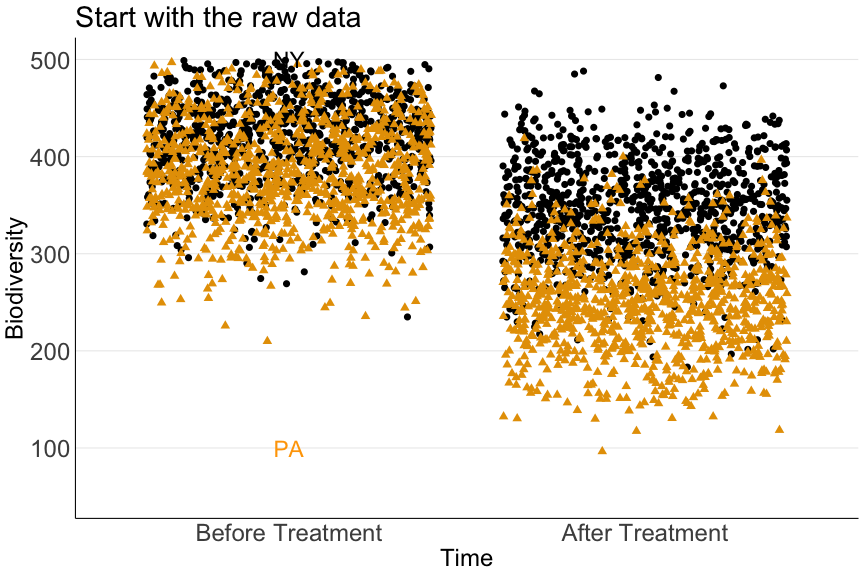

# DD step 1

![](13-health-dd_files/figure-html/dd1-1.png)

---

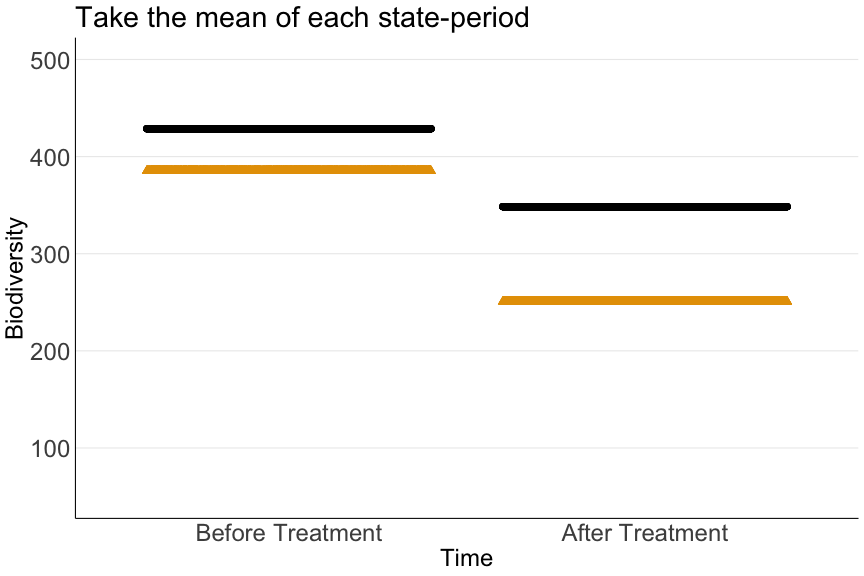

# DD step 2

![](13-health-dd_files/figure-html/dd2-1.png)

---

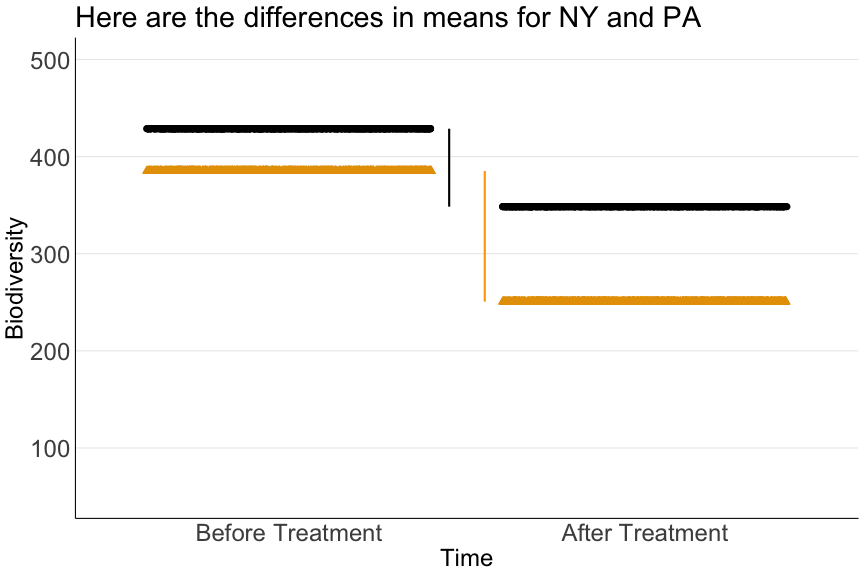

# DD step 3

![](13-health-dd_files/figure-html/dd3-1.png)

---

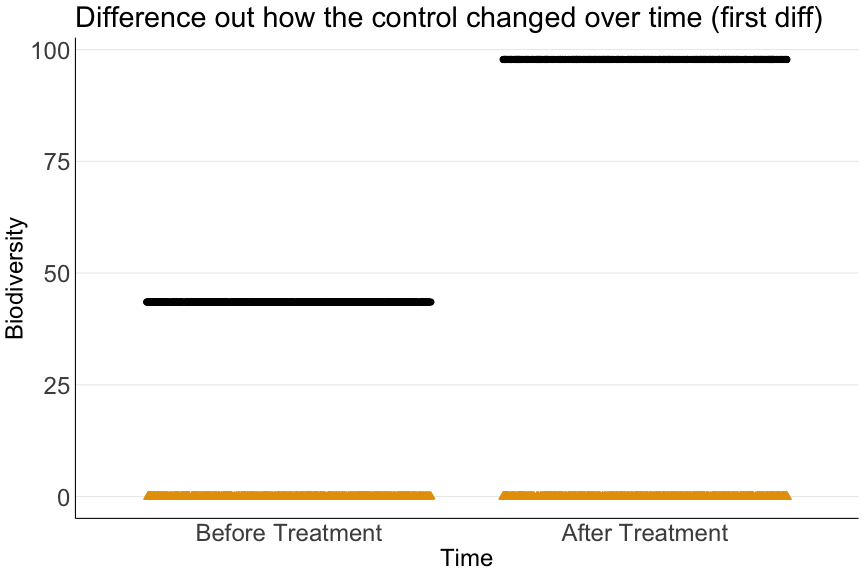

# DD step 4

![](13-health-dd_files/figure-html/dd4-1.png)

---

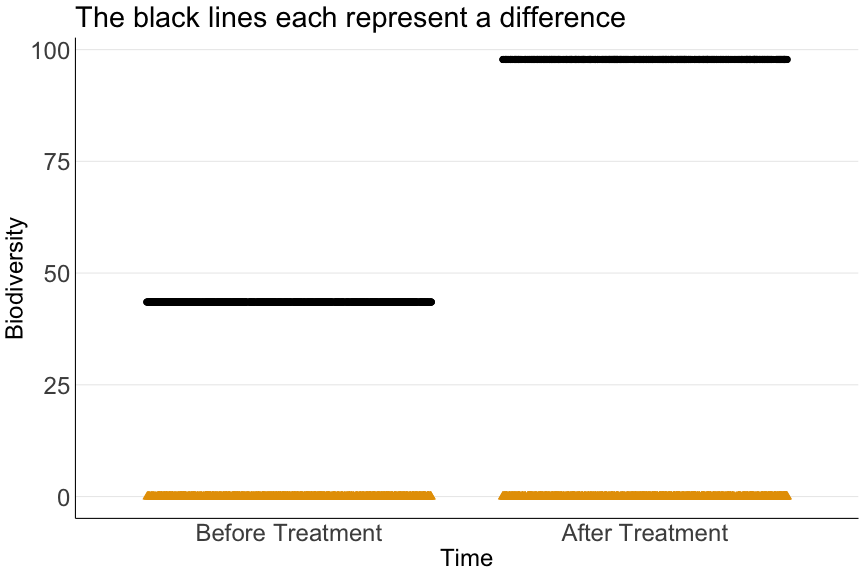

# DD step 5

![](13-health-dd_files/figure-html/dd5-1.png)

---

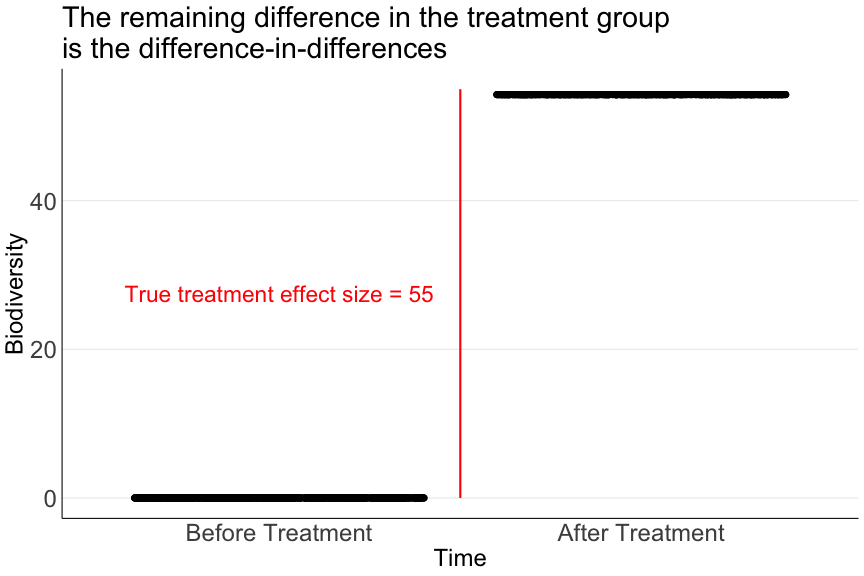

# DD step 6

![](13-health-dd_files/figure-html/dd6-1.png)

---

# The effect of leaded gasoline on elderly mortality: Evidence from regulatory exemptions

---

# What is the paper about?

What is Hollingsworth and Rudik (2021) (.blue[HR]) about?

HR aims to estimate the .hi-red[causal] effect of lead on mortality

Why is this important? We know lead is bad

1. There is little causal evidence for any effects of lead
--

2. Almost zero causal evidence for effects of lead on adults in any way
--

3. Having an accurate measure of effects/costs is vital for policymaking

---

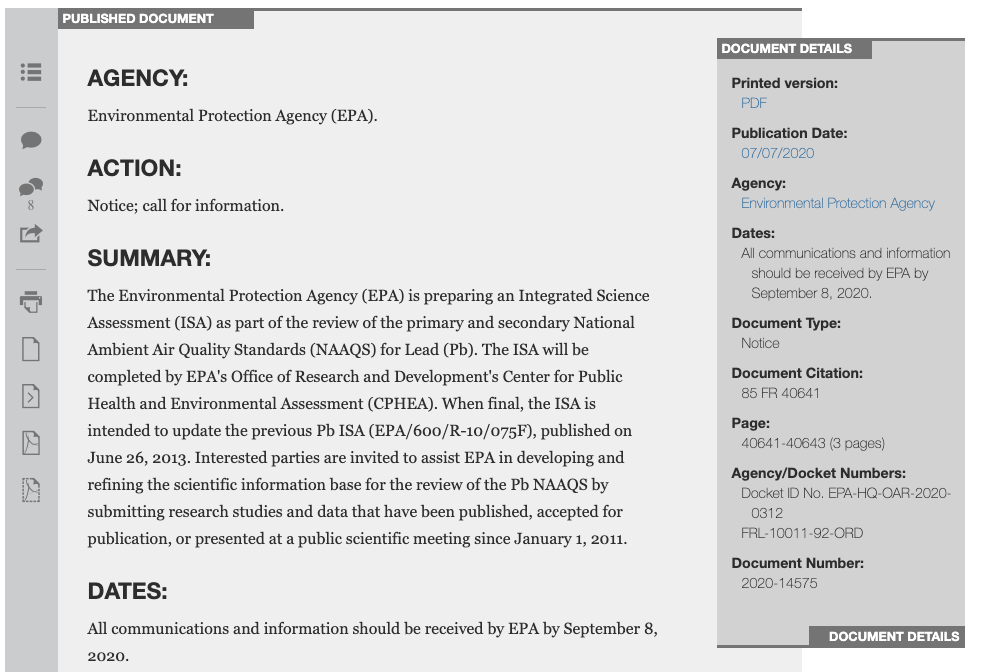

# Environmental research directly affects policy!

![federal_register](figures/federal_register.png)

---

# How does the paper do it?

HR estimates the causal effect of lead by exploiting a .hi-blue[quasi-experiment]

> a quasi-experiment is a real world occurance that approximates an actual RCT; quasi-experiments are also called natural experiments

Randomly assigning lead exposure to different groups is unethical, but we can learn from situations where real world exposure was *as good as random*

The quasi-experiment HR exploits is the sudden removal of lead from racing gasoline in 2007

Places that happened to have racetracks in 2007 had a significant decrease in lead emissions relative to places without racetracks

---

# How does the paper do it?

Here's the 2x2 DD table

We are comparing areas .hi[close] vs far from racetracks, before vs after deleading in 2007

---

# How does the paper do it?

Here's the 2x2 DD table

We are comparing areas close vs .hi[far] from racetracks, before vs after deleading in 2007

---

# How does the paper do it?

Here's the 2x2 DD table

We are comparing areas close vs far from racetracks, .hi[before] vs after deleading in 2007

---

# How does the paper do it?

Here's the 2x2 DD table

We are comparing areas close vs far from racetracks, before vs .hi[after] deleading in 2007

---

# How does the paper do it?

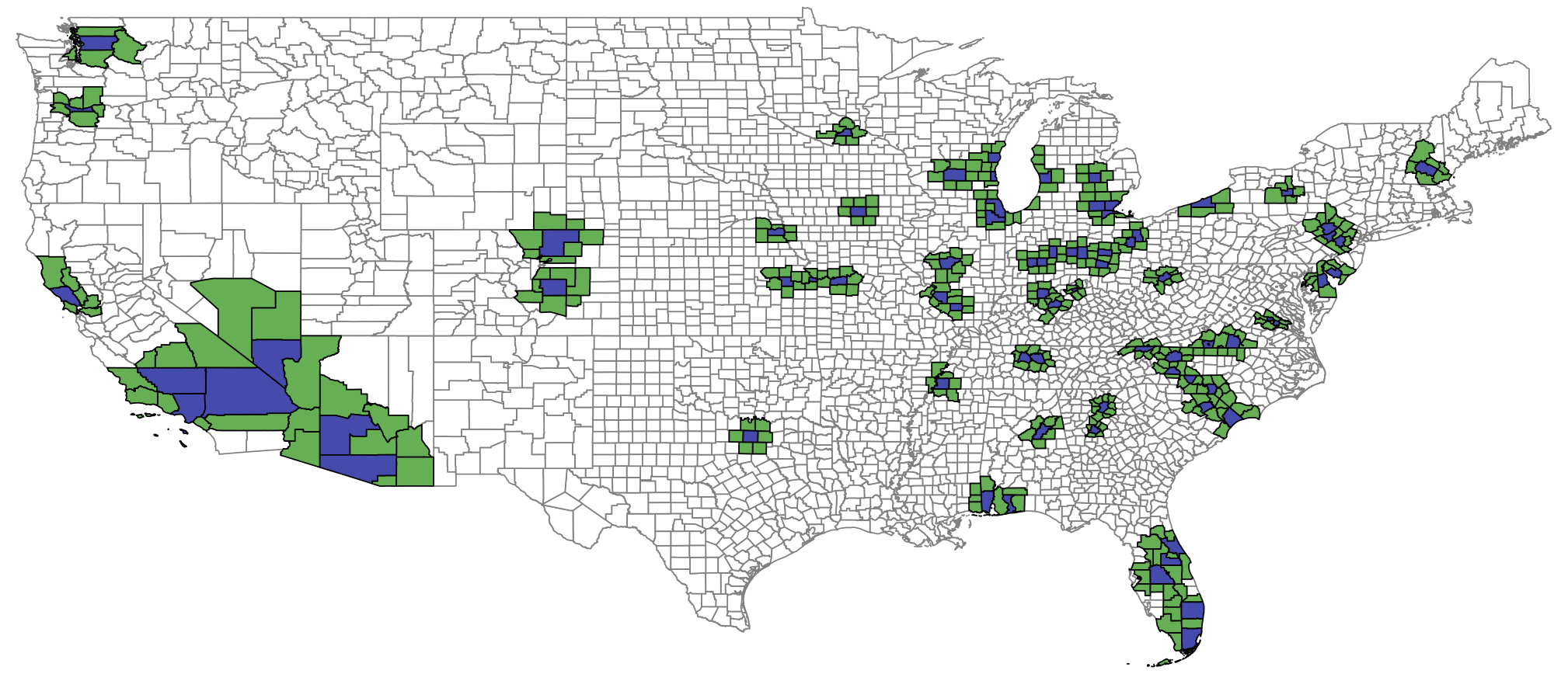

![county map](figures/figure_a3_county_type.png)

---

# Event studies

What HR do is actually a generalization of DD: an .hi-blue[event study]

An event study is basically just a DD with multiple time periods before and after the treatment

Here we estimate the effect of being in the treated group, relative to some baseline period
- In the 2x2 DD this baseline period was "before"

1. We can look at dynamic effects
--

2. It provides supporting evidence for the parallel trends assumption

---

# Event studies: dynamic effects

With an event study we can see how the effect of a policy changes *over time*

We will be able to estimate the effect in each post-period relative to some period

If we see estimates getting larger, the effect grows over time

If estimates get smaller, the effect shrinks

---

# Event studies: parallel pre-trends

In an event study we may have multiple periods before treatment

We can estimate the effect of being in the treatment group in each of these (pre-)periods

If there is no trend in the effect, the .hi-blue[pre-]trends are parallel

This gives us some comfort that the trends were likely to be parallel in the post-period in the absence of treatment

We never observe what would have .hi-red[actually] happened though, parallel pre-trends is just supporting evidence that the parallel trends assumption holds

---

# HR (2021): to the data

Now lets use the actual HR (2021) data to get some practice: [notebook here](https://raw.githack.com/irudik/aem6510/master/lecture-notes/13-health-dd/13-health-dd-notebook.html)

---

# HR (2021): takeaways

What can we take away from HR (2021)

1. Lead has a causal effect on elderly mortality
  - It appears to be through cardiovascular channels, perhaps *deaths of despair* as well (Case and Deaton, 2015)
2. The mortality costs are large
  - The external mortality costs imposed by NASCAR are larger than the value of all NASCAR teams combined
  - The social cost of lead is .hi-red[at least $1,000 per gram]
    - This is very, very, very big
