Lecture 11

# Lecture 11
## Deforestation // Regression discontinuity
### Ivan Rudik
### AEM 6510

---

```r
if (!require("pacman")) install.packages("pacman")
pacman::p_load(
  tidyverse, xaringanExtra, rlang, patchwork, nycflights13, ggthemes
)
options(htmltools.dir.version = FALSE)
knitr::opts_hooks$set(fig.callout = function(options) {
  if (options$fig.callout) {
    options$echo <- FALSE
  }
knitr::opts_chunk$set(echo = TRUE, fig.align="center")
  options
})
```

```
## Warning: 'xaringanExtra::style_panelset' is deprecated.
## Use 'style_panelset_tabs' instead.
## See help("Deprecated")
```

```
## Warning in style_panelset_tabs(...): The arguments to `syle_panelset()` changed in xaringanExtra 0.1.0. Please refer to the
## documentation to update your slides.
```

---

# Roadmap

- Can we exploit situations when we know the mechanism for treatment assignment?
  - Can we exploit situations where some units are just above some threshold to get treatment, and others are just below the threshold?
  - Do deforestation policies work?

---

# Regression discontinuity

---

# Regression discontinuity design

Suppose we want to estimate the effect of air quality on property values

We have a potentially large problem:
--
there's quite a lot of things that affect housing values that may also be correlated with air quality
--

- wealth, temperature, density, etc

--

This makes `$E[Y^0 | D = 1] - E[Y^0 | D = 0] \neq 0$`, biasing any estimates because air quality will also pick up on these other factors that determine property values

Here we will understand one way we can break this bias by exploiting .hi-red[discontinuities]

---

# Regression discontinuity design

The Clean Air Act mandates a set of National Ambient Air Quality Standards (NAAQS)

The NAAQS require counties to keep ambient air concentrations of six pollutants below some (arbitrary-ish) threshold

If a county goes above one of these thresholds, call them `$c_0$`, it is deemed to be in .hi-red[non-attainment]

---

# Regression discontinuity design

Non-attainment counties then face more stringent regulatory oversight and take up a host of actions aimed at reducing pollution back down to acceptable levels

Non-attainment counties had .hi-red[much] greater pollution reductions during the 1970s and 1980s compared to attainment counties (Chay and Greenstone, 2005)

---

# Regression discontinuity design

The NAAQS generate a .hi-red[discontinuity:]
--
counties just above the threshold in some year `$T$` face greater pressure to reduce pollution in subsequent years `$T+1, T+2, \dots$` compared to counties just below the threshold

In the absence of this policy we might expect counties with `$c_0 + \epsilon$` levels of pollution to be similar to counties with `$c_0 - \epsilon$` in terms of .hi-blue[all other factors] (on average)
  - i.e. `$E[Y^0 | D = 1] - E[Y^0 | D = 0] = 0$`

Thus any differences in property values is likely due to the NAAQS-induced decline in pollution in non-attainment counties

---

# Regression discontinuity design

This is the essence of the .hi-blue[regression discontinuity design (RDD)]

Two counties with high vs low pollution are generally not comparable (e.g. high pollution areas have other disamenities, lower wealth)

What if instead of comparing the two whole groups we did the following

Compare two counties that have *virtually identical* levels of pollution,
--
 but
--
where one is *just* above a threshold that forces it to significantly reduce pollution, and the other is *just* the below the threshold

The subsequent difference in other outcomes we may consider .hi-red[as good as random]

---

# Regression discontinuity design

RDD is appropriate whenever a observational unit's assignment to treatment `$D$` .hi[jumps] in probability when some other variable `$X$`, called the running variable, is above some threshold `$c_0$`

This makes sense right?

Jumps are relatively unnatural, things typically change smoothly

In RDD the jump is the chance of being put into treatment (in our example, under more regulatory scrutiny)

---

# Regression discontinuity design

With RDD we use our knowledge about how counties are selected into treatment (by going above the threshold `$c_0$`) in order to estimate the average treatment effect

More precisely: we compare units just below to just above `$c_0$` to estimate something called a .hi-blue[local average treatment effect (LATE)]

The .hi-blue[local] is because the estimate is only a valid ATE for units that have pollution levels near the threshold `$c_0$`

Here's what we're doing in pictures

---

# Regression discontinuity design: graphs

```r
set.seed(12345)
late <- 0 # local average treatment effect
n_obs <- 1000 # number of observations
rdd_df <- tibble(
  state = seq(1, n_obs)) %>%  # control/untreated potential outcome
  mutate(
    X = rnorm(n(), 50, 25), # running variable
    D = X > 50,
    Y1 = 500 + late*D - 1.5*X + rnorm(n(), 0, 20)
  ) %>%
  filter(X > 0) %>%
  select(
    state, D, X, Y1
  )
```

---

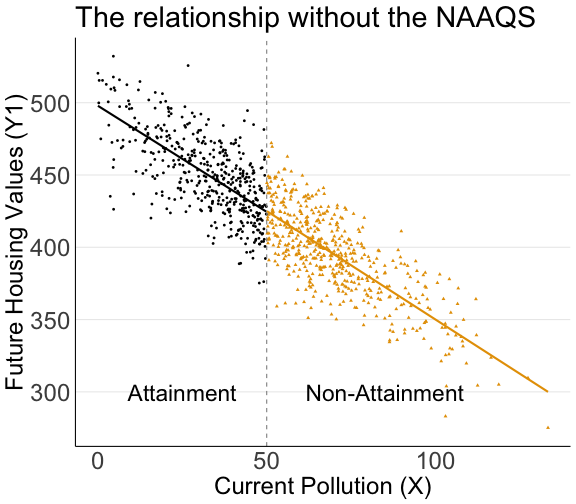

# Regression discontinuity design: graphs

![RDD is smooth without treatment](11-rdd_files/figure-html/rdd_base-1.png)

]

Suppose the pollution threshold is at 50

In the absence of the NAAQS, we expect a smooth/continuous transition in housing values above vs below the threshold

Next, suppose we implement the NAAQS

]

---

# Regression discontinuity design: graphs

```r
set.seed(12345)
late <- 40 # local average treatment effect (NOW 40)
n_obs <- 1000 # number of observations
rdd_df <- tibble(
  state = seq(1, n_obs)) %>%  # control/untreated potential outcome
  mutate(
    X = rnorm(n(), 50, 25), # running variable
    D = X > 50,
    Y1 = 500 + late*D - 1.5*X + rnorm(n(), 0, 20)
  ) %>%
  filter(X > 0) %>%
  select(
    state, D, X, Y1
  )
```

---

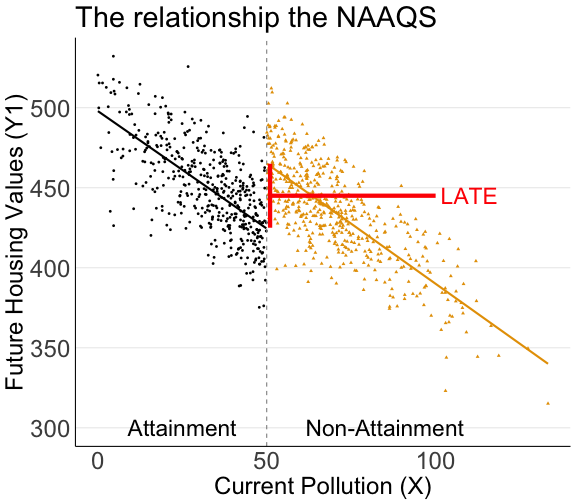

# Regression discontinuity design: graphs

![RDD LATE is around the threshold](11-rdd_files/figure-html/rdd_naaqs-1.png)

]

The policy induced greater pollution reductions in the non-attainment counties

Housing prices shift up for those counties

The vertical distance between the two groups at 50 is our .hi-blue[local average treatment effect]

]

---

# Regression discontinuity design: the data

We've seen what RDDs look like, what do we need to do one?

RDD is about finding these .hi[jumps] in the probability of treatment as we move along some other variable `$X$`

How do we find these jumps?

For environmental topics they're often embedded in rules (e.g. the NAAQS), or across space (e.g. deforestation policy)

---

# Regression discontinuity design: the data

Good and plausible RDDs often involve `$X$`s having a 'hair trigger' that's not tightly related to the outcome
  - e.g. being 10 meters on either side of the Bolivia/Brazil border is pretty arbitrary in the grand scheme of things, but a massive discontinuity in deforestation policy

--

We will need to be focused on the area right around this hair trigger threshold: that means we will need a lot of data near `$c_0$` in order to have precise estimates of the LATE

---

# Regression discontinuity design: the types

There are two classes of RDD: sharp and fuzzy

.hi-blue[Sharp designs] are where the probability of treatment increases from 0 to 1 at the threshold `$c_0$`

.hi-red[Fuzzy designs] are where the probability of treatment increases discontinuously at `$c_0$`, but not necessarily from 0 to 1

We will be focusing on sharp designs to keep it simple

---

# Sharp RDD: set up

A sharp RDD has treatment `$D$` being a deterministic function of the running variable `$X$`
  - e.g. deforestation policy is a deterministic function of distance from the Bolivia-Brazil border

--

In a sharp RDD treatment is given by:
`\begin{align}
D_i =
\begin{cases}
      1 & X_i \geq c_0 \\
      0 & X_i < c_0
   \end{cases}
\end{align}`

If we know `$X_i$` we know treatment with certainty

---

# Sharp RDD: set up

In potential outcomes terms we then have:
`$$Y^0_i = \alpha + \beta X_i \\
Y^1_i = Y^0_i + \delta$$`

Which gives us our regression is:
`\begin{align}
  Y_i &= D_i Y^1_i + (1- D_i) Y^0_i \tag{Rubin model} \\
  Y_i &= Y^0_i + (Y^1_i - Y^0_i)D_i \tag{Rearranged} \\
  Y_i &= \alpha + \beta X_i + \delta D_i + \underbrace{\varepsilon_i}_{\text{Error}} \tag{Plug in above terms}
\end{align}`

What is the mathematical definition of `$\delta$`?

---

# Sharp RDD: treatment effects

`$\delta$` is the discontinuity in the .hi[conditional expectation function:]

`\begin{align}
  \delta =& \lim_{X_i \rightarrow c_0} E[Y^1_i | X_i = c_0] - \lim_{c_0 \leftarrow X_i} E[Y^0_i | X_i = c_0] \\
  =& \lim_{X_i \rightarrow c_0} E[Y_i | X_i = c_0] - \lim_{c_0 \leftarrow X_i} E[Y_i | X_i = c_0]
\end{align}`

The sharp RDD gives us an average causal effect of treatment .hi-blue[at the discontinuity,] which is why it is called a local average treatment effect (LATE):
`$$\delta_{SRDD} = E[Y_i^1 - Y^0_i | X_i = c_0]$$`

---

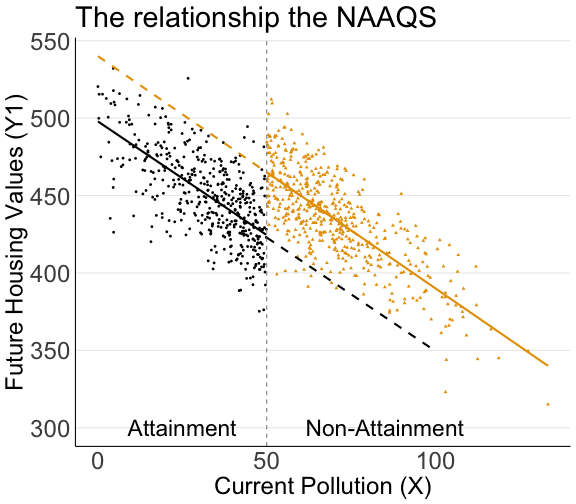

# Sharp RDD: treatment effects

![](11-rdd_files/figure-html/unnamed-chunk-4-1.png)

]

.pull-right[
Notice that .hi[extrapolation] plays a key role: there is no `$X$` where we have some units with `$D_i = 1$` and others with `$D_i = 0$`

We are extrapolating (locally around `$c_0$`) using the dashed lines to estimate the difference in the two means

]

---

# Sharp RDD: identifying assumption

The identifying assumption for RDD is called the .hi-blue[continuity assumption:]
> `$E[Y^0_i|X = c_0]$` and `$E[Y^1_i|X = c_0]$` are continuous (smooth) in `$X$` at `$c_0$`

It means that the expected potential outcomes should remain continuous at the threshold in the absence of treatment: they would not have jumped

If this is true, then all other determinants of `$Y$` are thus continuously related to `$X$` and the jump is completely due to treatment

---

# The Brazilian Amazon’s Double Reversal of Fortune

---

# What is the paper about?

What is Burgess et al. (2019) (.hi[BCO]) about?

BCO aims to estimate the .hi-red[causal] effect of deforestation regulation in Brazil

Why is this important?

1. The Amazon rainforest is incredibly important
--

2. The Amazon is largely undeveloped, unclear if deforestation regulation can be adequately enforced to matter
--

3. Understanding whether the regulation works is important for future policy

---

# How does the paper do it?

BCO estimate the causal effect of Brazil's deforestation policy by exploiting a spatial discontinuity

BCO does this using a RDD variant called .hi-blue[spatial RDD]

They compare deforestation outcomes in Brazil, to those in other countries, close to the country border

---

# How does the paper do it?

Bolivia is on the left, Brazil is on the right

Darker green is more forested

Red is protected, blue is private

Sharp discontinuities in forest cover are very clear all along the border (black)

---

# How does the paper do it?

In the spatial RDD the running variable `$X$` is distance from the border
  - Negative values for other countries, positive values for Brazil

Their model is similar to what we just went over with sharp RDD:
`$$Y_i = \delta \text{Brazil}_i + f(\text{distance to border}_i) + \text{controls} + \varepsilon_i$$`

Here:
- `$\text{Brazil}_i \equiv D_i$`
- `$f(\text{distance to border}_i) \equiv X_i$`

---

# How does the paper do it?

The paper also includes a set of controls for things that may be different/discontinuous across the border (e.g. national infrastructure, elevation, etc)

BCO's key assumption is that other factors that affect deforestation change smoothly across the border

This is likely reasonable: the borders were arbitrarily set in 1750 when the area was virtually unexplored: where the border is .hi-blue[locally] is effectively random

They also find no discontinuities in other things that may be important for deforestation: roads, slope, distance to cities, etc

---

# What they get

The forest data are very, very large (120 meter pixels!) so we won't be doing this hands on

---

# What they get

0 is the border, to the right is Brazil, to the left is other countries, the year is 2000

Other countries have greater forest cover than Brazil, but with a slight decline as you move to the Brazil border

Brazil has discontinuously lower forest cover near the border

---

# What they get

BCO also runs the RDD year-by-year so we can see how the LATE changes over time

The effect of being in Brazil goes to zero for about 2006-2014

This is about when Brazil implemented tougher national deforestation policies: *Action Plan for the Prevention and Control of Deforestation in the Legal Amazon, Law on Public Forest Management, etc*

---

# What they get: deforestation LATE by year

The effect of the tougher policies seems to have gone away after 2014

Why?

Economic crises decreased enforcement of environmental regulations, and lead to weakening of the regulations
