# Roadmap

- Intro to regression and ordinary least squares

---

class: inverse, center, middle
name: tidyverse

# Regression and ordinary least squares

---

# Why?

Let's start with a few .hi[basic, general questions]

1. What is the goal of econometrics?

2. Why do economists (or other people) study or use econometrics?

---

# Why? Example

GPA is an output from endowments (ability), and hours studied (inputs), and pollution exposure (externality)

One might hypothesize a model:
`$\text{GPA}=f(I, P, \text{SAT}, H)$`

where `$H$` is hours studied, `$P$` is pollution exposure, `$\text{SAT}$` is SAT score and `$\text{I}$` is family income

We expect that GPA will rise with some variables, and decrease with others

But who needs to _expect_?

We can test these hypotheses .hi[using a regression model]

---

# How?

We can write down a linear regression model of the relationship between GPA and (H, P, SAT, PCT):
$$ \text{GPA}_i = \beta_0 + \beta_1 I_i + \beta_2 P_i + \beta_3 \text{SAT}_i + \beta_4 H_i + \varepsilon_i $$

The left hand side of the equals sign is our .hi-blue[dependent variable] GPA

The right hand side of the equals sign contains all of our .hi-red[independent variables] (I, P, SAT, H), and an error term `$\varepsilon_i$` (described later)

The subscript `$i$` means that the variable contains the value for some person `$i$` in our dataset where `$i = 1,\dots,N$`

---

# How?

$$ \text{GPA}_i = \beta_0 + \beta_1 I_i + \beta_2 P_i + \beta_3 \text{SAT}_i + \beta_4 H_i + \varepsilon_i $$

We are interested in how pollution P affects GPA

This is given by `$\beta_2$`

Notice that `$\beta_2 = \frac{\partial\text{GPA}_i}{\partial\text{P}_i}$`

`$\beta_2$` tells us how GPA changes, given a 1 unit increase in pollution!

Our goal will be to estimate `$\beta_2$`, we denote estimates with hats: `$\hat{\beta}_2$`

---

# How?

How do we estimate `$\beta_2$`?

First, suppose we have a set of estimates for all of our `$\beta$`s, then we can *estimate* the GPA `$(\widehat{GPA}_i)$` for any given person based on just (I, P, SAT, H):
`$$\widehat{GPA}_i = \hat{\beta}_0 + \hat{\beta}_1 I_i + \hat{\beta}_2 P_i + \hat{\beta}_3 \text{SAT}_i + \hat{\beta}_4 H_i$$`

---

# How?

We estimate the `$\beta$`s with .hi[linear regression], specifically ordinary least squares

.hi[Ordinary least squares:] choose all the `$\beta$`s so that the sum of squared errors between the *real* GPAs and model-estimated GPAs are minimized:
`$$SSE = \sum_{i=1}^N (GPA_i - \widehat{GPA}_i)^2$$`

Choosing the `$\beta$`s in this fashion gives us the best-fit line through the data

---

# How?

---

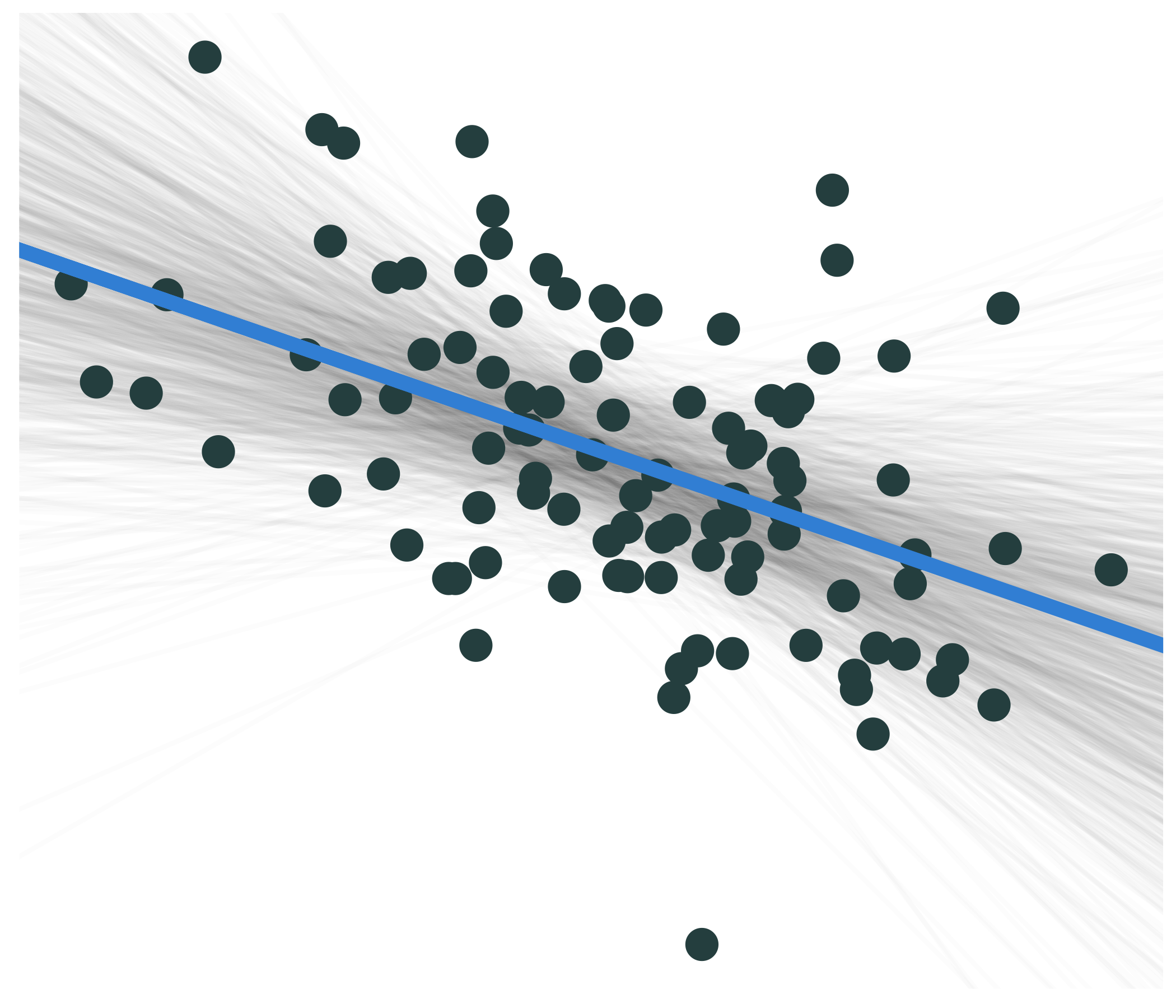

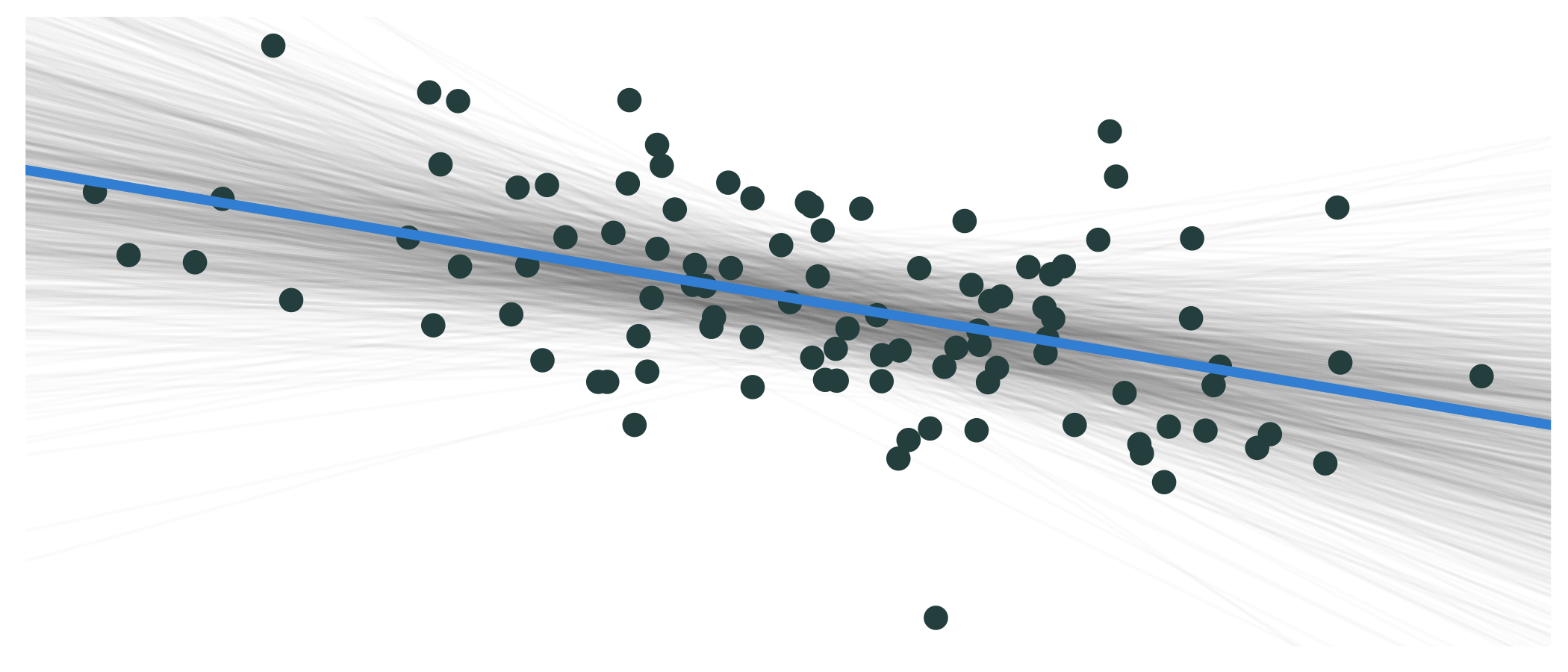

# Simple example

Suppose we were only looking at GPA and pollution (lead/Pb):

$$\text{GPA}_i = \beta_0 + \beta_1 P_i + \varepsilon_i $$

![](09-slides-econometrics_files/figure-html/ols vs lines 1-1.svg)
