After talking quite a bit about web data in the last session, today’s session is dedicated to data collection - from the web!

What we will cover:

scraping static webpages
scraping multiple static webpages
API calls
building up and maintaining you own original sets of web-based data

What we will not cover (today):

scraping dynamic webpages

Why webscrape with R? 🌏

Webscraping broadly includes a) getting (unstructured) data from the web and b) bringing it into shape (e.g. cleaning it, getting it into tabular format).

Why webscrape? While some influential people consider “Data Scientist” 👩‍💻 to be the sexiest job of the 21st century (congratulations!), one of the sexiest just emerging academic disciplines is (in my influential view) - Computational Social Science (CSS). Why is that so?

data abundance online
social interaction online
services track social behavior

BUT online data are usually meant for display, not a (clean) download!

But getting access to online data would also be incredibly interesting when you think of very pragmatic things like financial resources, time resources, reproducibility and updateability…

Luckily, with R we can automate the whole pipeline of downloading, parsing and post-processing to make our projects easily reproducible.

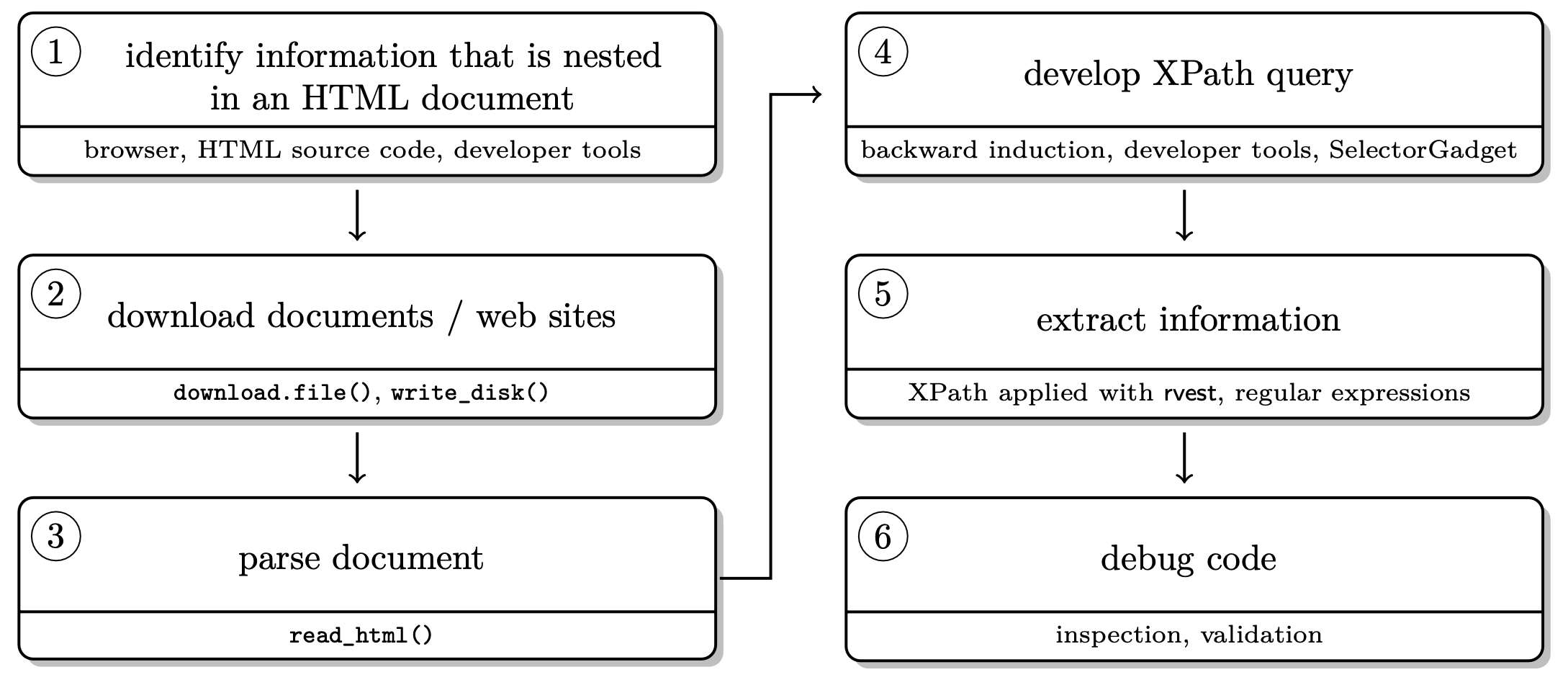

In general, remember, the basic workflow for scraping static webpages is the following.

Scraping static sites with `rvest` 🚜

Who doesn’t love Wikipedia? Let’s use this as our first, straight forward test case.

Step 1. Load the packages rvest and stringr.

library(rvest)
library(stringr)
library(tidyverse)

Step 2. Parse the page source.

parsed_url <- read_html("https://en.wikipedia.org/wiki/Cologne")

Step 3. Extract information.

parsed_url %>%
  html_element(xpath = '//p[(((count(preceding-sibling::*) + 1) = 170) and parent::*)]') %>%
  html_text()

## [1] "The Cologne carnival is one of the largest street festivals in Europe. In Cologne, the carnival season officially starts on 11 November at 11 minutes past 11 a.m. with the proclamation of the new Carnival Season, and continues until Ash Wednesday. However, the so-called \"Tolle Tage\" (crazy days) do not start until Weiberfastnacht (Women's Carnival) or, in dialect, Wieverfastelovend, the Thursday before Ash Wednesday, which is the beginning of the street carnival. Zülpicher Strasse and its surroundings, Neumarkt square, Heumarkt and all bars and pubs in the city are crowded with people in costumes dancing and drinking in the streets. Hundreds of thousands of visitors flock to Cologne during this time. Generally, around a million people celebrate in the streets on the Thursday before Ash Wednesday.[69]"

There are two options:

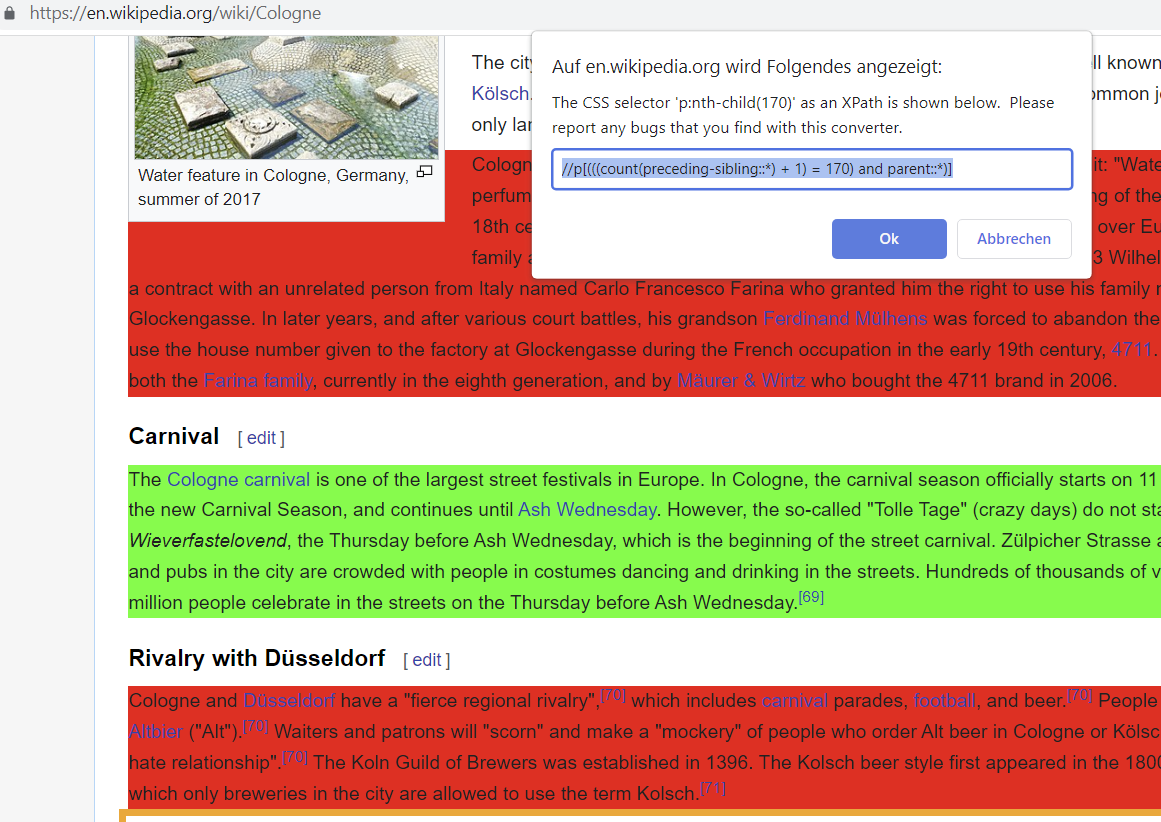

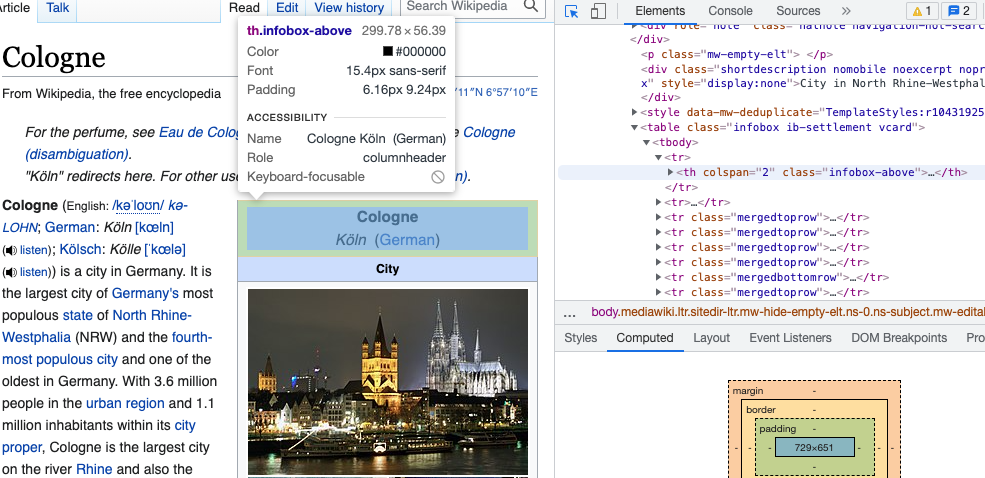

Option 1. We saw how to do this before the Midterm brea. On your page of interest, go to a table that you’d like to scrape. Our favorite bowser for webscraping is Google Chrome but others work as well. On Chrome, you go in View > Developer > inspect elements. If you hover over the html code on the right, you should see boxes of different colors framing different elements of the page. Once the part of the page you would like to scrape is selected, right click on the html code and Copy > Copy Xpath. That’s it.

Option 2. Something we did not show you, but that you might look at in your own time is the Chrome Extension SelectorGadget. You download the Chrome Extension SelectorGadget and activate it while browsing the page you’d like to scrape from. You will see a selection box moving with your cursor. You select an element by clickin on it. It turns green - and so does all other content that would be selected with the current XPath.

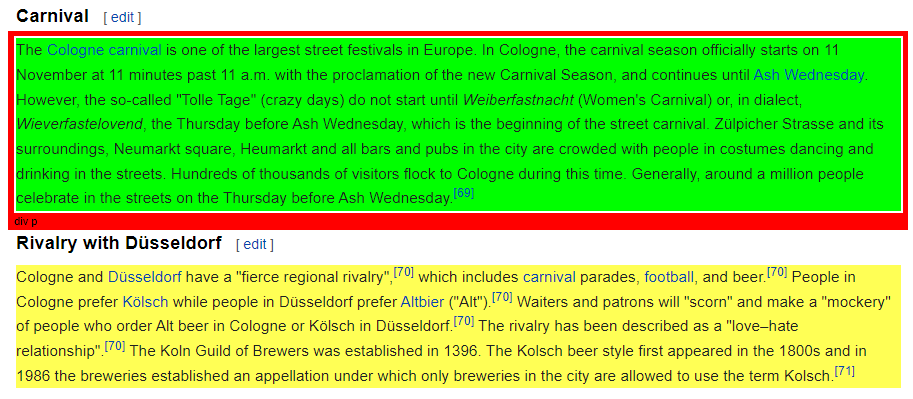

You can now de-select everything that is irrelevant to you by clicking it again (it then turns red). Final step, then just click the XPath button at the bottom of the browser window. Make sure to use single quotation marks with this XPath!

Let’s repeat step 2 and 3 with a more data-sciency example. 🎓

Step 2. Parse the page source.

nypl_url <- "https://www.nypl.org/books-more/recommendations/best-books/adults?year=2021"
nypl100 <- read_html(nypl_url)

Step 3. Extract information. When going through different levels of html, you can also use tidyverse logic.

body_nodes <- nypl100 %>%
 html_elements("body") %>%
 html_children()

body_nodes %>%
 html_children()

play with that yourself if you like…

Now let’s have a look at the different ways to extract information:

title <- nypl100 %>%
  html_elements(xpath = '//ul/li/div/div/h4') %>%
  html_text2()

author <- nypl100 %>%
  html_elements(css = '.spbb-card__byline--grid') %>%
  html_text2()

summary <- nypl100 %>%
  html_elements(xpath = '//*[contains(concat( " ", @class, " " ), concat( " ", "spbb-card__description--grid", " " ))]') %>%
  html_text2()

Step 4. Usually, step 4 is to clean extracted data. In this case, it actually is pretty clean already, thanks to html_text2(). However, in many cases, we need to clean the data we scraped with regular expressions.

Step 5. Put everything into a data frame. 📖

knitr::kable(data.frame(title, author, summary) %>% head(3))

title	author	summary
Act Your Age, Eve Brown: A Novel	By Talia Hibbert	Jacob likes things in life to be neat and orderly. But everything is turned upside down when Eve Brown blows into his life like a sparkly tornado. This steamy opposites-attract romance will have you laughing out loud and begging for more. Third in a series but it stands alone.
Afterparties: Stories	By Anthony Veasna So	Seamlessly transitioning between the absurd and the tenderhearted, this book offers a portrait of Cambodian-American lives. Children of refugees shoulder the inherited weight of the Khmer Rouge genocide and grapple with the complexities of race, sexuality, friendship, and family.
All Her Little Secrets: A Novel	By Wanda M. Morris	Ellice has safely guarded her secrets for years, but when she discovers her boss dead in his office, all of them begin to unravel.

Scraping HTML tables 🚀

Oftentimes, we would like to scrape tabular data from the web. This is even easier in rvest!

url_p <- read_html('https://en.wikipedia.org/wiki/R_(programming_language)')
r_table <- html_table(url_p, header = TRUE, fill = TRUE) %>%
  pluck(2)
r_table %>%
  select(Description) %>%
  head(5)

Another R workaround for more complex tables is the package htmltab that offers some more flexibility.

Scraping multiple pages 🤖

Whenever you want to really understand what’s going on within the functions of a new R package, it is very likely that there is a relevant article published in the Journal of Statistical Software. Let’s say you are interested in how the journal was doing over the past years.

Step 1. Inspect the source. Basically, follow steps to extract the Xpath information.

browseURL("http://www.jstatsoft.org/issue/archive")

Step 2 Develop a scraping strategy. We need a set of URLs leading to all sources. Inspect the URLs of different sources and find the pattern. Then, construct the list of URLs from scratch.

baseurl <- "http://www.jstatsoft.org/article/view/v"
volurl <- paste0("0", 1:99)
volurl[1:9] <- paste0("00", 1:9)
brurl <- paste0("0", 1:9)

urls_list <- cross2(volurl, brurl) %>% map_chr(~paste0(baseurl, .[[1]], 'i', .[[2]]))
names <- cross2(volurl, brurl) %>% map_chr(~paste0(.[[1]], '_', .[[2]], '.html'))

Step 3 Think about where you want your scraped material to be stored and create a directory.

tempwd <- ("data/jstatsoftStats")
dir.create(tempwd)
setwd(tempwd)

Step 4 Download the pages. Note that we did not do this step last time, when we were only scraping one page.

folder <- paste0(tempwd, "\\html_articles\\")
dir.create(folder)

for (i in seq_along(urls_list)) {
  # only update, don't replace
  if (!file.exists(paste0(folder, names[i]))) {
    # skip article when we run into an error
    tryCatch(
      download.file(urls_list[i], destfile = paste0(folder, names[i])),
      error = function(e)
        e
    )
    # don't kill their server --> be polite!
    Sys.sleep(runif(1, 0, 1))
  }
}

While R is downloading the pages for you, you can watch it directly in the directory you defined…

Check whether it worked.

list_files <- list.files(folder, pattern = "0.*")
list_files_path <- list.files(folder, pattern = "0.*", full.names = TRUE)
length(list_files)

Yay! Apparently, we scraped the html pages of 425 articles.

(Git)ignoring files 🙅

In case you scraping project is is linked to GitHub (as it will be in your assignment!), it can be useful to .gitignore the folder of downloaded files. This means that the folder can be stored in your local directory of the project but will not be synced with the remote (main) repository. Here is information on how to do this using RStudio. In Github Desktop it is very simple, you do your scraping work, the folder is created in your local repository and before your commit and push these changes, you go on Repository > Repository Settings > Ignored Files and edit the .gitignore file (add the name of the new folder / files you don’t want to sync). More generally, it makes sense to exclude .Rproj files, .RData files (and other binary or large data files), draft folders and sensitive information from version control. Remember, git is built to track changes in code, not in large data files.

Step 5 Import files and parse out information. A loop is helpful here!

# define output first
authors <- character()
title <- character()
datePublish <- character()

# then run the loop
for (i in seq_along(list_files_path)) {

  html_out <- read_html(list_files_path[i])

  authors[i] <- html_out %>%
    html_elements(xpath = '//*[contains(concat( " ", @class, " " ), concat( " ", "authors_long", " " ))]//strong') %>%
    html_text2()

  title[i] <- html_out %>%
    html_elements(xpath = '//*[contains(concat( " ", @class, " " ), concat( " ", "page-header", " " ))]') %>%
    html_text2()

  datePublish[i] <- html_out %>%
    html_elements(xpath = '//*[contains(concat( " ", @class, " " ), concat( " ", "article-meta", " " ))]//*[contains(concat( " ", @class, " " ), concat( " ", "row", " " )) and (((count(preceding-sibling::*) + 1) = 2) and parent::*)]//*[contains(concat( " ", @class, " " ), concat( " ", "col-sm-8", " " ))]') %>%
    html_text2()

}

# inspect data
authors[1:3]
title[1:3]
datePublish[1:3]

# create a data frame
dat <- data.frame(authors = authors, title = title, datePublish = datePublish)
dim(dat)

Step 6 Clean data…

You see, scraping data from multiple pages is no problem in R. Most of the brain work often goes into developing a scraping strategy and tidying the data, not into the actual downloading/scraping part.

Scraping is also possible in much more complex scenarios! Watch out for workshop presentations on

Dynamic webscraping with RSelenium
Web APIs
Regular expressions with stringr
Data cleaning with janitor

and many more 🤩

Good scraping practice

There is a set of general rules to the game:

You take all the responsibility for your web scraping work.
Think about the nature of the data. Does it entail sensitive information? Do not collect personal data without explicit permission.
Take all copyrights of a country’s jurisdiction into account. If you publish data, do not commit copyright fraud.
If possible, stay identifiable. Stay polite. Stay friendly. Obey the scraping etiquette.
If in doubt, ask the author/creator/provider of data for permission—if your interest is entirely scientific, chances aren’t bad that you get data.

How do I know the scraping etiquette of a site? 🤝

Robot exclusion standards (robot.txt) are informal protocols to prohibit web robots from crawling content. They list documents that are allowed to crawl and which not. It is not a technical barrier but an ask for compliance. They are located in the root directory of a website (e.g https://de.wikipedia.org/robots.txt).

For example, let’s have a look at wikipedia’s robot.txt file, which is very human readable.

General rules are listed under User-agent: * which is most interesting for R-based crawlers. A universal ban for a directory looks like this Disallows: /, sometimes Crawl-delays are suggested (in seconds) Crawl-delay: 2.

What is “polite” scraping? 🐌

First thing would be not to scrape at a speed that causes trouble for their server. Therefore, whenever you loop over a list of URLs, add a Sys.sleep(runif(1, 1, 2)) at the end of the loop.

And generally, it is better practice to store data on your local drive first (download.file()), then parse (read_html()).

A footnote on sustainability. In the digital context, we often forget that or actions do have physical consequences. For example, training AI, using blockchain and just streaming videos do cause considerable amounts of CO2 emissions. So does bombarding a server with requests - certainly to a much lesser extent than the examples before - but please consider whether you have to re-run a large scraping project 100 times in order to debug things.

Furthermore, downloading massive amounts of data may arouse attention from server administrators. Assuming that you’ve got nothing to hide, you should stay identifiable beyond your IP address.

How can I stay identifyable? 👤

Option 1: Get in touch with website administrators / data owners.

Option 2: Use HTTP header fields From and User-Agent to provide information about yourself.

url <- "http://a-totally-random-website.com"

rvest_session <- session(url,
  add_headers(`From` = "my@email.com",
              `UserAgent` = R.Version()$version.string))

scraped_text <- rvest_session %>%
            html_elements(xpath = "p//a") %>%
            html_text()

rvest’s session() creates a session object that responds to HTTP and HTML methods. Here, we provide our email address and the current R version as User-Agent information. This will pop up in the server logs: The webpage administrator has the chance to easily get in touch with you.

On an API far, far away… ⭐

library(httr)
library(jsonlite)
library(xml2)

To get data from an API, we suggest to follow a workflow like this:

Read the APIs documentation!
Get the baseurl
Find out the parameters referring to the resources of interest to you
Create a query url from the base url and the query parameters
Run the GET function on the query url
Depending on the encoding (usually, it’s json), you will need to:

Parse the result with the content function
Either use jsonlite or xml2 to parse the json or xml files

Let’s have a look at an example, the Star Wars API:

baseurl <- "https://swapi.dev/api/"

query <- 'films'

GET(paste0(baseurl, query)) %>%
  content(as = 'text') %>%
  fromJSON() %>%
  pluck(4) %>%
  as.data.frame()

query <- 'people/?search=skywalker'

GET(paste0(baseurl, query)) %>%
  content(as = 'text') %>%
  fromJSON() %>%
  pluck(4) %>%
  as.data.frame()

If you do not know the source format, the http_type function will help you out!

query <- 'starships/?search=death/?format=wookiee'

GET(paste0(baseurl, query)) %>%
  http_type()

## [1] "application/json"

API keys and authentication 🔒`

For many APIs, you will need to obtain an api key to retrieve data. Once you received your api key (or token), you will also need to adapt your GET query. How you need to do this depends a lot on the API. Let’s have a look at how to do this for the API of the US congress: The API is actually valid across a number of US government institutions. We can sign up for an API key here. The API website, gives us detailed information on how to build our queries. But how do we actually authenticate ourselves with the API key? The documentation tells us that there are multiple ways to go about this. We can either do adapt the use HTTP basic authentication, the GET query parameter, or the HTTP header.

Here’s a quick overview of how to implement these with httr:

baseurl <- 'https://api.congress.gov/v3/'

query <- 'nomination/115/2259/actions'

GET(paste0(baseurl, query),
    authenticate(user = Sys.getenv('US.GOV_API'), password = '')) %>%
  content(as = 'text') %>%
  fromJSON() %>%
  pluck(1) %>%
  as.data.frame()

query <- paste0('summaries/117/hr?fromDateTime=2022-10-01T00:00:00Z&toDateTime=2022-11-01T00:00:00Z&sort=updateDate+desc')

GET(paste0(baseurl, query), query = list(api_key = Sys.getenv('US.GOV_API'))) %>%
  content(as = 'text') %>%
  fromJSON() %>%
  pluck(3) %>%
  as.data.frame()

query <- 'member/O000167/sponsored-legislation.xml'

GET(paste0(baseurl, query),
    add_headers('X-Api-Key' = Sys.getenv('US.GOV_API'))) %>%
  content(as = 'text') %>%
  read_xml() %>%
  xml_find_all('//sponsoredLegislation//title') %>% xml_text()

Retrieving data from API’s using httr can at times be quite tiresome. Luckily, there are many R libraries that make it much easier to retrieve data from APIs. Here is a list of ready-made R bindings to web-APIs. Actually, even the starwars API we queried earlier has its own R package, rwars!

Sources

This tutorial drew heavily on Simon Munzert’s book Automated Data Collection with R and related course materials. We also used an example from Keith McNulty’s blog post on tidy web scraping in R. For the regex part, we used examples from the string manipulation section in Hadley Wickham’ s R for Data Science book.

A work by Lisa Oswald & Tom Arend

Prepared for Intro to Data Science, taught by Simon Munzert

Hertie School, Berlin
