ACTAM: Introduction to Version Control Systems

20/09/2024

Class outline

• Short introduction (~20 min)

• Short Github demo (~10 min)

• Hands-on: Setup and play with first GitHub account (~30 min)

• Coffee/tea (~10 min)

• Short demo using Git (~10 min)

• Hands-on: Solo repo (~20 min)

• Hands-on: Collab repo (∞)

Mindset

• All backgrounds are welcomed! (mine too)
• Collaborative approach
• Having fun == Learning
• Questions shall be asked (llms and/or me)

Magic goals

• To do many things at once (non-linear development)
• To go back in history
• To undo mistakes
• To keep control

Version/Source control of what?

• Folders, documents, codebases...a song?
• Markdown!

This

is

the markdown syntax

for code snippets:

console.log("I love markdown")

Explore more at Markdown Live Preview.

Types of version control

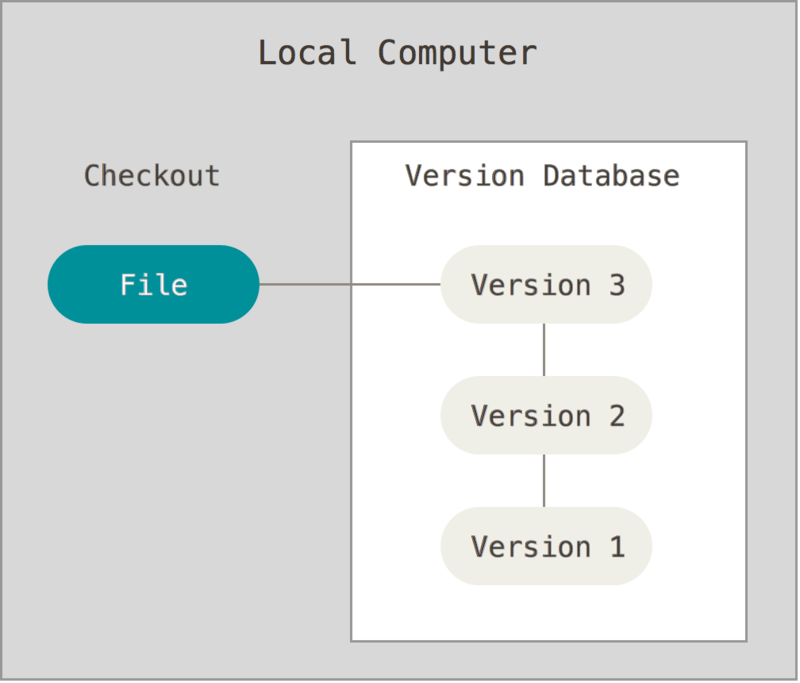

Local

• Based on a simple database that kept track of all the changes in the files
• No collaboration: Bad

Types of version control

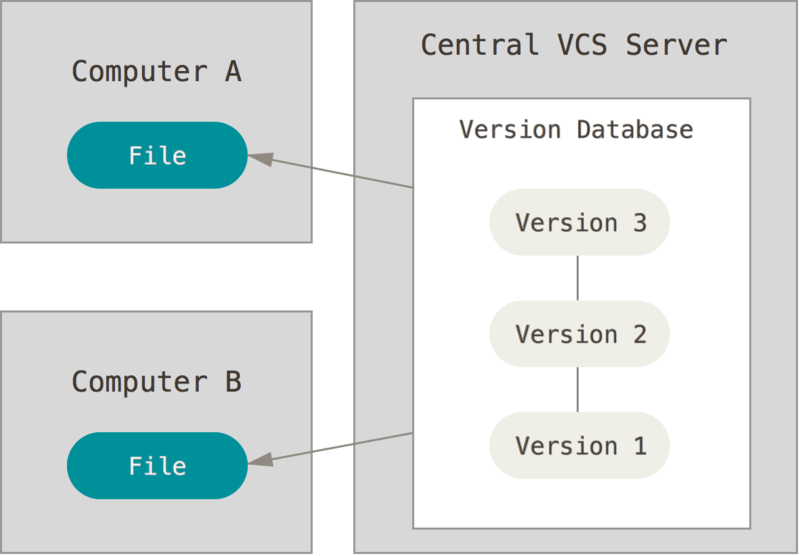

Centralized

• A single server that contains all the versioned files
• Entire history of the project in a single place: bad

Types of version control

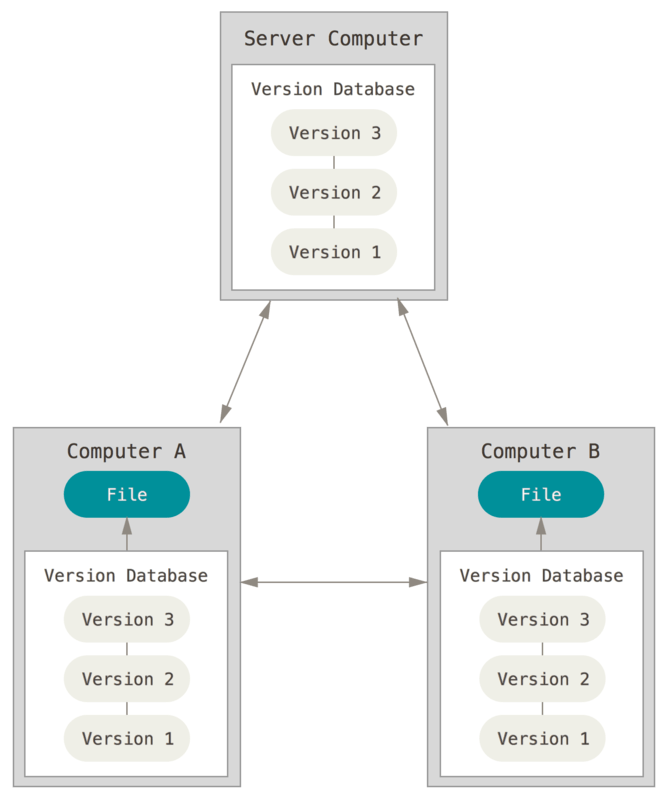

Distributed (e.g Git)

• Versioned fileses are stored at different places
• Any of the client repos can be copied back up to the server to restore it: good

Many Git powers to achieve magic goals

• start a working area: git init | git clone

• mess around: git add | git mv | git rm

• examine history and state: git status | git log | git diff

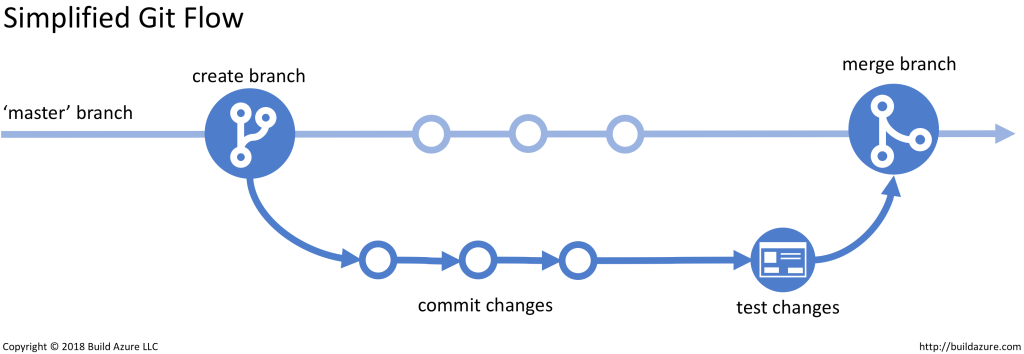

• make and modify history: git commit | git branch | git merge

• collaborate: git fetch | git pull | git push

Memo 1: Adding vs Committing

• git add: stages changes (new, modified, or deleted files) in the staging area preparing them for a commit
• git commit: records the staged changes into the repo's history, creating a snapshot of the current state of the project.

Memo 2: Fetching vs Pulling

• git fetch: retrieves updates from a remote repo without altering the local working directory
• git pull: retrieves updates from a remote repo and then integrate with another repo or a local branch

Memo 3: Pull request (PR) vs Merge request (MR)

Almost synonim across github and gitlab.

A PR is a proposal to merge a set of changes from one branch into another, reviewed by team members

Memo 4:

Memo 5: Tweak history

• git checkout HEAD~3: Temporarily go back without removing the latest commits ("detached HEAD")
• git reset --soft HEAD~3: Permanently reset the branch to a previous commit (and keep changes staged)
• git checkout -b new-branch HEAD~3: Creating a new branch from a previous commit preserving current branch

Resources

• Dowload Git https://git-scm.com/download

• What is a pull request: https://docs.github.com/en/pull-requests/collaborating-with-pull-requests/proposing-changes-to-your-work-with-pull-requests/about-pull-requests

• For VSC lovers: https://code.visualstudio.com/docs/sourcecontrol/overview

Hands-on 1: Play with GitHub

1. Create GitHub account

2. Populate a new repo with files/folders

3. Create new branch, commit some changes, inspect history

4. Pull requests and merge without conflicts

5. like before but with conflicts resolution

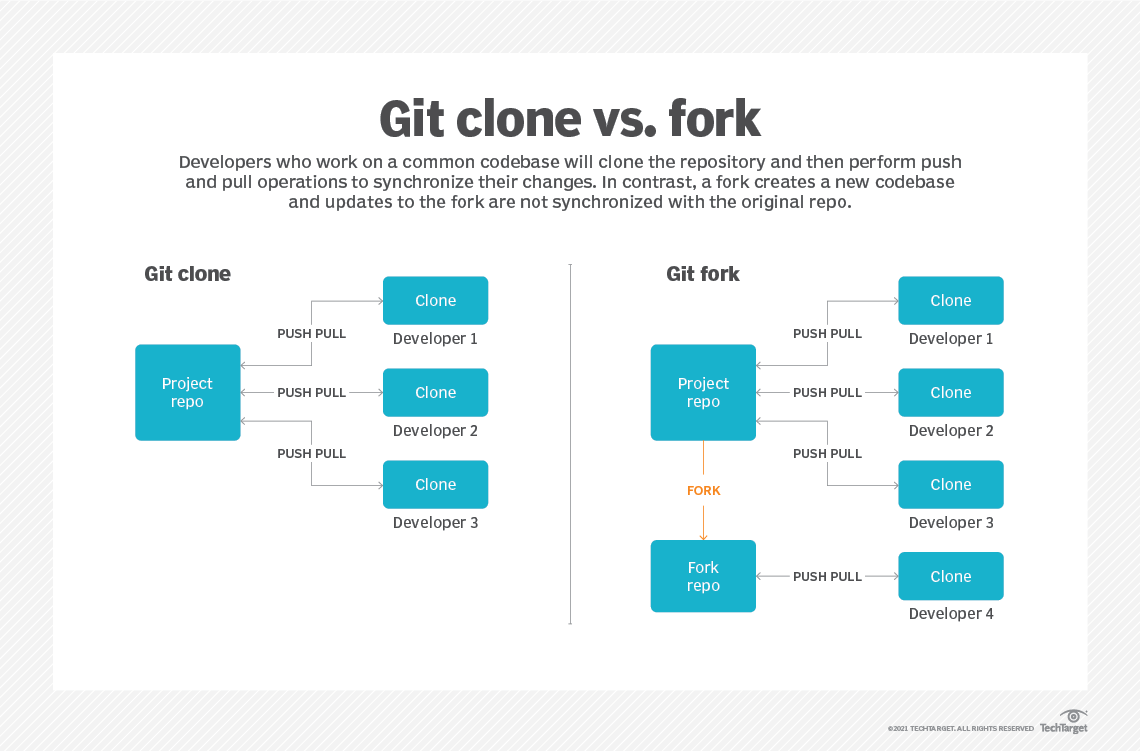

6. Extra: fork your deskmate's...repo!

Hands-on 2: Solo local repo

1. Install Git

2. Create and initialize a local repo

3. Add and commit stuff

4. Tweak common history (3 methods above)

5. Extra: try merge changes from new-branch into main (git merge new-branch)

Hands-on 3: Collab on a remote repository

1. Group in 2-4 people
2. Imagine a mockup project (app, library, book)
3. Assign tasks (devs, maintainers)
4. Create and clone remote repo
5. Pull and Push to branches (2-3 iterations)
6. Create and review pull requests for merging changes
7. Final goal: a clean, functional main branch
