Emily Bradley

Ray-Tracing Algorithm | URL

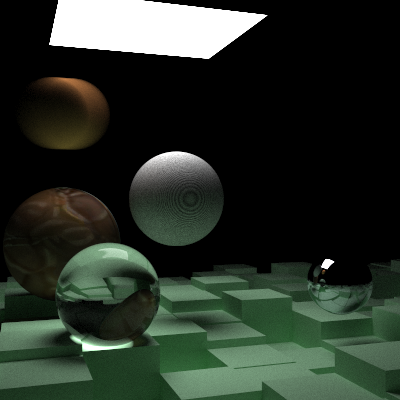

Final Scene Output

A Ray-Tracing algorithm coded exclusively in C for COM S 3360, a course at Iowa State University. This algorithm has the ability to configure sample size to modify the quality of outputted images and configure the camera to alter the view of the rendered image.

A majority of features I implemented were derived from the Ray Tracing in One Weekend series by Peter Shirley, Trevor David Black, and Steve Hollasch. Triangle mesh loading and computational concepts were derived from Physically Based Rendering:From Theory To Implementation, by Matt Pharr, Wenzel Jakob, and Greg Humphreys. I utilized meshes from the "Morrowind Enhanced Texture" mod by Project Enhance (uploaded by DassiD) from Nexusmods as well as the "Low-Poly Eevee" triangle-mesh by F. Flowalistik from Thingiverse for personal taste.

Pumpkin Tracker | URL

Every year, Reiman Gardens hosts a Spirit of the Gardens event in October, where 1200+ pumpkins are carved and displayed for each week of the event. Volunteers are requested to help cut out stencils, trace stencils onto pumpkins, and carve them. All pumpkin statuses are stored in a single excel sheet, where Admins must manually adjust the statuses of each stencil—whether they've been printed, cut out, traced, or carved. Volunteers will take stencils and pumpkins each week to trace the cut out stencils and/or carve the traced pumpkins, which that information needs to be sent to the Event Admins so they know what stencils are left that need to be completed. Additionally, Event Admins for Spirits of the Gardens will select stencils to be used for each week of the event, which means that week or those weeks will be when the pumpkin with that stencil is displayed. As the stencil database keeps growing, this process is becoming increasingly time-consuming due to searching through a single excel sheet.

To aid with this issue, my team is currently working with Nathan Brockman—one of the faculty members at Reiman Gardens—to develop an app called "Pumpkin Tracker" to make tracking event information quick, accurate, and easy. Pumpkin Tracker facilitates the various interactions with the stencil database by allowing Event Admins to easily add, delete, update, and archive stencils with the simple click of a few buttons or input from a barcode scanner as opposed to manually editing a row in an excel sheet that contains 1600+ entries. On the Admin side, there are pages for Login, Event Management, Stencil Selection, and Stencil Management. The Volunteer side was designed to assist in informing the Event Admins of the tracing and carving statuses of the stencils for each week.

I am primarily working on Frontend for the development of the Mobile and Web Application, which is being set up as a React app. This involves working extensively with ReactDOM, JavaScript, and HTML/CSS. Our database is being hosted on a DigitalOcean droplet we deemed appropriate for our applications needs, with the engine running on SQLite. Our team adopted an Agile project development style since we need to present each design iteration to our client, Nathan Brockman, to receive feedback on user satisfaction and conduct continuous software testing as we integrate new features.

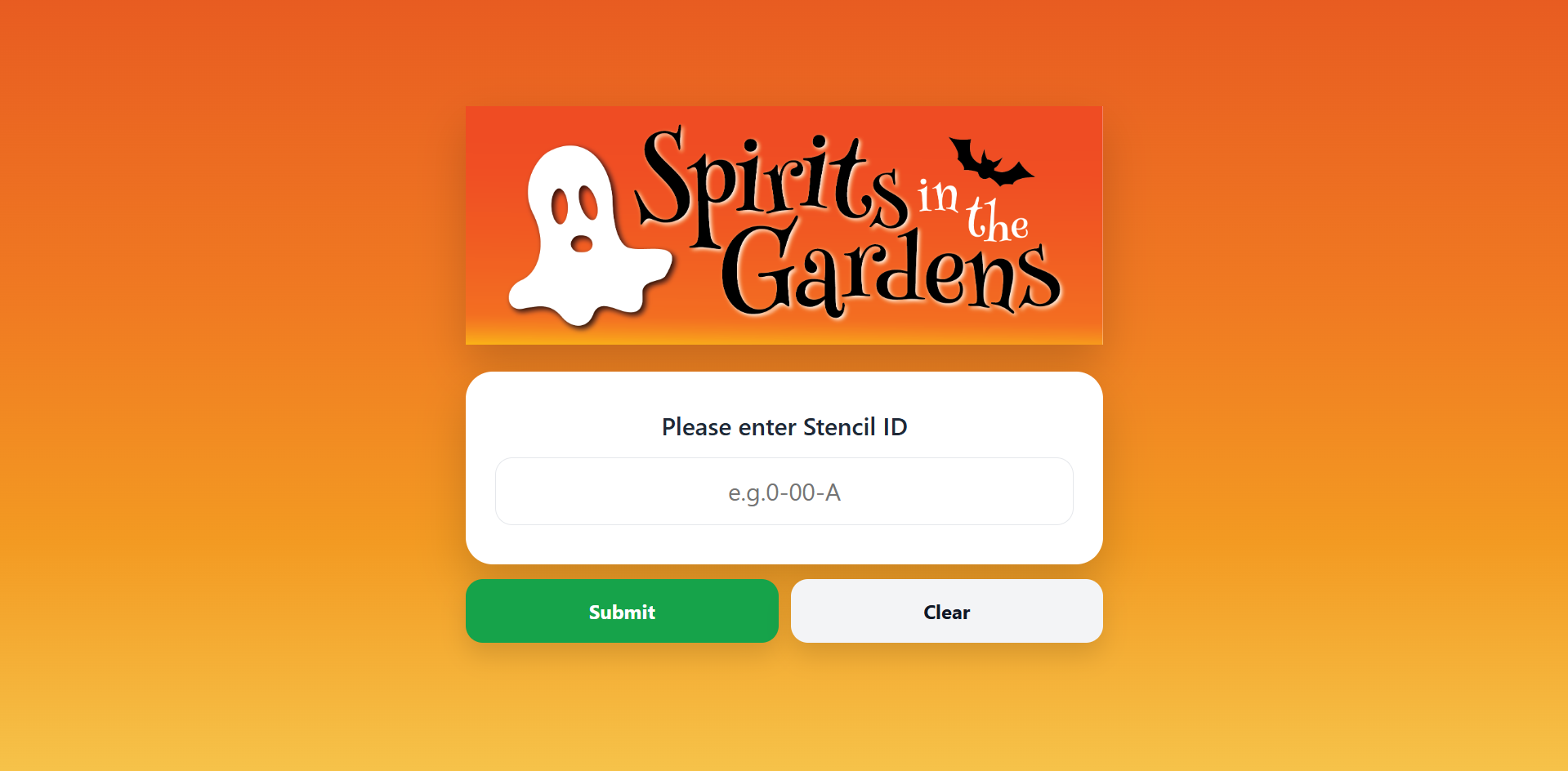

The Volunteer side is the landing page for the application. At the event, Event Volunteers are provided a QR code that will automatically take them to the Stencil Input page of the Volunteer side. Event Volunteers will take the stencil ID provided on the stencil they chose, input it into the text box, and be taken to a Confirmation page where they will either Confirm that is the stencil they have or go back to correct the stencil ID. The next step will be selecting whether the

An Admin Login page was implemented to prevent any malicious actors from gaining access to the stencil database and manipulating the data. A password that is only provided to the Event Admins must be inputted to gain any access to the features provided by the Pumpking Tracker's Admin side. Once verified, Admin users will be taken to the Stencil Selection page.

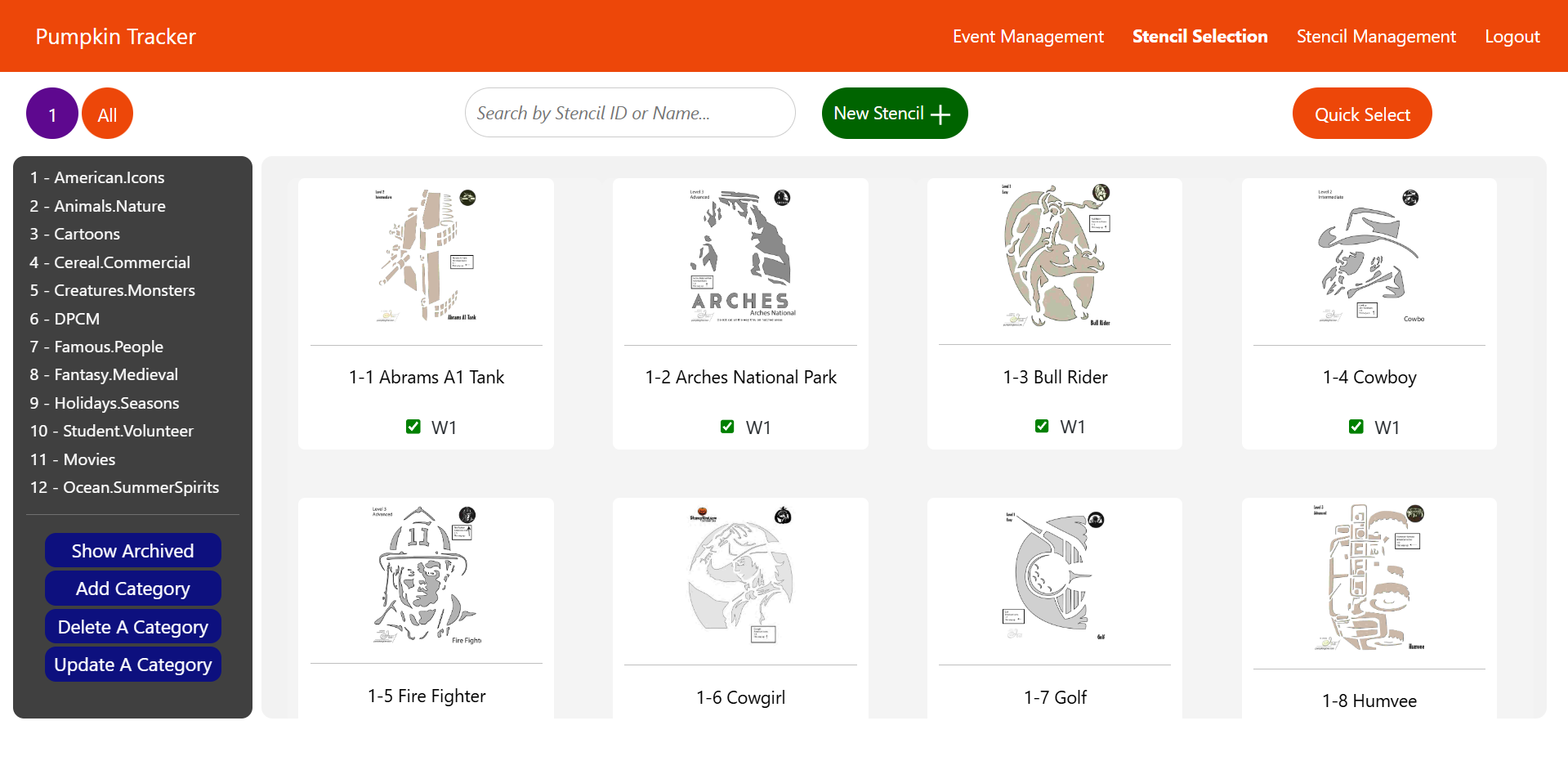

The Stencil Selection page will visualize the stencil data from the stencil database and provides both search functionality by ID or name and filtering functionality by week selected and/or category. Event Admins can also add, delete, and update categories or stencils via the Stencil Selection page. A batch update option known as Quick Select is available, where a stencil can be selected or unselected for the designated week by either typing the stencil ID or scanning a barcode of the stencil ID.

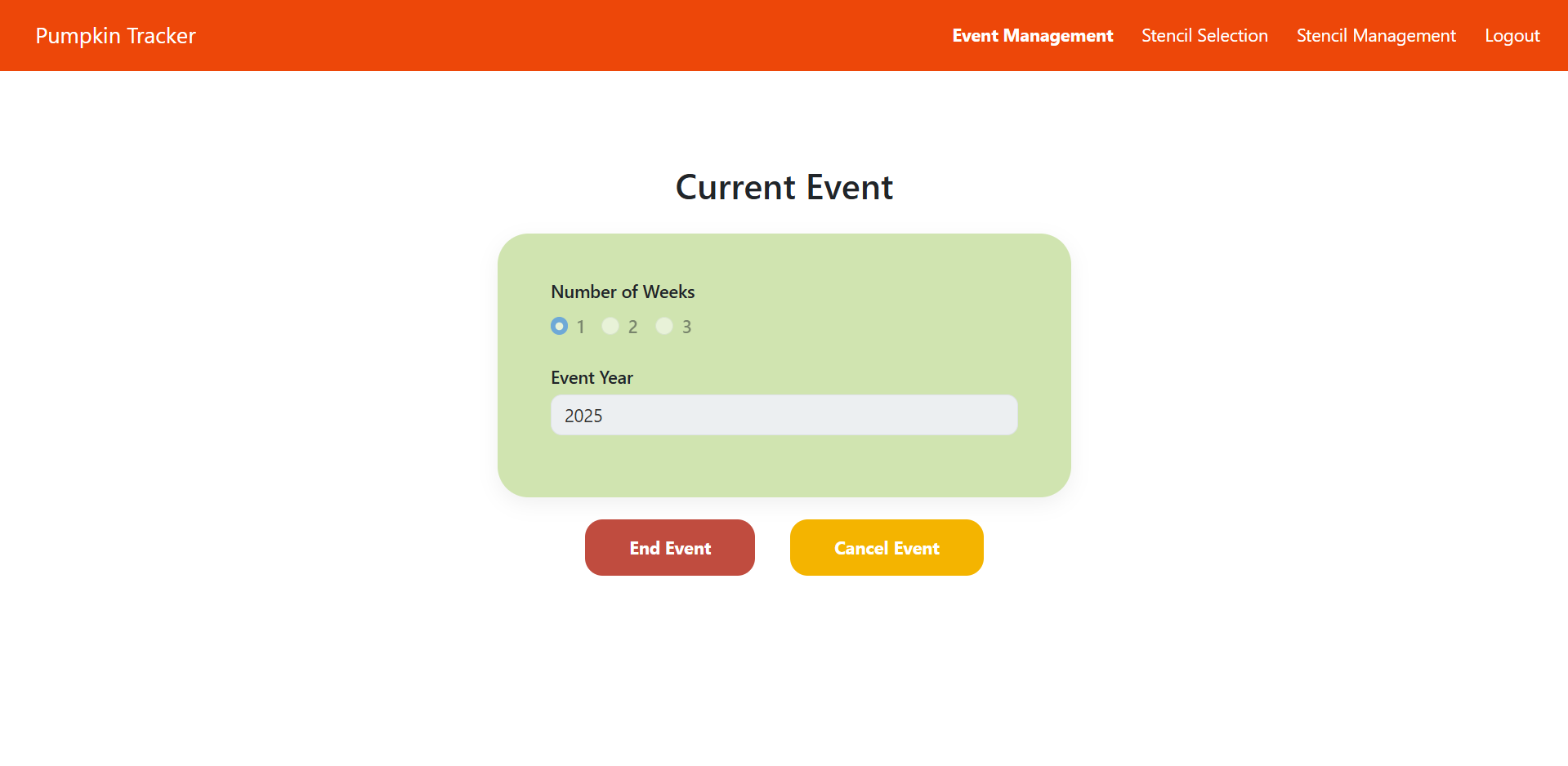

Event Admins can also navigate to the Event Management page to edit the current event, which can be set for 1-3 weeks. An event can be cancelled or ended upon completion, which ending the event will save data collected for future calculations. Events are used by determining what weeks a stencil can be selected for if it is not archived.

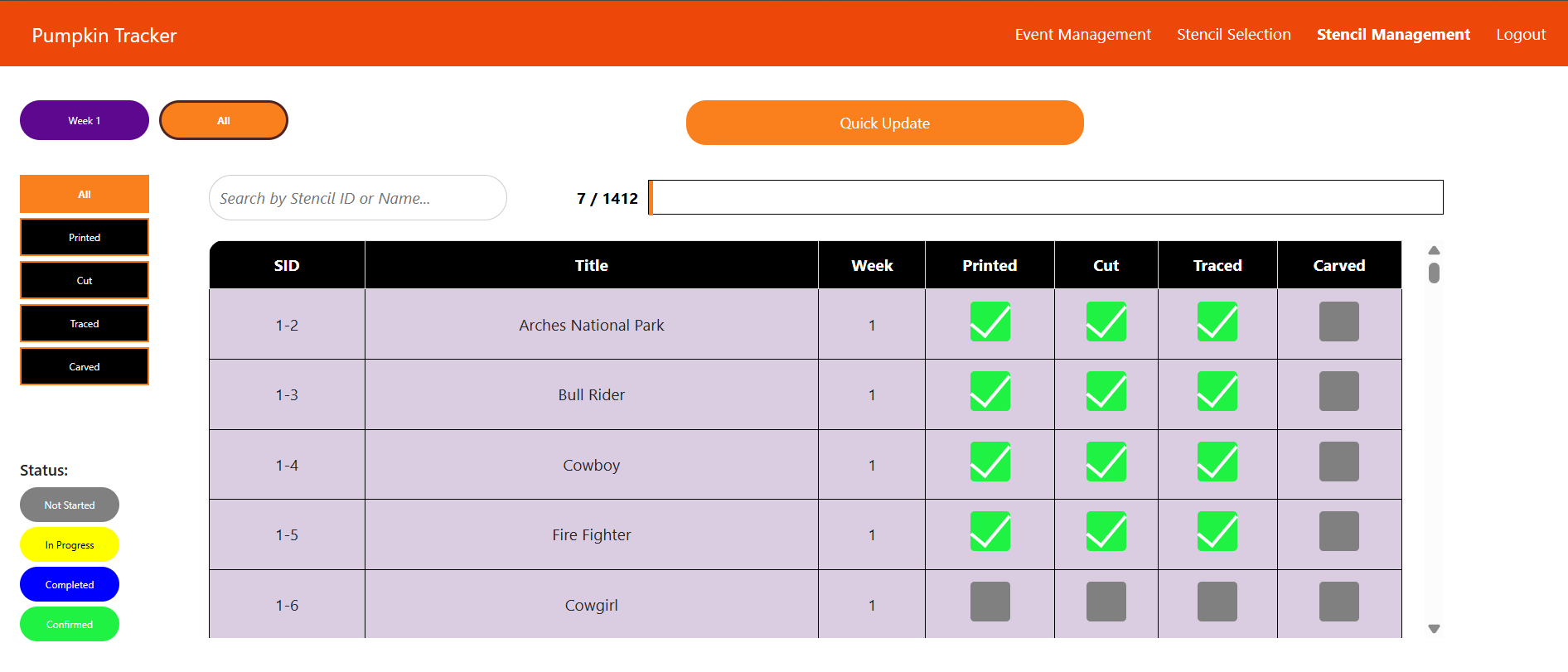

The Stencil Management page on the Admin side visualizes stencil week data—this data includes printed, cut, traced, and carved statuses for each week a stencil has been selected. Each step status is valued 0-3, with each status value meaning Not Started (0), In Progress (1), Completed but not Confirmed (2), and Completed and Confirmed (3). Stencil Management also offers search functionality by ID or name and filtering functionality by week selected, step status, or a specific step. A progress bar also indicates how many stencils out of the total stencils selected have been completed depending on the step and week the data is being filtered by. A batch update option called Quick Update was implemented to allow Event Admins to, similar to the Quick Select function, where stencil week statuses can be updated after manually typing in an ID or scanning a barcode containing the stencil ID.

Pokémon in C/C++ | Source Code

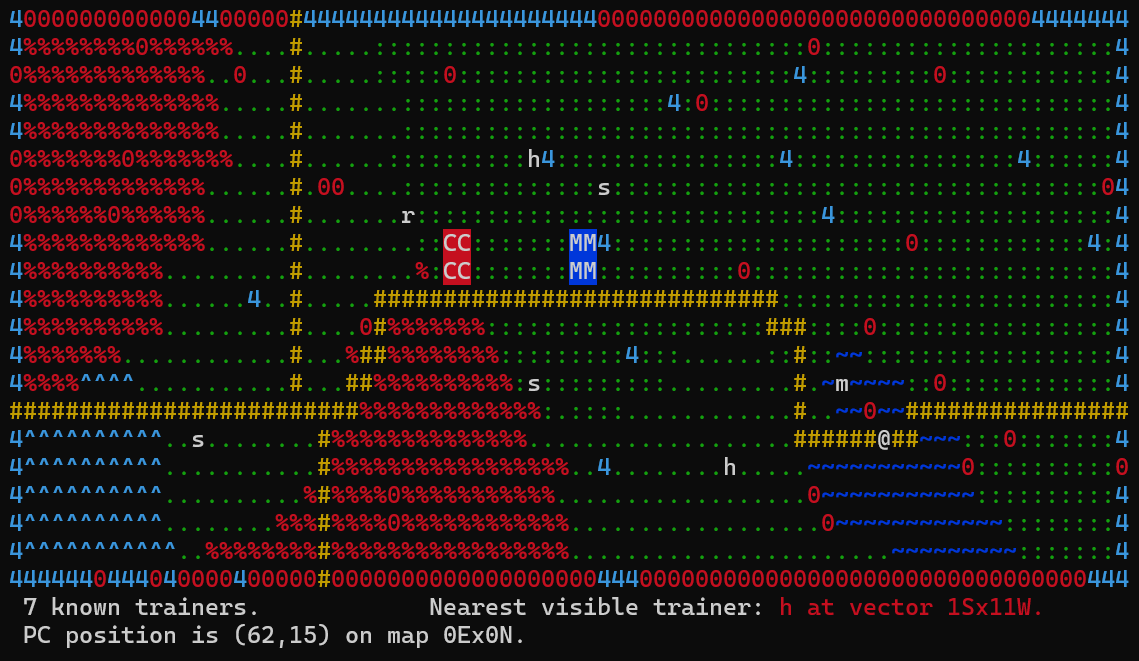

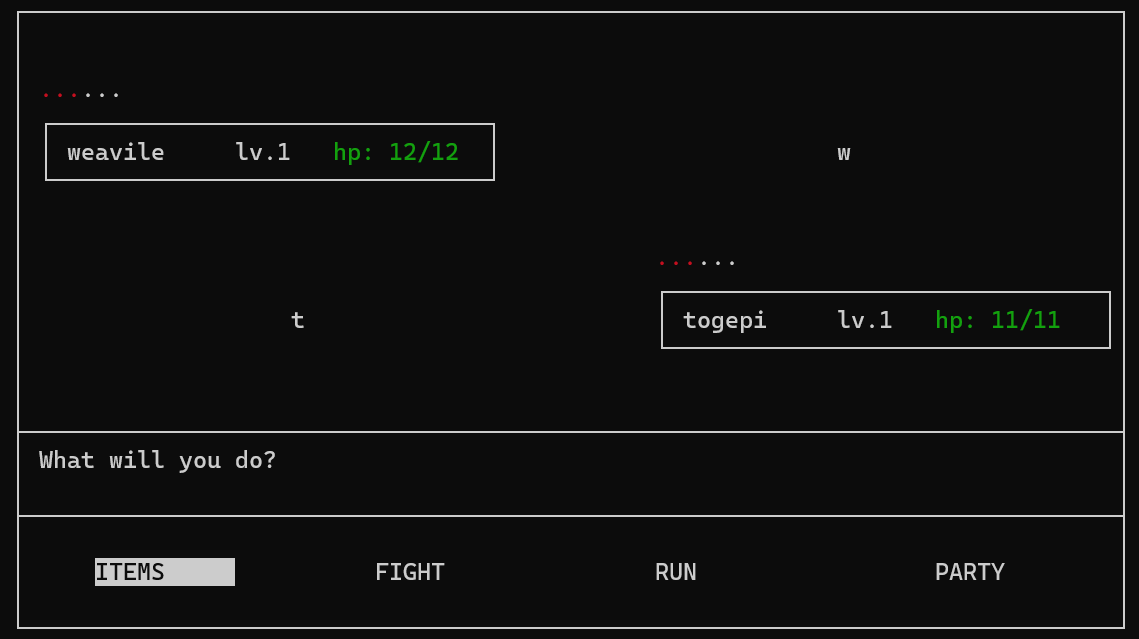

Terminal displays for map and battle sequence

This class project is dedicated to understanding memory management and other advanced coding techniques in C/C++ while creating a roguelite version of Pokémon. Functionalities like dynamic GUI, NPC AI, map generation, map traversal, and battle mechanics were required as a baseline for developing a roguelite with the freedom to add additional features. As an avid Pokémon fan since Gen 4, I programmed this with attempts to remain faithful to the mechanics of the original Pokémon games.

Dynamic memory management was vital to this project, especially considering the full map grid would be comprised of a total of 400 randomly generated maps and at least 7 randomly generated NPCs per map, each having 3 random pokémon in their party. Maps would only be generated upon the PC encountering them, which they would be stored in a world data grid for potential use later use or get free'd once the program is terminated. Instead of printing out each map to the terminal, the ncurses library in C/C++ was included to provide a dynamically changing GUI for the player.

The game is set on a turn loop, with the PC having the highest priority; all NPCs are waiting for the PC to complete their turn before taking theirs. NPC's turn decisions are dependent on their behavior (friendly, neutral, or aggressive) toward the PC and, if aggressive, will determine their next move based on the move costs calculated by an implementation of dijkstra's algorithm for pathfinding to the PC. If the PC gets ensnared into a wild or trainer battle, the battle UI window will be displayed, allowing the PC to either use an item, fight with the current pokémon's moves, switch out with one of their party pokémon, or run (if it's a wild battle). Data for items, pokémon species, movesets, moves, types, statuses, etc. had to be parsed from CSV files provided in a database accessible in the Pyrite server, which get loaded up at runtime prior to generating the first map of the game.

By using these techniques and combining these features, I created a functional roguelite version of Pokémon playable in an 80x24 terminal. Additional functionalities that weren't required but I still implemented include type matchups, solo and party leveling, shiny chances, and the Pokémon Storage System.

CyHealth

Patient data confidentiality and management has high priority in all healthcare service environments. With the growth of technology and increasing risks in cyber security, confidentiality has become a large area of concern. Healthcare providers also desire software solutions for managing and booking appointments, reading and writing to patient data, and providing their availability to their patients.

I worked with a group of other students to design a Mobile app we named CyHealth to resolve this issue. I was one of 2 members delegated to the Frontend, where we developed views for Patients, Receptionists, Doctors/Nurses, and Admins. We evaluated user profiles and the privileges they needed, which boiled down to: Doctors/Nurses having access to all patient data (diagnoses, prescriptions, etc.), their own availability and scheduled appointments with patients, and any appointment requests; Receptionists having access to Patient appointment requests and bookings as well as availabilities of all Doctors/Nurses; Patients having access to their personal data, appointment requests and bookings, and test results; and Admins having access to privileges of workers (Doctors/Nurses and Receptionists).

We developed XML files and Java script files in Android Studio for the Frontend and Maven Projects with IntelliJ for the Backend. To enable client-server communication, we utilized REST API through HTTP requests and established Websockets throughout the app, which Websockets were set in places where it was appropriate to receive real-time updates (i.e., Patient appointment request notifications sent to Receptionist views).
