class: center, inverse, middle <style type="text/css"> .pull-left { float: left; width: 48%; } .pull-right { float: right; width: 48%; } .pull-right ~ p { clear: both; } .pull-left-wide { float: left; width: 66%; } .pull-right-wide { float: right; width: 66%; } .pull-right-wide ~ p { clear: both; } .pull-left-narrow { float: left; width: 30%; } .pull-right-narrow { float: right; width: 30%; } .tiny123 { font-size: 0.40em; } .small123 { font-size: 0.80em; } .large123 { font-size: 2em; } .huge123 { font-size: 4em; } .red { color: red; } .highlight { background-color: yellow; } </style> .huge123[ # Breaking the HISCO Barrier: ## *Automatic Occupational Standardization with OccCANINE* ] #### Christian Møller Dahl, Torben Johansen, Christian Vedel #### University of Southern Denmark, HEDG **Email: christian-vs@sam.sdu.dk** **arXiv: [arxiv.org/abs/2402.13604](https://arxiv.org/abs/2402.13604)** **Updated 2025-11-20** --- # Data examples
.small123[ *Example data from Clark, Cummins Curtis (2022)* ] --- <br> <br> <br> <br> .pull-left-wide[ # This presentation - We solve the problem from the previous slide - Introduce OccCANINE - New results (which does not appear in current working paper) + Based on more training data + Updated architecture + 'oil' (order-invariant-loss) - .red[*No new insights*] ] --- # HISCO codes - Derived from ISCO (International Standard Classification of Occupations) - Invented for the sake of international comparability - Introduced by Leuwen, Maas, Miles (2002) based on ISCO68 - Hiearchical structure well suited for analysis <img src="Figures/HISCO structure.png" width="709px" height="300px" /> --- class: middle # Our solution .pull-left[  .center[ ### OccCANINE ] ] .pull-right[ .middle[ - We train a Neural Network for 27 days on all of the data - Augment input during training .red[ ~10k HISCO codes in minutes ~1 million HISCO codes in a few hours `\(\rightarrow\)` **All with high precision and recall** ] ] ] .footnote[ Canine: Pre-training an Efficient Tokenization-Free Encoder for Language Representation (Clark et al., TACL 2022) ] ??? - *Small* language model - Transformer architecture: CANINE - Character level: fairly robust to typos, spelling mistakes, and changing spelling conventions - Finetuned to predict HISCO codes - **Really fast** -- .pull-right-narrow[ .red[**Please send us some data. We owe you HISCO codes in return**] .red[christian-vs@sam.sdu.dk] ] --- class: middle # State of the art .pull-left-wide[ - **Rule-based & dictionary methods**: Hand-crafted lookup tables, regular expressions, and intensive cleaning deliver decent accuracy but are laborious, brittle, and hard to port to new data (Patel, 2012; Gweon 2017). - **Classical ML pipelines**: Bag-of-words, k-NN, boosting trees, random forests on survey-specific features raise automation but still depend on heavy pre-processing and are typically tuned to one country/system/time period (Schierholz, 2020; Turrell, 2022, van der Heijden 2022). - **Overall**: Most existing solutions are **one-off**—built for a single survey or classification and must be rebuilt for each new context. **OccCANINE is designed as a broad, shared backbone**: multilingual, historical, and easily adapted to multiple occupational coding systems. ] --- # Architecture  --- ## Thanks to data contributors .pull-left-wide[ .tiny123[ | file | Observations | Percent | Language | Source | |-----------------------------|--------------|---------|----------|-----------------------------------------------------------| | DK_census_[x].csv | 5,391,656 | 29.794% | da | Clausen (2015); The Danish National Archives | | EN_marr_cert_[x].csv | 4,046,203 | 22.359% | en | Clark, Cummins, Curtis (2022) | | EN_uk_ipums_[x].csv | 3,026,859 | 16.726% | en | MPC (2020); Office of National Statistics | | SE_swedpop_[x].csv | 1,793,557 | 9.911% | se | SwedPop (2022) | | JIW_database_[x].csv | 966,793 | 5.343% | nl | De Moor & van Weeren (2021) | | EN_ca_ipums_[x].csv | 818,657 | 4.524% | unk | MPC (2020); Statistics Canada | | CA_bcn_[x].csv | 644,484 | 3.561% | ca | Pujades-Mora & Valls (2017) | | HISCO_website_[x].csv | 392,248 | 2.168% | mult | HISCO website | | HSN_database_[x].csv | 184,937 | 1.022% | nl | Mandemakers et al (2020) | | NO_ipums_[x].csv | 147,255 | 0.814% | no | MPC (2020) | | FR_desc_[x].csv | 142,778 | 0.789% | fr | historyofwork.iisg.nl | | EN_us_ipums_[x].csv | 139,595 | 0.771% | en | MPC (2020); Bureau of the Census | | EN_ship_data_[x].csv | 103,023 | 0.569% | en | Schneider & Gao (2019) | | EN_parish_[x].csv | 73,806 | 0.408% | en | de Pleijt, Nuvolari, Weisdorf (2020) | | DK_cedar_[x].csv | 46,563 | 0.257% | da | Ford (2023) | | SE_cedar_[x].csv | 45,581 | 0.252% | se | Ford (2023) | | DK_orsted_[x].csv | 36,608 | 0.202% | da | Ford (2023) | | EN_oclack_[x].csv | 24,530 | 0.136% | en | O-clack | | EN_loc_[x].csv | 23,179 | 0.128% | en | Mooney (2016) | | IS_ipums_[x].csv | 20,459 | 0.113% | is | MPC (2020) | | SE_chalmers_[x].csv | 14,426 | 0.08% | se | Ford (2023) | | DE_ipums_[x].csv | 8,482 | 0.047% | de | MPC (2020); Statistics Netherlands | | IT_fm_[x].csv | 4,525 | 0.025% | it | Fornasin & Marzona (2016) | ] ] .pull-right-narrow[ - A lot of researchers have solved the task of turning strings into HISCO codes - We simply make their work generalizable - I couldn't fit everyone, and people still send us data - Please send us your data at christian-vs@sam.sdu.dk ] --- # OIL: Order-Invariant loss (intuition) .pull-left[ - Many entries contain **multiple occupations**: - *"policeman and farmer"* - *"he fishes and farms"* - These map to several valid HISCO codes: - e.g. `\(61110\)` (Farmer), `\(64100\)` (Fisherman) - For the model, the **set** of codes is what matters `\(\Rightarrow\)` `\(\{61110, 64100\}\)` is correct in **any order** .red[ Standard sequence loss is order-sensitive `\(\Rightarrow\)` wrong penalty for correct but permuted outputs ] ] -- .pull-right[ ```text "he fishes and farms" Target codes: [Farmer, Fisher] Predicted (model): [Fisher, Farmer] Standard loss: ❌ (wrong order) Order-invariant loss: ✅ (same set) ``` #### We solve this while maintaining useful properties - We can take the derivative - Teacher forcing compatible - Efficient to compute ] --- # How to train a generalizable solution? .pull-left[ ### Two principal solutions: 1. Learn every title character by character 2. Learn the concept of a specific occupation (like a human) .red[ - We try to push it towards the second type of solution ] ] .pull-right[ ### How? .small123[ - Random string augmentations: + "he is a farmer" `\(\rightarrow\)` "ht s a frmer" - Dropout: + We disable 10% of neural pathways randomly during training - We make synthetic combinations + "he is a fisher" + "carpenter" `\(\rightarrow\)` "he is a fisher **and** carpenter" - It does not know the language in 25% of cases - We generate adverse examples: Change strings until the model marginally fails *+ gibberish + translated strings* - Training data, validation data, test data and out-of-distribution data ] ] --- # Training in practice .pull-left-narrow[ - 30 days of training - Batch size: 512 - 15.8 million training observations (occupations with HISCO codes) - Model exposed to full training data 50 times - **Note:** *Sequential Decoder* trains much faster than *Flat Decoder* - because of the fewer dimensions of output space ] .pull-right-wide[ .pull-right-wide[  ] ] --- # The product ``` r # Example prompts model.predict("A farmer") model.predict("Tailor of beautiful dresses") model.predict("The train's fireman") ``` -- ``` ## string hisco description ## 1 A farmer 61110 General Farmer ## 2 Tailor of beautiful dresses 79100 Tailor, Specialisation Unknown ## 3 The train's fireman 98330 Railway SteamEngine Fireman ``` --- # Test data performance (1/2) | Decoder | Statistic | **Digits** | | | | | |---------|-----------|-----------|---|---|---|---| | | | 1 | 2 | 3 | 4 | 5 | | *good* | accuracy | 0.977 | 0.968 | 0.964 | 0.961 | 0.960 | | | precision | 0.978 | 0.968 | 0.964 | 0.961 | 0.960 | | | recall | 0.982 | 0.974 | 0.971 | 0.967 | 0.967 | | | f1 | 0.979 | 0.970 | 0.966 | 0.963 | 0.963 | | *fast* | accuracy | 0.979 | 0.971 | 0.967 | 0.964 | 0.964 | | | precision | 0.980 | 0.972 | 0.968 | 0.965 | 0.965 | | | recall | 0.983 | 0.979 | 0.976 | 0.973 | 0.973 | | | f1 | 0.981 | 0.974 | 0.971 | 0.968 | 0.967 | .footnote[ .small123[ *Based on 1M test observations* ] ] --- # Test data performance (2/2) <img src="Figures/Performance_by_lang_greedy.png" width="675px" height="450px" /> --- # Differential error rates .pull-left-narrow[ - Performs best for the most common HISCO codes (99% --> 524 HISCO codes) - (As does squishy wet neural networks) ] .pull-right-wide[  ] --- name: bias # Bias .pull-left-narrow[ - Potential problem: If error rates are correlated with Socio-Economic Status - Turns out its not - [Not in a regression setting either](#bias-reg) ] .pull-right-wide[  ] --- # Out of distribution (manually validated) | Dataset | n | substantial | strict | |-------------------------------|----:|--------------:|---------:| | Copenhagen Burial Records | 367 | 0.962 | 0.890 | | Norwegian Student Biographies | 500 | 0.950 | 0.874 | --- # More OOD testing (already labelled data) | Dataset | Observations | 1 | 2 | 3 | 4 | 5 | |-------------------------------|-------------:|------:|------:|------:|------:|------:| | **Panel A: Raw data** | | | | | | | | Swedish Strikes | 1,430 | 0.957 | 0.946 | 0.927 | 0.897 | 0.896 | | Dutch Wealth Tax | 200 | 0.938 | 0.892 | 0.780 | 0.767 | 0.760 | | Italian Marriage Certificates | 26,287 | 0.877 | 0.866 | 0.854 | 0.835 | 0.828 | | German Denazification Survey | 800 | 0.785 | 0.731 | 0.665 | 0.647 | 0.638 | | Danish West Indies | 166,563 | 0.704 | 0.684 | 0.680 | 0.651 | 0.645 | | UK Bankruptcies | 581,912 | 0.754 | 0.676 | 0.656 | 0.641 | 0.638 | | **Panel B: Removed HISCO code ‘-1’: No occupation** | | | | | | | | Danish West Indies | 101,619 | 0.828 | 0.795 | 0.788 | 0.741 | 0.732 | | UK Bankruptcies | 326,400 | 0.922 | 0.783 | 0.747 | 0.721 | 0.720 | --- # What does OccCANINE 'see'? .pull-left-narrow[ - The model learns to understand occupational structures *semantically* - *This is evident from the the embeddings: 768 dimensions reduced to 2* - Natural starting point for other general tasks related to occupation `\(\rightarrow\)` ] .pull-right-wide[ .panelset[ .panel[.panel-name[CANINE] .center[

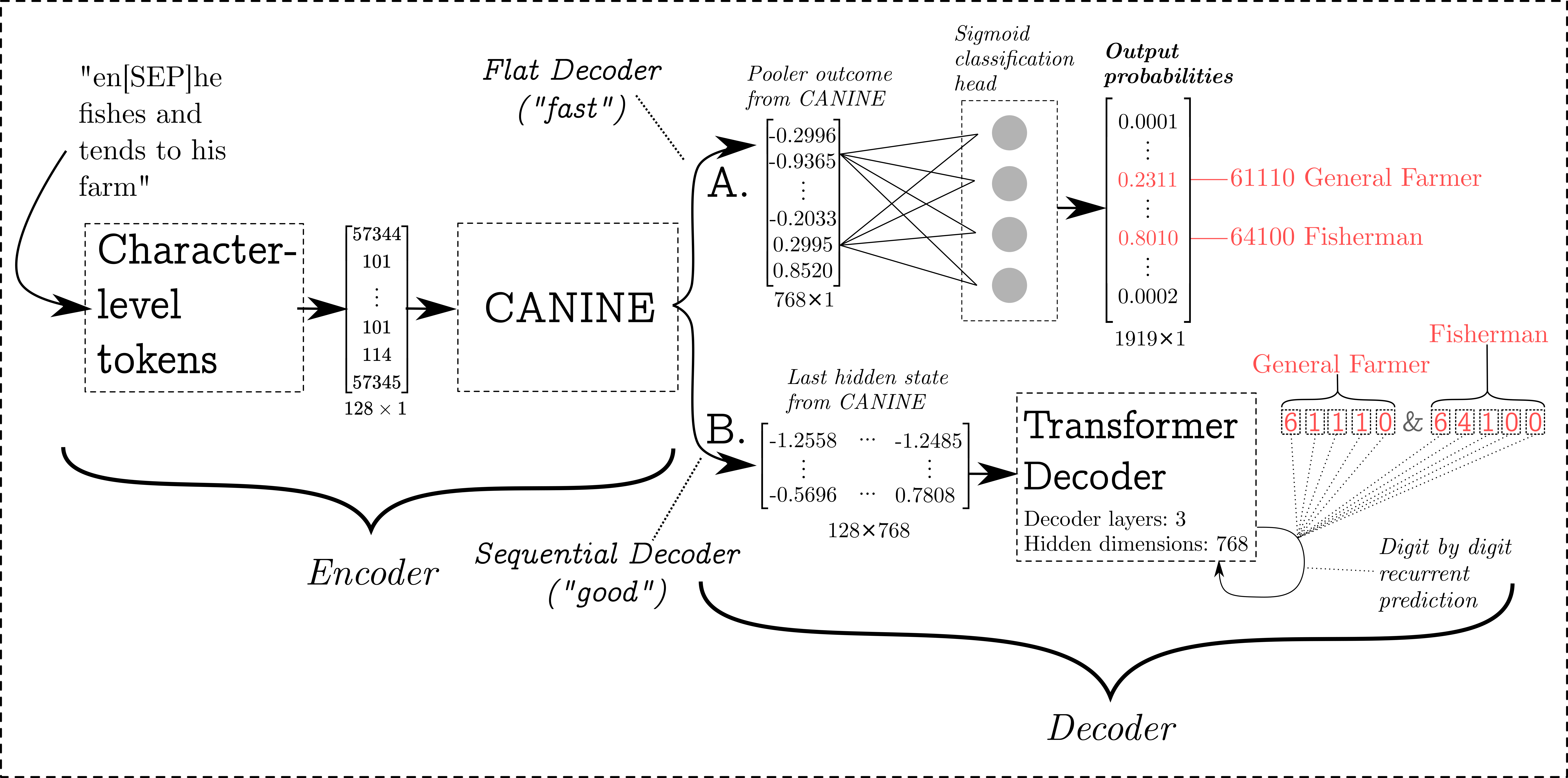

] ] .panel[.panel-name[OccCANINE]
] ] ] --- class: middle # Demonstration .pull-left-narrow[ - Everything is open source. - You can use our method with basic Python-skills - Most functionalities demonstrated here: [colab](https://github.com/christianvedels/OccCANINE/blob/main/OccCANINE_colab.ipynb) ] .pull-right-wide[ <iframe width="560" height="315" src="https://www.youtube.com/embed/d8dR5-clJeQ?si=R6mPJ0Yn2KGXKy-B" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe> ] --- # Other systems: What about ... .pull-left-narrow[ ... OCC1950 (US censuses) ... OCCICEM (UK censuses) ... ISCO-68 ... and so on? **Our solution also applies to those cases with finetuning** ] -- .pull-right-wide[ #### Panel A: Full training data *~20 days of finetuning - millions of observations* | Target system | Accuracy | F1-score | |---------------|----------|----------| | ISCO-68 | 0.938 | 0.958 | | OCCICEM | 0.974 | 0.977 | | OCC1950 | 0.866 | 0.875 | #### Panel B: Small scale training *~20 .red123[hours] of finetuning - 10.000 observations* | Target system | Accuracy | F1-score | |---------------|----------|----------| | ISCO-68 | 0.822 | 0.844 | | OCCICEM | 0.857 | 0.860 | | OCC1950 | 0.805 | 0.813 | ] --- # Other applications - Profitt et al (2025): Uses it to assist in linking British census data - Bentzen et al (2024): Measure of social status to study assimiliation - Jayes (2025): High skilled engineers in the age age electrification in Sweden - Ford (2025): Early university students - Görges et al (2025): Occupational shifts from railways in Denmark - Chilosi et al (2025): Smithian Growth in Britain - Andesson (2025): Labour market assimilation in historical Sweden - Vedel (2025): First nature geography and economic development - Fasnacth (2025): Identity and social change - etc. `\(\rightarrow\)` *Open source - we're still developing.* --- class: middle # Conclusion .pull-left[ - Something that took weeks, months and years, now takes an afternoon - Enables new research - Enables more time on caring about the quality of sources and their nature - Updated version released soon ] .pull-right[ **Feel free to reach out** Twitter: @ChristianVedel BlueSky: @christianvedel.bsky.social christian-vs@sam.sdu.dk See guide on YouTube: https://youtu.be/BF_oNe-sABQ?si=Ef1YrkK43Ln_IHJS ] --- class: middle, inverse, center .huge123[**OccCANINE**] <img src="Figures/logo_offwhite.png" width="150px" height="150px" /> .footnote[ .small123[ *Logo: Matt Curtis + Bing image* ] ] --- class: middle # Appendix --- name: bias-reg # Bias regression analysis .pull-left-narrow[ - We run regressions of the form: `$$\text{Error}_{h} = \alpha + \beta_1 \text{SES}_{h} + \epsilon_{h}$$` - Where `\(h\)` is a HISCO code - `\(\text{Error}_{h}\)` is the error rate for HISCO `\(h\)` - `\(\text{SES}_{h}\)` is the average socio-economic status for HISCO `\(h\)` ] .pull-right[ .small123[ | | Accuracy (1) | F1 score (2) | Precision (3) | Recall (4) | |-----------------------------|-------------:|-------------:|--------------:|-----------:| | **Panel A: SES and performance** ||||| | SES value | -0.0005* | -0.0005* | -0.0005* | -0.0005* | | (SE) | (0.0003) | (0.0003) | (0.0003) | (0.0003) | | **Panel B: Controlling for training obs.** ||||| | SES value | -0.0004 | -0.0004 | -0.0004 | -0.0004 | | (SE) | (0.0003) | (0.0003) | (0.0003) | (0.0003) | | `\(\log(n)\)` | 0.0045** | 0.0046** | 0.0044** | 0.0049***| | (SE) | (0.0018) | (0.0018) | (0.0018) | (0.0018) | | Observations | 1,055 | 1,055 | 1,055 | 1,055 | *Note* `\(*\)`: p$<0.10$, `\(**\)`: p$<0.05$, `\(***\)`: p$<0.05$, ] ] .footnote[ [Back](#bias) ] --- # Application 1: Copenhagen Burial Records *Data from CPH burial records - 95% accuracy* *388,057 Copenhageners from around ~1861 to ~1911* .small123[

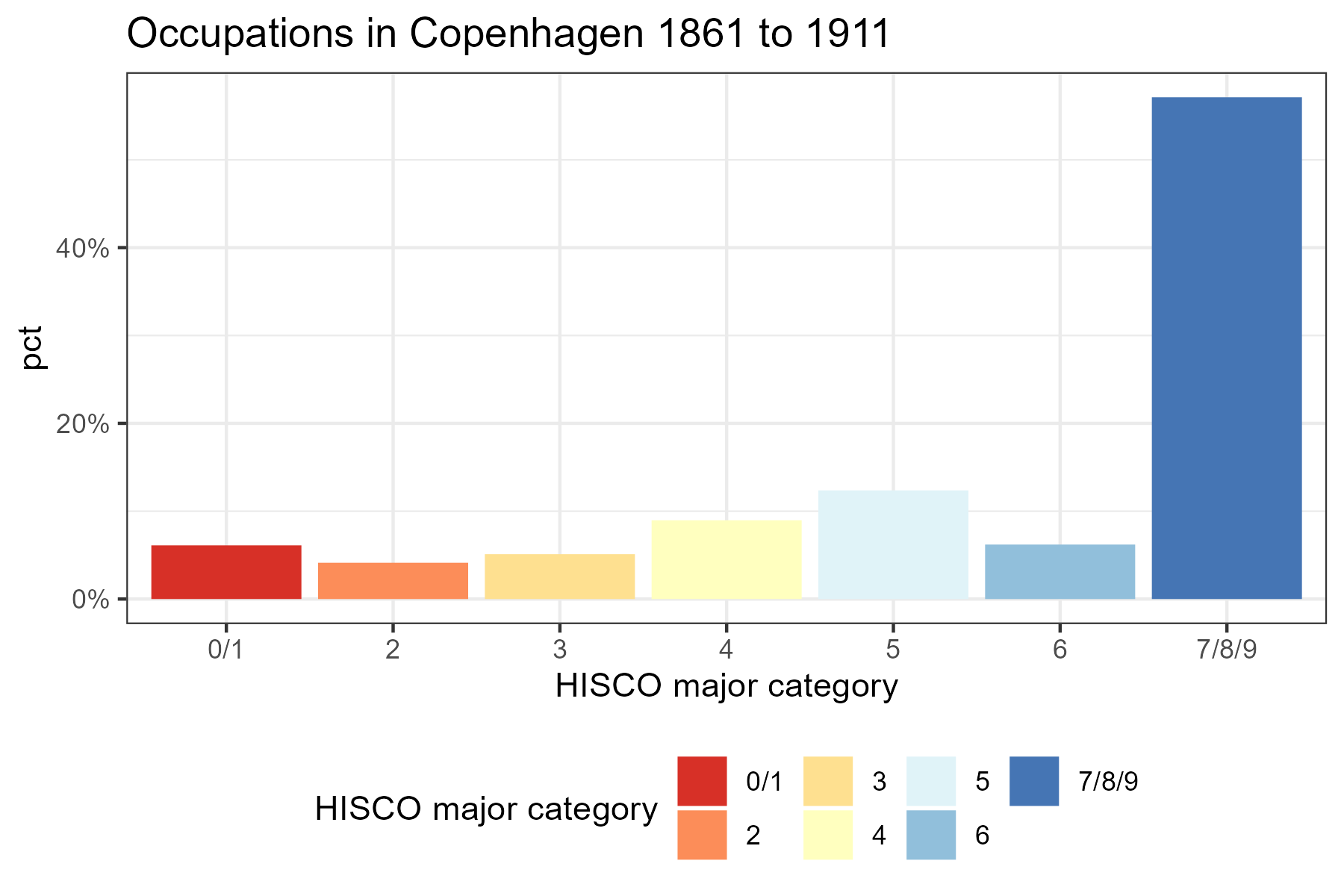

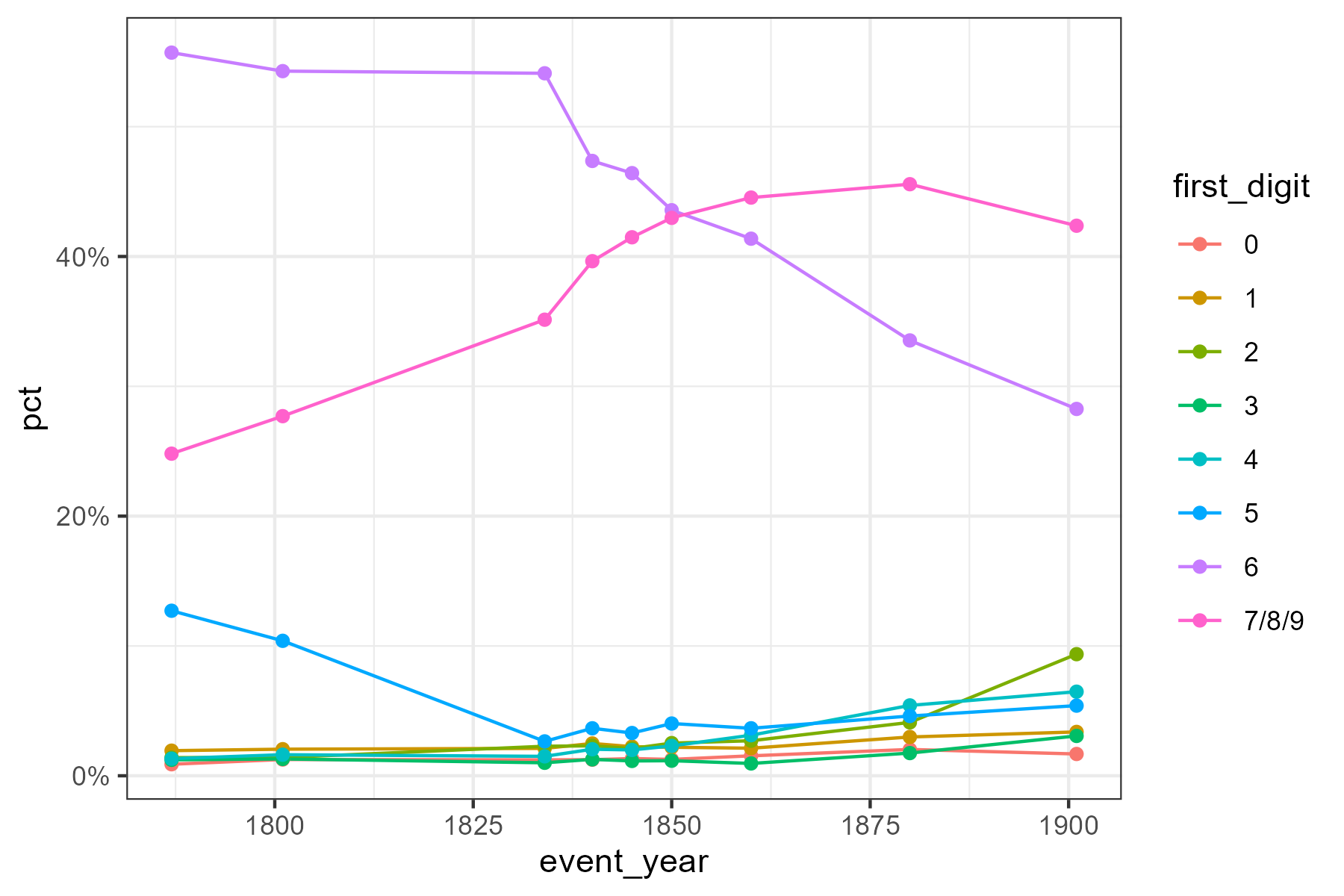

] .footnote[ Data from Link Lives. See https://link-lives.dk/ ] --- # Application 1: Copenhagen Burial Records  --- class: middle # Application 2: Danish Census data (1787-1901) .pull-left-wide[ - Danish censuses 1787-1901 - 13.5 mil. observations - Contains a string every year describing peoples occupation - We can turn these 13.5 million descriptions into HISCO codes in ~2 hours on a laptop with 96% accuracy - Census data for 1787, 1801, 1845, 1880 was part of the training data of OccCANINE #### Available: [Vedel, Christian; Dahl, Christian Møller; Johansen, Torben S. D., 2024, "HISCO codes for Danish Census data", https://doi.org/10.7910/DVN/WZILNI, Harvard Dataverse, V3](https://doi.org/10.7910/DVN/WZILNI) ] .pull-right-narrow[  ] --- # What were the occupational shifts? .pull-left-narrow[ - From farming to manufacturing ] .pull-right-wide[  ] --- # Training - technical details .pull-left[ - We use Adam optimizer (adaptive momentum optimizer) - Two loss functions: + Binary Cross-entropy loss for 'fast' decoder + Order-invariant loss (oil) for 'good' decoder - All runs efficiently with *teacher forcing*. I.e. we predict all digits in one go, excluding 'illegal' information. ] --- # OIL: Order-Invariant loss (intuition) .pull-left[ - Many entries contain **multiple occupations**: - *"policeman and farmer"* - *"he fishes and farms"* - These map to several valid HISCO codes: - e.g. `\(61110\)` (Farmer), `\(64100\)` (Fisherman) - For the model, the **set** of codes is what matters `\(\Rightarrow\)` `\(\{61110, 64100\}\)` is correct in **any order** .red[ Standard sequence loss is order-sensitive `\(\Rightarrow\)` wrong penalty for correct but permuted outputs ] - Note: This is trivial in the 'fast' decoder: Cross Entropy ] -- .pull-right[ ```text "he fishes and farms" Target codes: [Farmer, Fisher] Predicted (model): [Fisher, Farmer] Standard loss: ❌ (wrong order) Order-invariant loss: ✅ (same set) ``` #### We solve this while maintaining useful properties - We can take the derivative - Teacher forcing compatible - Efficient to compute ] --- # Order-invariant loss (details) .small123[ - Split prediction into `\(N\)` candidate code blocks, each of length `\(b\)`. - For each candidate `\(i\)` and target `\(j\)`, compute block loss `$$L_{ij} = \frac{1}{b} \sum_{\ell = 0}^{b - 1} \mathrm{CE}\big(\hat{Y}_i[\ell], Y_j[\ell]\big).$$` - Let `\(k\)` be the number of valid target codes. **Order-invariant matching across blocks:** `$$L_{\mathrm{inv}} = \frac{1}{k} \sum_{j = 0}^{k - 1} \min_{0 \le i < k} L_{ij}.$$` Each true code is matched to its best-predicted block. - We need to promote sparcity. Let `\(\mathcal{M}_i\)` be a mask indicating if block `\(i\)` should *not* contain a valid code. `$$L_{\mathrm{pad}} = \frac{1}{N} \sum_{i = 0}^{N - 1} \mathcal{M}_i L_{\mathrm{pad}}^i.$$` Where `\(L_{\mathrm{pad}}^i\)` is 0 if block `\(i\)` predicts the 'padding' code, and CE to padding otherwise. - Final objective for the 'good' decoder: `$$L = L_{\mathrm{inv}} + \lambda L_{\mathrm{pad}},$$` with `\(\lambda\)` tuning how hard we penalize spurious codes. ] --- # The nature of the mistakes .panelset[ .panel[.panel-name[Example 1] .center[ <img src="Figures/CANINE_preds_w_lang/RowID_EN_marr_cert3742836.png" width="675px" height="450px" /> ] ] .panel[.panel-name[Example 2] .center[ <img src="Figures/CANINE_preds_w_lang/RowID_EN_parish33715.png" width="675px" height="450px" /> ] ] .panel[.panel-name[Example 3] .center[ <img src="Figures/CANINE_preds_w_lang/RowID_EN_uk_ipums2325523.png" width="675px" height="450px" /> ] ] .panel[.panel-name[Example 4] .center[ <img src="Figures/CANINE_preds_w_lang/RowID_DK_census1787182508.png" width="675px" height="450px" /> ] ] ]
