# Last time
.pull-left[
- Causality
]

---
class: middle
# Today's lecture
.pull-left[
**Two tedious common tasks:**
- Record Linking
- Topic Modeling
]

.pull-right-narrow[
![Flows](Figures/0_Transformations, dataflows, magical, mathematical _esrgan-v1-x2plus.png)
]

---

.pull-left[
- **Record Linking**:
  - Given two sets of records, we want to identify the same entities
- **Massive Data Streams**:
  - News articles, social media posts, and market reports.
- **Challenge**:
  - No standard representation for entities (e.g., “Johnson & Johnson” vs. “J&J”).
- **Key Goal**:
  - Link mentions of the same company, executive, or event across datasets.
- **Example**:
  - Match earnings reports to market news referring to “Johnson & Johnson” or “JNJ.”
- **Content**:
  - Today's lecture draws a lot on recent advances in census linking - lessons apply readily elsewhere
]

---

.pull-left[
- **String Similarity Measures**:
  - Handle variations in names and spelling differences.
  - Levenshtein distance and Jaro-Winkler improve match accuracy.
- **Blocking Variables**:
  - Efficiently narrow down candidate matches by grouping (e.g., by dates, regions).
  - Blocking needs to be immutable facts.
- **Example**:
  - Link “J&J” in social media with “Johnson & Johnson” in news reports for sentiment analysis.
]

---
# Example
.panelset[
.panel[
.panel-name[Financial data]

<div class="datatables html-widget html-fill-item" id="htmlwidget-267053dcb8cd67cfff8b" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-267053dcb8cd67cfff8b">{"x":{"filter":"none","vertical":false,"data":[["1","2","3","4","5","6","7","8","9","10","11","12","13"],[101,102,103,104,105,106,107,108,109,110,111,112,113],["META","TSLA","AAPL","MSFT","TSLA","META","AAPL","MSFT","META","TSLA","NVDA","GOOGL","ORCL"],[5000,2000,1000,3000,2500,5200,1200,3100,5300,2600,6000,4000,500],["Q1 2024","Q1 2024","Q1 2024","Q1 2024","Q1 2024","Q2 2024","Q2 2024","Q2 2024","Q2 2024","Q2 2024","Q2 2024","Q2 2024","Q2 2024"]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>Record_ID<\/th>\n      <th>Ticker<\/th>\n      <th>Revenue<\/th>\n      <th>Quarter<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"pageLength":6,"columnDefs":[{"className":"dt-right","targets":[1,3]},{"orderable":false,"targets":0},{"name":" ","targets":0},{"name":"Record_ID","targets":1},{"name":"Ticker","targets":2},{"name":"Revenue","targets":3},{"name":"Quarter","targets":4}],"order":[],"autoWidth":false,"orderClasses":false,"lengthMenu":[6,10,25,50,100]}},"evals":[],"jsHooks":[]}</script>

]
.panel[
.panel-name[Headlines data]

<div class="datatables html-widget html-fill-item" id="htmlwidget-60a85ae7dcb67108aa49" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-60a85ae7dcb67108aa49">{"x":{"filter":"none","vertical":false,"data":[["1","2","3","4","5","6","7","8","9","10"],[1,2,3,4,5,6,7,8,9,10],["Meta posts record quarterly earnings","Tesla announces new AI capabilities","Apple focuses on green energy","Microsoft faces antitrust concerns","Tesla reports strong sales growth","Meta expands its VR division","Spotify explores new podcast monetization models","Netflix launches new global ad-supported tier","Oracle plans to revive java game dominance","Alphabet will base future searches on mechanical computation"],["Meta","Tesla","Apple","Microsoft","Tesla","Meta","Spotify","Netflix","Oracle","Alphabet"],["2024-01-10","2024-01-12","2024-01-13","2024-01-14","2024-01-15","2024-01-16","2024-04-10","2024-04-15","2024-03-11","2024-03-12"]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>News_ID<\/th>\n      <th>Headline<\/th>\n      <th>Company<\/th>\n      <th>Date<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"pageLength":6,"columnDefs":[{"className":"dt-right","targets":1},{"orderable":false,"targets":0},{"name":" ","targets":0},{"name":"News_ID","targets":1},{"name":"Headline","targets":2},{"name":"Company","targets":3},{"name":"Date","targets":4}],"order":[],"autoWidth":false,"orderClasses":false,"lengthMenu":[6,10,25,50,100]}},"evals":[],"jsHooks":[]}</script>

]
]

---
# String Distance Measures
.pull-left[
- **Common String Distance Metrics**:
  + **Levenshtein Distance**: Counts insertions, deletions, and substitutions.
  + **Jaro-Winkler**: Focuses on common prefixes.
  + **Hamming Distance**: Simple metric for strings of equal length.

]

.pull-right-narrow[
**Levenshtein Example**:
kitten → sitting
1. Sub 'k' → 's': `sitten`
2. Sub 'e' → 'i': `sittin`
3. Insert 'g': `sitting`
]

---
# Jaro-Winkler Distance
.pull-left[
- Weighted similarity measure:

+ Gives higher weight to common prefixes.
  + More robust for small variations.
Example: "jellyfish" vs. "smellyfish"

``` python
from nltk.metrics.distance import edit_distance, jaro_similarity

# Strings to compare
str1, str2 = "jellyfish", "smellyfish"
str3, str4 = "jellyfish", "jellyfic"

# Levenshtein distance
lev_dist1 = edit_distance(str1, str2)
lev_dist2 = edit_distance(str3, str4)

# Jaro-Winkler similarity
jw_sim1 = jaro_similarity(str1, str2)
jw_sim2 = jaro_similarity(str3, str4)
```
]

``` python
print(f"Levenshtein: {lev_dist1}")
```

```
## Levenshtein: 2
```

``` python
print(f"Levenshtein: {lev_dist2}")
```

```
## Levenshtein: 2
```

``` python
print(f"Jaro-Winkler: {jw_sim1}")
```

```
## Jaro-Winkler: 0.8962962962962964
```

``` python
print(f"Jaro-Winkler: {jw_sim2}")
```

```
## Jaro-Winkler: 0.8842592592592592
```
]
]

---
# Linking steps

**Source A**: Financial data; **Source B**: News data

.small123[
#### 2. Perform blocking
- We will only consider data from source **B**, which is in Q1 2024
- (Why not consider all of it?)
- We will now refer to the blocked version of **B** as **B'**
]

.small123[
#### 3. Run comparison
- Compare (distance/divergence) 'META' to all the the entity names in **B'**
- "META"="Meta"? "META"="Tesla"?, "META"="Nvidia", ...?
]

--
.small123[
#### 5. Repeat and make final decisions
- Repeat process for all data and make final decision
]

---
# The complications (1/3)

- Start with 'TSLA' in Q1 2024
- We can eliminate 'Spotify', 'Netflix', 'Oracle', 'Alphabet' by blocking (none in Q1)
- `LevDist('TSLA', x) for x in ['Meta', 'Tesla', 'Apple', 'Microsoft']`
  + [4, 4, 5, 9]
  + **"TSLA" is equally likely to be "Meta" or "Tesla"**
--

- Now we convert everything to lower case and repeat
- `LevDist('tsla', x) for x in ['meta', 'tesla', 'apple', 'microsoft']`
  + [3, 1, 4, 8]
  + **"Tesla" is the most likely match to "TSLA"**

**Takeaway:** Forgetting to lowercase completely ruined the matching

---
# The complications (2/3)

### First step

- Start with 'GOOGL' in Q2 2024
- We can eliminate 'meta', 'tesla', 'apple', 'microsoft' by blocking (none in Q2)

- `LevDist('googl', x) for x in ['spotify', 'netflix', 'oracle', 'alphabet']`
  + [6, 6, 5, 8]: "GOOGLE" is likely to be "oracle"

- We eliminate 'oracle' from our future searches (since we know that 'googl'='Oracle')

---
# The complications (3/3)

### Second step

- Now we get to 'ORCL' in Q2 2024
- We can eliminate 'meta', 'tesla', 'apple', 'microsoft' by blocking (none in Q2)
- We can eliminate 'Oracle' because it was already matched

- `LevDist('orcl', x) for x in ['spotify', 'netflix', 'alphabet']`
  + [6, 6, 8]: "ORCL" is likely to be "spotify" or "netflix"

**Result**: We matched "GOOGL" to "Oracle" and "ORCL" to "Spotify" or "Netflix".
**Correct link**: "GOOGL" to "Alphabet" and "ORCL" to "Oracle"
**Takeaway:** First best matches are not universally best matches

---
# Approaches

--
### Simplest solution
- Match it manually

--
### Better solution
- Produce dictionary of e.g. stock ticker names versus full names
- Run prediction
- Manually verify

--
### Scalable solution
- Run fully automatic matching
- No 'best' method.
- Experience pain and lost sleep

**Note: All approaches are error-prone and causes bias**

---
class: middle
# The Computational Challenge of Linking

.pull-left[
### High Dimensionality
- As dataset sizes grow, the number of potential comparisons increases dramatically.
  - **Example**: Linking 10^6 records in **Dataset A** to 10^6 records in **Dataset B** requires up to 10^12 comparisons without blocking.
- Blocking reduces this, but the complexity grows with:
  + Number of blocking keys (e.g., dates, regions).
  + Number of candidates within blocks.
  + Immutable facts are not always immutable: Date of birth might change

]

### Trade-offs in Blocking
- **Coarse Blocking**:
  - E.g. year instead of exact date
  - Risk of problematic matches
  - Lower probability of false negative matches
  - High recall
- **Fine Blocking**:
  - E.g. exact date
  - Captures more true matches but misses many relevant matches
  - High precision
- Theoretical optimum (given preferences) exists, but hard to find
]

---
class: middle, inverse
# Case: Census Linking

---
class: middle

# What to take from this case

- Seemingly strong blocking variables might not be so strong
- There is noise in the matching variables, which is hard to overcome
- There are (potentially relatively surmountable) problems, which have not been solved

---
class: middle
# Linking Historical Census Data

.pull-left-wide[
- No unique identifiers for people (e.g., CPR)
- Clearly defined entities: People
- Data spans decades and millions of records.
- Danish example: https://link-lives.dk/en/about-link-lives/
]

---
class: middle
# Challenges

.pull-left-narrow[
- **Ambiguous Records**:
  - Name variations and misspellings.
    + "Johannes", "Johan", "Hans", "John"
    + Relative Lev. Dist. from Hans to John: 100%
  - Age misreporting
    + Age heaping
  - High mobility leads to incomplete records.
    + Can you block on location?
]

```
## Warning: package 'Rcpp' was built under R version 4.4.3
```

.pull-right-wide[
![Age heaping](Figures/Age_heaping_India.png)
.small123[
Source: https://timriffe.github.io/DemoTools/articles/Age-heaping_quality_with_Demotools.html
]

]

---
class: middle
## Blocking Strategies

.pull-left[
- Use immutable facts (e.g., birth year and place).
- Race does not work very well in some cases
- It is hard to be over optimistic on how well people report basic facts about themselves
- Balance between precision and recall.
- Use age ranges instead of exact ages, or use some distance measure e.g. `$1/(age_i - age_j)$`
]

---
# It will never be perfect

.pull-left[
- There is a frontier of matching rate versus accuracy
- It will always exist
- Choices needs to be made on what kind of problems you prefer
]

.pull-right[

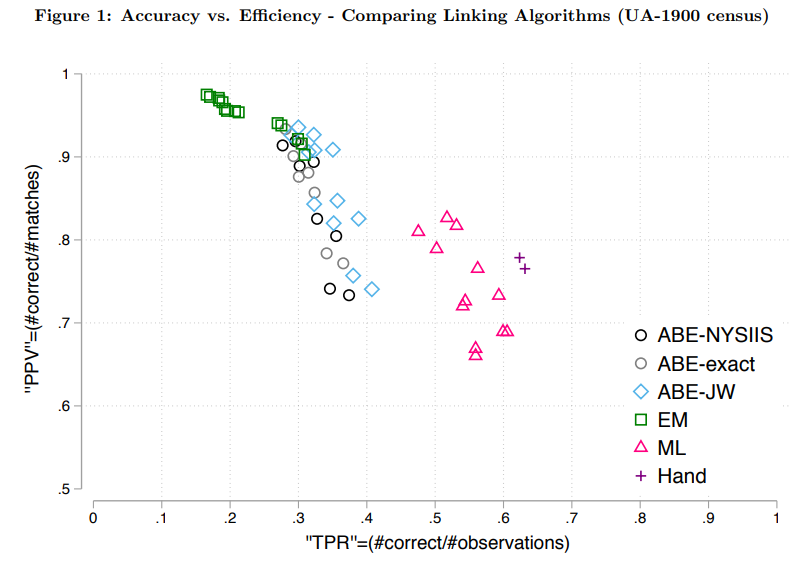

![Trade-off](Figures/2020 Abamitzky, Boustan, Eriksson, Feigenbaum, Pérez, Fig1.PNG)
*Figure 1 from Abamitzky et al (2020)*
]

---
# Bias (1/2)

- Imagine you are interested in computing peoples lifetime income profiles across geography (important in market segmentation)
- Can you trust estimates based on linked samples?
--

- Generally no
- Unique names are easier to match
- Unique names are more common for people with higher income

---
# Bias (2/2)

- Gets more complicated in regression analysis:

`$$\log(Income_{i,2}) = \log(Income_{i,1})\beta_1 + \textbf{Z}\delta + \varepsilon_i$$`
Would estimate intergenerational mobility if:
1. We know that the sample is not selected
2. There is only limited measurement error

---
class: middle

# Advice
1. **Avoid it**: Avoid having to do linking by providing unique ids to all your data. Tell team members, that they are potentially causing serious harm if they don't.
2. **Accept defeat**: It will never be perfect. Instead you face a trade-off between false positives and false negatives as well as seleciton bias
3. **Efficient use of time**: Are you spending *3 weeks* developing something to save *3 days of manual work*? Then don't.
4. **Human-computer-hybrid**: Often it is useful to produce a (bad) link with string distance manually improve it.

---
class: middle
# Further reading
- For a more formalized approach: Fellegi-Sunter model
- [Introduction to Fellegi-Sunter model](https://moj-analytical-services.github.io/splink/topic_guides/theory/fellegi_sunter.html)

---
# Topic Modeling
.pull-left[
- A common issue when dealing with text, is that we want to extract topics
- *This is an unsupervised learning task*
  + E.g. clustering
- We can derive valuable clusters from the classical approach 'Bag of words'
  + k means
  + Latent Diriclet Allocation
- Great results from more modern approaches
  + K means - just in embedding space
]

---
# K Means
.pull-left[
- **Representation:**
  + **Bag of Words (BoW):** Each document represented by word frequencies.
- **Algorithm:**
  + K means leverages BoW for simple document similarity based on word occurrences.
- The simplest form of topic discovery.
- Requires tinkering to get useful results

]

---
# K-Means implementation
.pull-left[
.small123[
### Steps
- **Step 0:** Clean data, remove stopwords, etc.
- **Step 1:** BoW representaiton
  + Each document is represented as a vector of word frequencies
- **Step 2 (optional):** Consider reducing the dimensionality of the problem
  + I.e. limit to only useful words using PCA or other heuristics
- **Step 3:** Run K means for k in 1:K
  + Use some evaluation metric to choose optimal k.
  + Metrics: Sum of squared errors
  + Criterion: Elbow point

**See [Lecture 6 - Record linking/Code/K_means_topic_modelling.py](https://github.com/christianvedels/News_and_Market_Sentiment_Analytics/blob/main/Lecture%206%20-%20Record%20linking/Code/K_means_topic_modelling.py)**
]

]

1. **Assignment**
  + Measure distances `$\{Dist\} = Dist\left(\mathbf{m}^{(k)},\mathbf{x}^{(n)}\right)$` using e.g. Euclidean or Cosine distance
  + Assign all elements of `$\mathbf{x}^{(k)}$` to an element of `$\mathbf{m}^{(k)}$` for which `$\{Dist\}$` is minimal

2. **Update**
  + Updates all `$\mathbf{m}^{(k)}$` to be equal to the mean of its assigned elements of `$\mathbf{x}^{(k)}$`

- **Repeat 1 and 2 until convergence**

MacKay (2003), p. 286
]

]

---
# Latent Dirichlet Allocation (LDA)
.pull-left[
- We imagine that every document is generated in the BoW way
- But in two steps:
  1. Each document is a mixture of topics
  2. Each topic is a mixture of words
- 1. and 2. are drawn from a Dirichlet distribution
- Topics are the latent part we are trying to identify
]

---
# Latent Dirichlet Allocation (LDA) Implementation
.pull-left[
.small123[
### Steps
- **Step 0:** Clean data, remove stopwords, etc.
- **Step 1:** Prepare the document-term matrix (DTM)
  + Each document is represented as a vector of word frequencies or other features
- **Step 2:** Run LDA for a given number of topics
  + Use some evaluation metric to choose the optimal number of topics.
  + Criterion: Elbow point

**See [Lecture 6 - Record linking/Code/LDA_topic_modelling.py](https://github.com/christianvedels/News_and_Market_Sentiment_Analytics/blob/main/Lecture%206%20-%20Record%20linking/Code/LDA_topic_modelling.py)**
]

]

.pull-right[
.small123[
### LDA estimation
**Hiearchical Bayesian model**
- `$\theta_i\sim Dir(\alpha)$`: Topic mixture distribution
- `$\varphi_k\sim Dir(\beta)$`: Word in topic k

To generate one document repeat:
1. Choose topic `$z_{ij} \sim Multinomial(\theta_i)$`
2. Choose word from topic `$w_{ij}\sim Multinomial(\varphi_{z_{ij}})$`

Can be estimated with Markov Chain Monte Carlo. E.g. Gibbs sampling

*[What is a Dirichlet distribution? It's a distribution of distributions](https://en.wikipedia.org/wiki/Dirichlet_distribution)*

]

---
# Sentence-Level Transformers and Clustering
.pull-left[
- Leverage advanced transformer models for sentence embeddings.
- Understand context and semantics at a fine-grained level.
- Utilize these embeddings for document clustering in the embedding space.
]

---
# Sentence-Level Transformer Embeddings
.pull-left[

### Approach
- Use transformer models designed for sentence embeddings (e.g., DistilBERT, RoBERTa).
- Sentence embeddings capture rich contextual information.
- Fine-tune or use pre-trained models for diverse downstream tasks.
- Create embeddings for each sentence in the dataset.

[Lecture 6 - Record linking/Code/Embedding_topic_modelling.py](https://github.com/christianvedels/News_and_Market_Sentiment_Analytics/blob/main/Lecture%206%20-%20Record%20linking/Code/Embedding_topic_modelling.py)

]

### Steps
1. Embed the sentences
2. Reduce dimensions (PCA, t-SNE)
3. Run clustering algorithm (K-means)

]

.footnote[
For more SoTA approaches see [Avrim & Haghtalab (2016)](https://arxiv.org/abs/1611.01259) and its papers that cite it (check e.g. [researchrabbit.ai/](https://www.researchrabbit.ai/))
Consider topic modelling as an encoder decoder task, where the encoder is forced to sample from a topic distribution.
]

---
class: inverse, middle
# Coding challenge:
## [Linking in practice](https://github.com/christianvedels/News_and_Market_Sentiment_Analytics/blob/main/Lecture%206%20-%20Record%20linking/Coding_challenge_lecture6.md)
