# Last time
.pull-left[
- SoTA text classification in news and market sentiments analytics
- Off-the shelf models
- Transfer learning
]

.pull-right-narrow[
![Trees](Figures/Trees.jpg)
]

---
class: middle
# Today's lecture
.pull-left[
- Tokenization
- Embedding space
- The nuts and bolts of modern NLP
]

.pull-right-narrow[
![Flows](Figures/0_Transformations, dataflows, magical, mathematical _esrgan-v1-x2plus.png)
]

---
class: middle
# Tokenization

.pull-left[
- The problem: Text is not numbers

]

.pull-right[
### Example
- "what is this sentence?"

Some options:
  - Characters level tokenizaiton `[ord(char) for char in text]`: `[119, 104, 97, 116, 32, 105, 115, ...]`
  - Word-level tokenization `["what", "is", "this", "sentence", "?"]`: `[5, 3, 2, 4, 99]`
  - Subword-level tokenization `["what", "is", "this", "sen", "##tence", "?"]`: `[5, 3, 4, 7, 1, 11]`
]

---
class: middle
# Tokenization in practice

``` python
import spacy
nlp = spacy.load("en_core_web_sm") # Small Eng. model
```

``` python
print_it(nlp.pipeline) # Contains the basic pipeline
```

```
## ('tok2vec', <spacy.pipeline.tok2vec.Tok2Vec object at 0x0000018549FA3830>)
## ('tagger', <spacy.pipeline.tagger.Tagger object at 0x0000018549FA3B30>)
## ('parser', <spacy.pipeline.dep_parser.DependencyParser object at 0x0000018549F1BF40>)
## ('attribute_ruler', <spacy.pipeline.attributeruler.AttributeRuler object at 0x000001854B149DD0>)
## ('lemmatizer', <spacy.lang.en.lemmatizer.EnglishLemmatizer object at 0x00000185492340D0>)
## ('ner', <spacy.pipeline.ner.EntityRecognizer object at 0x0000018549F1BED0>)
```

---
class: middle
# Working with very large data

``` python
# The pipeline can be heavy for very large data
# We can disable things we don't need
nlp = spacy.load("en_core_web_sm", disable=["parser","ner"])
```

``` python
# GPU can also help speeding up things
if spacy.prefer_gpu():
  print("Working on GPU")
else:
  print("No GPU found, working on CPU")
```

```
## Working on GPU
```

---
class: middle
# Tangent: Nanmed Entity Recognition (NER)
.pull-left[
*Fisher Asset Management LLC lessened its holdings in Novo Nordisk A/S (NYSE:NVO - Free Report) by 0.5% during the third quarter, according to the company in its most recent Form 13F filing with the Securities & Exchange Commission. The institutional investor owned 13,305,474 shares of the company's stock after selling 65,153 shares during the quarter. Fisher Asset Management LLC owned 0.30% of Novo Nordisk A/S worth $1,584,283,000 as of its most recent SEC filing.*

``` python
text = """
    Fisher Asset Management LLC lessened its holdings in Novo Nordisk A/S (NYSE:NVO - Free Report) by 0.5% during the third quarter, according to the company in its most recent Form 13F filing with the Securities & Exchange Commission. The institutional investor owned 13,305,474 shares of the company's stock after selling 65,153 shares during the quarter. Fisher Asset Management LLC owned 0.30% of Novo Nordisk A/S worth $1,584,283,000 as of its most recent SEC filing.
  """
# Source: https://www.marketbeat.com/instant-alerts/fisher-asset-management-llc-sells-65153-shares-of-novo-nordisk-as-nysenvo-2024-11-25/
import spacy
nlp = spacy.load("en_core_web_sm")
doc = nlp(text)
spacy.displacy.render(doc, style ='ent')
```
]

.pull-right[
.small123[
<div class="entities" style="line-height: 2.5; direction: ltr"> Fisher Asset Management ORG LLC lessened its holdings in Novo Nordisk A/S ORG ( NYSE ORG: NVO - Free Report ORG) by 0.5% PERCENT during the third quarter DATE, according to the company in its most recent Form 13F PERSON filing with the Securities &amp; Exchange Commission ORG. The institutional investor owned 13,305,474 CARDINAL shares of the company\'s stock after selling 65,153 CARDINAL shares during the quarter DATE. Fisher Asset Management ORG LLC ORG owned 0.30% PERCENT of Novo Nordisk A/S ORG worth $ 1,584,283,000 MONEY as of its most recent SEC ORG filing. </div>
]
]

---
# Embeddings
### One step back: What problem are we trying to solve?
--

### Original problem: Text similarity
Is text `$x$` 'equal' to text `$y$`?
--

## Text similarity measures

- String distance*
- Document Term Matrix Distance
- Embedding distance

.footnote[
`$^*$` covered in more detail next time
]

---
class: middle
# Basic similarity measures
.pull-left-narrow[
- String distance (divergence*): Hamming, Levenstein, Jaro-Winkler
- More one these next time
- For now just an example on the right
]

.pull-right-wide[
.small123[

``` python
from nltk.metrics import edit_distance

# Original text
text = "The cat sat on the met."

# Misspelled word
misspelled_word = "met"

# Candidate correct words
correct_words = ["mat", "mete", "meet", "meat"]

# Select the word with the minimum Levenshtein Distance as the correction
closest_word = min(correct_words, key=lambda word: edit_distance(misspelled_word, word))

print(f"Closest Correct Spelling: {closest_word}")
```

```
## Closest Correct Spelling: mat
```
]
]

.footnote[
`$^*$` formally speaking it is a divergence since it is not symmetrical.
]

---
class: middle
# Levensthein distance

.pull-left[
- Most common basic string distance measure
- `$O(mn)$` complexity - you can run it
- Consists of edits: deletions, insertions, substitutions
]

.pull-right[
**Levensthein distance**
kitten `$\rightarrow$` sitting
1. sitten (substitution of 's' for 'k')
2. sittin (substitution of 'i' for 'e')
3. sitting (insertion of 'g')
]

---
class: middle
# 10 problems with basic string similarity measures

1. Silent ↔ Quiet: 0.3333
2. Wealthy ↔ Affluent: 0.1250
3. Start ↔ Commence: 0.000
3. Help ↔ Assist: 0.000
4. Angry ↔ Furious: 0.000
5. Happy ↔ Joyful: 0.000
6. Big ↔ Enormous: 0.000
7. Small ↔ Tiny: 0.000
8. Tired ↔ Exhausted: 0.2222
9. Friend ↔ Companion: 0.1111

.footnote[
.small123[Similarity computed as the complement to Levenstein distance divided by the length of the longest string]
]

---
# Better similarity measure:

Let `$S(x,y)$` be some similarity measure. `$x$` and `$y$` are some objects of interest, e.g. texts

We want to obey the following:
  - `$S(x, y) = 1$` if `$x=y$`: The same text should be 1
  - `$S(x, y) = -1$` if `$x=-y$`: Completely opposite texts should be -1
  - `$S(x, y) = 0$` if `$x \perp y$`: Unrelated objects should be 0

--
### Cosine similarity to the rescue

If we can represent `$v(x)$` and `$v(y)$` as vectors, then `$cos\left(\theta_{v(x),v(y)}\right)$` represents such a simiarity measure.

$$
S_C\left(v(x), v(y)\right) = \frac{v(x)\cdot v(y)}{|v(x)||v(y)|}
$$

---
# Cosine similarity

.pull-left[
### Intuition
- Function of the 'angle' between concepts
- Things in the same 'direction' (0 degrees) are the same
- Orthogonal things (90 degrees) are unrelated
- Opposites (180 degress) are opposites

### Construction
- We need to turn text into vectors

- Two approaches:
  + Document Term Matrix (CountVectorizer in scikit learn)
  + Embeddings
]

.pull-right[

### DTM
- "he is happy"
- "he is sad"

| Document | happy | he | is | sad |
|----------|-------|----|----|-----|
| Doc1     | 1     | 1  | 1  | 0   |
| Doc2     | 0     | 1  | 1  | 1   |

`$v_1 = [1, 1, 1, 0],\: v_2 =[0,1,1,1]$`

### Embedding space

- `$f(text)$` which outputs the semantic 'meaning' of the sentece
- Turns out language models do this already.
]

---
# Language Models has embeddings emergently
.pull-left-wide[
![BERTbare](Figures/BERT_embeddings.png)
]

.pull-right-narrow[
- *As a happy coincidence, this is how neural networks work internally anyway!* (At least it's one way of understanding it)
]

---
# Embeddings: The idea
.pull-left[
- Encode language such that semantics is encoded in vector operations
- Embedding vectors can be manipulated algebraically

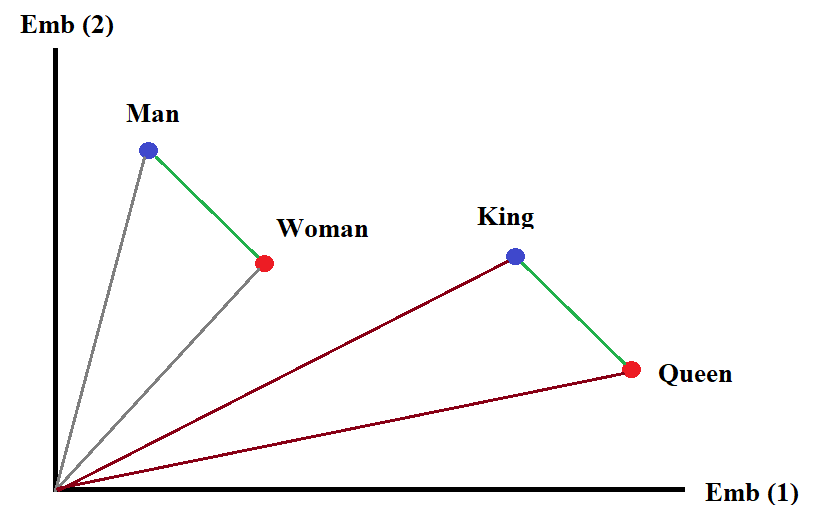

- Example: `Emb(King) - Emb(Man) + Emb(Woman) = Emb(Queen)`
]

.pull-right[
![Vector Arithmetic](Figures/manwomanqueenking.png)
]

---
# Example: 10 problems (from earlier)

.small123[
.pull-left[

``` python
import spacy
from scipy.spatial.distance import cosine

# Load the SpaCy language model
nlp = spacy.load("en_core_web_lg")

# Define the word pairs
word_pairs = [
    ("Silent", "Quiet"),
    ("Wealthy", "Affluent"),
    ("Start", "Commence"),
    ("Help", "Assist"),
    ("Angry", "Furious"),
    ("Happy", "Joyful"),
    ("Big", "Enormous"),
    ("Small", "Tiny"),
    ("Tired", "Exhausted"),
    ("Friend", "Companion")
]
```
]
]

.small123[
.pull-right[

``` python
# Compute cosine distances for each pair
results = []
for word1, word2 in word_pairs:
    vector1 = nlp(word1.lower()).vector.get()
    vector2 = nlp(word2.lower()).vector.get()
    similarity = cosine(vector1, vector2)
    results.append((word1, word2, similarity))

# Display results
for word1, word2, distance in results:
    print(f"{word1} ↔ {word2}: {distance:.4f}")
```
Silent ↔ Quiet: 0.3710
Wealthy ↔ Affluent: 0.2438
Start ↔ Commence: 0.5251
Help ↔ Assist: 0.2856
Angry ↔ Furious: 0.2560
Happy ↔ Joyful: 0.4107
Big ↔ Enormous: 0.3416
Small ↔ Tiny: 0.2006
Tired ↔ Exhausted: 0.2935
Friend ↔ Companion: 0.5322
]
]

---
# Looking in the top 10 (see notebook version of slides)

``` python
import spacy
import numpy as np

nlp = spacy.load("en_core_web_lg")

word_pairs = [
    ("Silent", "Quiet"),
    ("Wealthy", "Affluent"),
    ("Start", "Commence"),
    ("Help", "Assist"),
    ("Angry", "Furious"),
    ("Happy", "Joyful"),
    ("Big", "Enormous"),
    ("Small", "Tiny"),
    ("Tired", "Exhausted"),
    ("Friend", "Companion")
]

def top_similar_words(word, topn=10):
    """Return topn most similar words to `word` from spaCy's vocab."""
    vectors = nlp.vocab.vectors

# Get the key for the word and its vector
    key = nlp.vocab.strings[word.lower()]
    if key not in vectors.key2row:
        return []

vec = vectors[key]

# Decide whether to use numpy or cupy based on the underlying storage
    try:
        import cupy as cp
        xp = cp if isinstance(vectors.data, cp.ndarray) else np
    except ImportError:
        xp = np

# Build a (1, dim) query array in the right backend (np or cp)
    query = xp.asarray([vec])

# Ask spaCy for the most similar vectors
    # returns (keys, rows, scores); first result is the word itself (similarity ~1.0)
    keys, rows, scores = vectors.most_similar(query, n=topn + 1)

similar = []
    for k, s in zip(keys[0][1:], scores[0][1:]):  # skip the word itself
        similar_word = nlp.vocab.strings[int(k)]
        similar.append((similar_word, float(s)))

return similar

# Print top-10 neighbours for each LEFT word in your pairs
for left, right in word_pairs:
 sims = top_similar_words(left, topn=10)
 print(f"\nTop 10 neighbours for '{left}':")
 for w, score in sims:
 print(f" {w:<20} {score:.4f}")
```

```
##
## Top 10 neighbours for 'Silent':
##   SILENCE              0.7312
##   QUIET                0.6290
##   SILENTLY             0.5982
##   WHISPER              0.5959
##   HUSHED               0.5775
##   QUIETLY              0.5730
##   MUTE                 0.5679
##   LOUD                 0.5289
##   MOTIONLESS           0.5169
##   SOLEMN               0.5168
##
## Top 10 neighbours for 'Wealthy':
##   Well-To-Do           0.7834
##   AFFLUENT             0.7562
##   Well-Off             0.7376
##   WEALTHIEST           0.7030
##   WEALTHIER            0.6992
##   Middle-class         0.6733
##   MILLIONAIRE          0.6730
##   WELL-HEELED          0.6502
##   super-rich           0.6473
##   RICH                 0.6342
##
## Top 10 neighbours for 'Start':
##   STARTING             0.8558
##   BEGIN                0.7967
##   STARTS               0.7596
##   STARTED              0.7302
##   GOing                0.7276
##   BEGINNING            0.6733
##   TRYING               0.6707
##   TRy                  0.6693
##   TiME                 0.6541
##   gO                   0.6516
##
## Top 10 neighbours for 'Help':
##   HELPING              0.8422
##   HELPS                0.8082
##   HELPED               0.7326
##   NEED                 0.7205
##   ASSIST               0.7144
##   GIve                 0.7033
##   ABLE                 0.6945
##   NEEDED               0.6845
##   CaN                  0.6773
##   IMPROVE              0.6754
##
## Top 10 neighbours for 'Angry':
##   ENRAGED              0.7829
##   IRATE                0.7698
##   ANNOYED              0.7570
##   FURIOUS              0.7440
##   FRUSTRATED           0.7378
##   PISSED               0.7327
##   Outraged             0.7064
##   UNHAPPY              0.7056
##   INDIGNANT            0.7039
##   ANGERED              0.6967
##
## Top 10 neighbours for 'Happy':
##   GLaD                 0.7702
##   HOpe                 0.7318
##   EVeryone             0.7278
##   THANKFUL             0.6912
##   EXCITED              0.6901
##   lOve                 0.6869
##   WIsh                 0.6854
##   GRATEFUL             0.6848
##   alwAys               0.6795
##   LUCKY                0.6789
##
## Top 10 neighbours for 'Big':
##   Huge                 0.8695
##   BIGGER               0.7370
##   BIGGEST              0.7144
##   MASSIVE              0.6992
##   LARGE                0.6614
##   Enormous             0.6584
##   LIttle               0.6570
##   GIGANTIC             0.6413
##   HArd                 0.6410
##   GIANT                0.6343
##
## Top 10 neighbours for 'Small':
##   LARGE                0.8344
##   TINY                 0.7994
##   SMALLER              0.7731
##   LIttle               0.7017
##   LARGER               0.6962
##   SIZED                0.6698
##   BIg                  0.6340
##   Medium-Sized         0.6322
##   SMALLISH             0.6274
##   FEW                  0.6175
##
## Top 10 neighbours for 'Tired':
##   EXHAUSTED            0.7065
##   BORED                0.7058
##   FEELING              0.7040
##   WEARY                0.6920
##   LAZY                 0.6809
##   FRUSTRATED           0.6764
##   TIRING               0.6716
##   COMPLAINING          0.6713
##   SICK                 0.6697
##   BOTHERED             0.6646
##
## Top 10 neighbours for 'Friend':
##   FRIENDS              0.7896
##   HUSBAND              0.7447
##   BUDDY                0.7275
##   BROTHER              0.7267
##   COUSIN               0.7255
##   DaD                  0.7239
##   BOYFRIEND            0.7220
##   SISTER               0.7096
##   GirlFriend           0.7058
##   WIFE                 0.7019
```

---
class: middle
# Example: Farther - Man + Woman = Mother?
.small-123[

``` python
import spacy

# Load the SpaCy language model
nlp = spacy.load("en_core_web_lg")

# Vectors for the terms
vector_king = nlp("father").vector
vector_man = nlp("man").vector
vector_woman = nlp("woman").vector

# Perform the vector arithmetic
result_vector = vector_king - vector_man + vector_woman

# Find the closest word to the result vector
similar_words = nlp.vocab.vectors.most_similar(result_vector.reshape(1, -1), n=5)

# Output the closest words
for word_id, similarity in zip(similar_words[0][0], similar_words[2][0]):
    word = nlp.vocab.strings[word_id]
    print(f"{word}: {similarity:.4f}")
```
]

---
class: middle
# Example: Farther - Man + Woman = Mother?
### Result

``` python
mother: 0.8018
father: 0.7496
grandmother: 0.7310
birthmother: 0.7258
daugther: 0.7162
```

---
class: middle
# Example: Paris - France + Italy = Rome?
.small-123[

``` python
import spacy

# Load the SpaCy language model
nlp = spacy.load("en_core_web_lg")

# Vectors for the terms
vector_paris = nlp("Paris").vector
vector_france = nlp("France").vector
vector_italy = nlp("Italy").vector

# Perform the vector arithmetic
result_vector = vector_paris - vector_france + vector_italy

# Find the closest word to the result vector
similar_words = nlp.vocab.vectors.most_similar(result_vector.reshape(1, -1), n=5)

# Output the closest words
for word_id, similarity in zip(similar_words[0][0], similar_words[2][0]):
    word = nlp.vocab.strings[word_id]
    print(f"{word}: {similarity:.4f}")
```
]

---
class: middle
# Example: Paris - France + Italy = Rome?
### Result:

``` python
Paris: 0.7084
Milan: 0.6993
Bologna: 0.6938
Rome: 0.6836
Venice: 0.6710
```

---
class: middle
# Example: King - Man + woman = Queen?
.small-123[

``` python
import spacy

# Load the SpaCy language model
nlp = spacy.load("en_core_web_lg")

# Vectors for the terms
vector_king = nlp("king").vector
vector_man = nlp("man").vector
vector_woman = nlp("woman").vector

# Perform the vector arithmetic
result_vector = vector_king - vector_man + vector_woman

# Find the closest word to the result vector
similar_words = nlp.vocab.vectors.most_similar(result_vector.reshape(1, -1), n=20)

# Output the closest words
for word_id, similarity in zip(similar_words[0][0], similar_words[2][0]):
    word = nlp.vocab.strings[word_id]
    print(f"{word}: {similarity:.4f}")
```
]

---
class: middle
# Example: King - Man + woman = Queen?
### Result:
.pull-left[.small123[

``` python
1. king: 0.8490
2. kings: 0.7189
3. princes: 0.7097
4. consort: 0.7074
5. princeling: 0.7026
6. monarch: 0.6899
7. princelings: 0.6873
8. princesses: 0.6814
9. prince: 0.6563
10. kingship: 0.6498
```
]
]
.pull-right[.small123[

``` python
11. princess: 0.6481
12. ruler: 0.6450
13. consorts: 0.6377
14. kingi: 0.6362
15. princedom: 0.6355
16. rulers: 0.6347
17. kingii: 0.6259
18. enthronement: 0.6236
19. monarchical: 0.6206
*20. queen: 0.6178
```
]
]

---
class: middle
# The simple (extraordinary) function of embedding spaces

.pull-left[
- The embedding representation of a piece of text is a mathematical representation of the ***meaning*** of that piece of text
- This is one way of understanding large language models:
  + Encoder: Encodes the meaning of the input in the embedding space
  + Decoder: Since the meaning is represented, a decoder module can do important stuff with it e.g. predict next word, or classify the input
- But we can also do other kinds of arithmetic with ideas

]

.pull-right[

### Use cases
- Compute measures of innovation
  + Obvious feature in sentiment stock prediction)
- Drastically improve record linking ('John', 'Hans', 'Johannes')
- Build zero-shot classifiers
- Efficiently represent documents for RAG systems

]

---
class: middle
# Plan for the remaining lectures:

### Lecture 5: Causality
### Lecture 6: Text similarity and record linking (and maybe topic models)
### Lecture 7: RAG systems and course evaluation
### Lecture 8: Exam workshop

---
class: inverse, middle
# Coding challenge:
## [Building a zero-shot classifier](https://github.com/christianvedels/News_and_Market_Sentiment_Analytics/blob/main/Lecture%204%20-%20Tokenization%20and%20embeddings/Coding_challenge_lecture4.md)
