ECON 4050: Introduction to Econometrics

.title[
# ECON 4050: Introduction to Econometrics
]
.subtitle[
## Confidence Intervals and Hypothesis Testing
]
.author[
### Adam Soliman, PhD
]
.date[
### Clemson University
]

---

# Today - Deeper dive into ***statistical inference***

.footnote[This lecture is based on the wonderful [confidence interval](https://moderndive.com/8-confidence-intervals.html) and [hypothesis testing](https://moderndive.com/9-hypothesis-testing.html) chapters of [ModernDive](https://moderndive.com/)]

* *Confidence intervals*: providing plausible ***range*** of values

* *Hypothesis testing*: comparing statistics between groups

---

background-image: url(https://media.giphy.com/media/hXG93399r19vi/giphy.gif)
background-position: 18% 45%
background-size: 450px

# Back to reality

* In real life we only get to take ***one*** sample from the population (not ***1000***!).

* Also, we obviously don't know the true population parameter, that's what we are interested in!

* So what on earth was all of this good for? Fun only?! 😧

]

* Even unobserved, we ***know*** that the sampling distribution does exist, and even better, we know how it behaves!

* Let's see what we can do with this...

---

# Confidence Intervals

---

# From Point Estimates to Confidence Intervals

* Until now, we have only estimated ***point estimates*** from our samples: *sample means*, *sample proportions*, *regression coefficients*, etc.

* We know that this ***sample statistic*** differs from the ***true population parameter*** due to ***sampling variation***.

* Rather than a point estimate, we could give a ***range of plausible values*** for the population parameter.

* This is precisely what a ***confidence interval*** (CI) provides.

---

# Constructing Confidence Intervals

There are several approaches to constructing confidence intervals:

  1. *Theory*: use mathematical formulas (***Central Limit Theorem***) to derive the sampling distribution of our point estimate under certain conditions `$\rightarrow$` ***what `R` does under the hood!***

1. *Simulation*: use the ***bootstrapping*** method to *reconstruct* the sampling distribution of our point estimate

We'll focus on simulation to give you the intuition and come back to the math approach soon.

In practice, you ***don't*** need to compute your confidence intervals using *bootstrap*, `R` uses statistical theory to do it for you.

---

# Back to Pasta

* As in real life, imagine we had access to *only one random sample* from our bowl of pasta.

* How could we study the effect of sampling variation with a single sample? 👉 ***bootstrap resampling with replacement***!

* Let's start by drawing one random sample of size `$n = 50$` from our bowl.

``` r
library(tidyverse)
bowl <- read.csv("~/Library/CloudStorage/Dropbox/Clemson/Econometrics Course/data for tasks/pasta.csv")
my_sample = bowl %>% mutate(color = ifelse(color == "green","green","non-green")) %>%
 rep_sample_n(size = 50) %>% ungroup() %>% select(pasta_ID, color)
```

```r
head(my_sample,3)
```

```
## # A tibble: 3 × 2
## pasta_ID color
## <int> <fct>
## 1 4 non-green
## 2 41 non-green
## 3 79 non-green
```
]

```r
p_hat = mean(my_sample$color == "green")
p_hat
```

```
## [1] 0.46
```

The proportion of green pasta in this sample is: `$\hat{p} = 0.46$`.
]

---

# Resampling our Pasta Sample

How do we obtain a ***bootstrap sample***?

--

  1. Randomly pick ***one*** pasta from the sample and record the associated color.

--

  1. Put this pasta back in the sample.

--

  1. Repeat steps 1 and 2 49 times, i.e. ***until the new sample is of the same size as the original sample***.

1. Compute the proportion of green pasta in the bootstrap sample.

--

This procedure is called ***resampling with replacement***:

* *resampling*: drawing repeated samples from a sample.
  * *with replacement*: each time the drawn pasta is put back in the sample.

---

# Resampling our Pasta Sample

Here is one bootstrap sample:

```r
one_bootstrap = my_sample %>%
  rep_sample_n(size = 50, replace = TRUE) %>%
  arrange(pasta_ID)
head(one_bootstrap, 8)
```

```
## # A tibble: 8 × 3
## # Groups: replicate [1]
## replicate pasta_ID color
## <int> <int> <fct>
## 1 1 4 non-green
## 2 1 41 non-green
## 3 1 41 non-green
## 4 1 79 non-green
## 5 1 79 non-green
## 6 1 103 non-green
## 7 1 103 non-green
## 8 1 103 non-green
```

```r
nrow(one_bootstrap)
```

```
## [1] 50
```
]

Several pasta have been drawn multiple times. How come?

What's the proportion of green pasta in this bootstrap sample?

```r
mean(one_bootstrap$color == "green")
```

```
## [1] 0.4
```

The proportion is different than that in our sample! This is due to resampling ***with replacement***.

What if we repeated this resampling procedure many times? Would the proportion be the same each time?
]

---

# Obtaining the Bootstrap Distribution

* Let's repeat the resampling procedure 1,000 times: there will be 1,000 bootstrap samples and 1,000 bootstrap estimates!

```r
library(infer)

bootstrap_distrib = my_sample %>%
  # specify the variable and level of interest
  specify(response = color, success = "green") %>%
  # generate 1000 bootstrap samples
  generate(reps = 1000, type = "bootstrap") %>%
  # calculate the proportion of green pasta for each
  calculate(stat = "prop")
```
]

``` r
head(bootstrap_distrib, 5)
```

```
## Response: color (factor)
## # A tibble: 5 × 2
## replicate stat
## <int> <dbl>
## 1 1 0.44
## 2 2 0.36
## 3 3 0.46
## 4 4 0.46
## 5 5 0.52
```

``` r
nrow(bootstrap_distrib)
```

```
## [1] 1000
```

Let's visualize this sampling variation!

]

---

# Bootstrap Distribution

The ***bootstrap distribution*** is an approximation of the ***sampling distribution***.

---

# Bootstrap Distribution with Mean

The ***bootstrap distribution*** mean is very close to the original sample proportion.

---

# Bootstrap Distribution with Mean

Let's use this ***bootstrap distribution*** to construct confidence intervals!

---

# Understanding Confidence Intervals

* Analogy with fishing:

* *point estimate*: fishing with a spear.

  * *confidence interval*: fishing with a net.

* The true proportion of pasta in the bowl that are green is `$(p)$`.

* The *point estimate* would be the proportion of green pasta obtained from a random sample `$(\hat{p})$`.

* The *confidence interval*: from the previous bootstrap distribution, ***where do most proportions lie?***

* Method for confidence interval construction: ***percentile method***.

* Requires specifying a ***confidence level***: 90%, 95%, and 99% are the most common.

---

# Percentile Method: 95% Confidence Interval

* Construct a confidence interval as the middle 95% of values of the bootstrap distribution.

* For that, we compute the 2.5% and 97.5% percentile:

```r
quantile(bootstrap_distrib$stat,0.025)
```

```
## 2.5%
## 0.32
```
]
.pull-right[

```r
quantile(bootstrap_distrib$stat,0.975)
```

```
## 97.5%
##   0.6
```
]

* Therefore the 95% confidence interval is `$[0.32 ; 0.6]$`.

* It is a ***range*** of values.

* Let's see this confidence interval on the sampling distribution.

---

# Percentile Method: 95% Confidence Interval Visually

Does the interval contain the true population proportion?

---

# Percentile Method: 95% Confidence Interval Visually

True population parameter is indeed in our 95% interval! Will it always be?

---

# Interpreting a 95% Confidence Interval

Let's repeatedly draw 100 different samples from our `bowl` and for each sample compute the associated 95% CI using the percentile method.

How many confidence intervals contain the true parameter? Why?

---

# Interpreting a 95% Confidence Interval

> *Precise interpretation:* If we repeated our sampling procedure ***a large number of times***, we ***expect about 95%*** of the resulting confidence intervals to capture the value of the population parameter.

In other words, 95% of the time, the 95% confidence interval will contain the true population parameter.

> *Short-hand interpretation:* We are ***95% “confident”*** that a 95% confidence interval captures the value of the population parameter.

***Questions:***

* How does the width of the confidence interval change as the ***confidence level*** increases?

  * How does the width of the confidence interval change as the ***sample size*** increases?

---

# Interpreting a 95% Confidence Interval

In other words, 95% of the time, the 95% confidence interval will contain the true population parameter.

> *Short-hand interpretation:* We are ***95% “confident”*** that a 95% confidence interval captures the value of the population parameter.

***Impact of confidence level:*** the greater the confidence level, the wider the confidence intervals.

* *Intuition*: a greater confidence level means the confidence interval needs to contain the true population parameter more often, and thus needs to be wider to ensure this.

--

***Impact of sample size:*** the greater the sample size, the narrower the confidence intervals.

* *Inutuition*: a larger sample size leads to less sampling variation and therefore a narrower boostrap distribution, which in turn leads to thiner confidence intervals.

---

# Sampling, the Bootstrap, and Distributions

Goal: Estimate the true proportion of green pasta, *p*, in the population (in our case, of 713 pieces).

| World/ Setting                                         | What We Do                                              | What We See                       | What We Learn                                                           |
| --------------------------------------------- | ------------------------------------------------------- | --------------------------------- | ----------------------------------------------------------------------- |
| **1. Repeated Sampling** (thought experiment) | Draw many samples of 50 from the 713                    | Each sample’s  `$\hat{p}$`  differs | The sampling distribution shows natural variability                     |
| **2. Real Data** (one sample)                 | Observe one sample of 50 and compute one  `$\hat{p}$`     | Only a single estimate            | We need a way to quantify unseen variability (for confidence intervals) |
| **3. Bootstrap**                              | Resample *with replacement* from the 50 observed pieces | Bootstrap  `$\hat{p}$`’s differ    | Approximates the sampling distribution                                  |

**Key Idea**: *the bootstrap mimics the repeated-sampling experiment, using the sample as our best estimate of the population.* Put another way:

- A single `$\hat{p}$` answers: *what is our estimate?*
  - Bootstrapping helps answer: *how much should we trust that estimate/ what is the uncertainty around it?*
  - Confidence intervals can also be derived analytically from the Central Limit Theorem (as is done in R)
---

# From Confidence Intervals to Hypothesis Testing

* *Confidence intervals* can be thought of as an extension of *point estimation*.

* What if we want to ***compare*** a sample statistic for two groups?

  * *Example*: differences in average wages between men and women. Are the observed differences ***significant***?

* These comparisons are the realm of ***hypothesis testing***.

* Just like confidence intervals, hypothesis tests are used to make claims about a population based on information from a sample.

* However, we’ll see that the framework for making such inferences is slightly different.

---

# Hypothesis Testing

---

# Is There Gender Discrimination In Promotions?

* We will use data from an [article](https://pdfs.semanticscholar.org/39f6/d40e907ff08af4ddd3280c2ceee55ee1ddb6.pdf) published in the *Journal of Applied Psychology* in 1974 which investigated whether female employees at banks were discriminated against.

* 48 (male) supervisors were given *identical* candidate CVs, differing only with respect to the first name, which was male or female.

* Each CV was "*in the form of a memorandum requesting a decision on the promotion of an employee to the position of branch manager.*"

* ***Hypothesis*** we want to test: *Is there gender discrimination?*

.pull-left[
* The data from the experiment are provided in the `promotions` dataset from the `moderndive` package.
]

``` r
library(moderndive)
head(promotions, 5)
```

```
## # A tibble: 5 × 3
## id decision gender
## <int> <fct> <fct>
## 1 1 promoted male
## 2 2 promoted male
## 3 3 promoted male
## 4 4 promoted male
## 5 5 promoted male
```
]

---

# Evidence of Discrimination?

```r
promotions %>%
  group_by(gender, decision) %>%
  tally() %>%
  mutate(percentage = 100 * n / sum(n))
```

```
## # A tibble: 4 × 4
## # Groups: gender [2]
## gender decision n percentage
## <fct> <fct> <int> <dbl>
## 1 male not 3 12.5
## 2 male promoted 21 87.5
## 3 female not 10 41.7
## 4 female promoted 14 58.3
```

There is a ***29.2 percentage points difference*** in promotions between men and women!
]

.pull-right[
<img src="chapter_ci_hyptest_files/figure-html/unnamed-chunk-20-1.svg" style="display: block; margin: auto;" />
]

***Question***: Is this difference ***conclusive evidence*** of differences in promotion rates between men and women? Could such a difference have been observed ***by chance***?

---

# Imposing A Hypothetical World: No Gender Discrimination

* Suppose we lived in a world without gender discrimination: the promotion decision would be completely ***independent*** from gender.

* Let's randomly reassign `gender` to each row and see how this affects the result.

``` r
promotions_shuffled %>%
  rename(shuffled_gender = gender) %>%
  head()
```

```
## # A tibble: 6 × 3
## id decision shuffled_gender
## <int> <fct> <fct>
## 1 1 promoted female
## 2 2 promoted female
## 3 3 promoted male
## 4 4 promoted female
## 5 5 promoted male
## 6 6 promoted male
```

How do the promotion rates look like in our reshuffled sample?
]

```r
promotions_shuffled %>%
  group_by(gender, decision) %>%
  tally() %>%
  mutate(percentage = 100 * n / sum(n))
```

```
## # A tibble: 4 × 4
## # Groups: gender [2]
## gender decision n percentage
## <fct> <fct> <int> <dbl>
## 1 male not 6 25
## 2 male promoted 18 75
## 3 female not 7 29.2
## 4 female promoted 17 70.8
```

The difference is much lower: ***4.2 percentage points***!
]

---

# Imposing A Hypothetical World: No Gender Discrimination

* Suppose we lived in a world without gender discrimination: the promotion decision would be completely ***independent*** from gender.

* Let's randomly reassign `gender` to each row and see how this affects the result.

``` r
promotions_shuffled %>%
  rename(shuffled_gender = gender) %>%
  head()
```

How do the promotion rates look like in our reshuffled sample?
]

]

---

# Sampling Variation

* In our hypothetical world, the difference in promotion rates was only 4.2 percentage points.

* Can we answer our initial question about the existence of gender discrimination now?

* No, we must investigate the role of ***sampling variation***!

* What if we reshuffle once again, how different from 4.2%p (*percentage points*) would the difference be? In other words, how representative of that hypothetical world is 4.2%p?

  * How likely is a 29%p difference to occur in such a world?

--

* We need to know about the whole sampling distribution under the *no discrimination* hypothesis.

* How? Just by redoing the reshuffling a large number of times, and computing the difference each time.

---

# Sampling Distribution with 1000 Reshufflings

---

# Sampling Distribution with 1000 Reshufflings

How ***likely*** is it to observe a 0.292 difference in a world with no discrimination?

---

# What did we just do?

* We just demonstrated the statistical procedure known as ***hypothesis testing*** using a ***permutation test***.

* The question is how likely the observed difference in promotion rates is to occur in a hypothetical universe with no discrimination.

* We concluded ***rather not***, i.e. we tended to ***reject*** the no discrimination hypothesis.

* Let's introduce the formal framework of hypothesis testing now.

---

# Hypothesis Test Notation and Definitions

* A ***hypothesis test*** consists of a test between ***two competing hypotheses*** about the population parameter:

* The ***null hypothesis*** `$(H_0)$`: generally hypothesis of no difference

  * The ***alternative hypothesis*** `$(H_A \textrm{ or }H_1)$`: the research hypothesis

* In the previous example:
`$$\begin{align}H_0&: p_m - p_f = 0\\H_A&: p_m - p_f > 0,\end{align}$$`
where `$p_m =$` promotion rate of men, and `$p_f =$` promotion rate of women.

* Here, we considered a *one-sided* alternative, stating that `$p_m > p_f$`, i.e. women are discriminated against.
  * The *two-sided* formulation is just `$H_A: p_m - p_f \neq 0$`.

---

# Hypothesis Test Notation and Definitions

* ***Test statistic***: *point estimate/sample statistic* formula used for hypothesis testing.

* *In our previous case*: difference in sample proportions `$\hat{p}_m - \hat{p}_f$`.

* ***Observed test statistic***: value of the test statistic that we observed in real life.

* *In our previous case*: observed difference `$\hat{p}_m - \hat{p}_f = 0.292 = 29.2$` percentage points.

--

* ***Null distribution***: sampling distribution of the test statistic *assuming the null hypothesis `$H_0$` is true*.

*  *In our previous case*: All the possible values that `$\hat{p}_m - \hat{p}_f$` can take assuming there is no discrimination.
  * That's the distribution we have seen just before.

---

# Null Distribution

---

# Hypothesis Test Notation and Definitions

> ### ***p-value:*** probability of observing a test statistic *just as or more extreme* than the one we obtained, assuming the null hypothesis `$H_0$` is true. 🤔

* How *surprised* are we that we observed a difference in promotions rates of 0.292 in our sample assuming `$H_0$` is true, that is a world without discrimination? Very surprised? Kind of surprised?

* What do we mean by ***more extreme***?

* Defined in terms of the alternative hypothesis: in this case, men are ***more likely*** to be promoted than women. Therefore, ***more extreme*** in our case means observing a difference in promotion rates ***greater than 0.292***.

* ***Interpretation***: the lower the p-value, the *less consistent our null hypothesis is with the observed statistic*.

* When do we decide to ***reject*** `$H_0$` or not?

---

# Hypothesis Test Notation and Definitions

* To decide whether we reject `$H_0$` or not, we set a ***significance level*** for the test.

* ***Significance level `$(\alpha)$`:*** acts as a *cutoff* on the p-value.

* Common values are `$\alpha = 0.01$`, `$0.05$`, or `$0.1$`.

* ***Decision***:
  * If the p-value falls ***below the cutoff `$\alpha$`***, we "***reject the null hypothesis at the significance level `$\alpha$`***."

* Alternatively, if the p-value if ***greater than `$\alpha$`***, we say that we "***fail to reject the null hypothesis `$H_0$` at the significance level `$\alpha$`***."

* ***Interpretation***: If what we observe *is too unlikely to happen* under the null hypothesis, it means that this hypothesis is ***likely to be false***.

* Let's illustrate how it works in our example.

---

# Obtaining the p-value and Deciding

* Recall the definition of the p-value: ***probability of observing a test statistic *just as or more extreme* than the one we obtained, assuming the null hypothesis `$H_0$` is true.***

``` r
p_value <- mean(null_distribution$stat >= 0.292)
p_value
```

```
## [1] 0.007
```

* In a world without discrimination, we would get `$\hat{p_m} - \hat{p_f}$` superior (or equal) to 0.292 only 0.7% of the time.
--

* So, we can reject `$H_0$`, i.e. the absence of discrimination, at the 5% significance level.

* We also say that `$\hat{p_m} - \hat{p_f} = 0.292$` is ***statistically significantly different from 0*** at the 5% level.

* ***Question***: Suppose we had set `$\alpha = 0.01 = 1\%$`, would we have rejected the absence of discrimination at this level?

---

# Testing Errors

Working with probabilities implies that sometimes, we make **errors**.

* A 29%p difference may be *unlikely* under `$H_0$`, but that **doesn't mean it's *impossible* to occur**.

* In fact, such a difference (or higher) would occur (approximately) in 0.7% of cases.

* So, it may happen that we sometimes reject `$H_0$`, when in fact it was true.

* Setting 5% significance level, you make sure it won't happen more than 5% of the time.

---

# Testing Errors

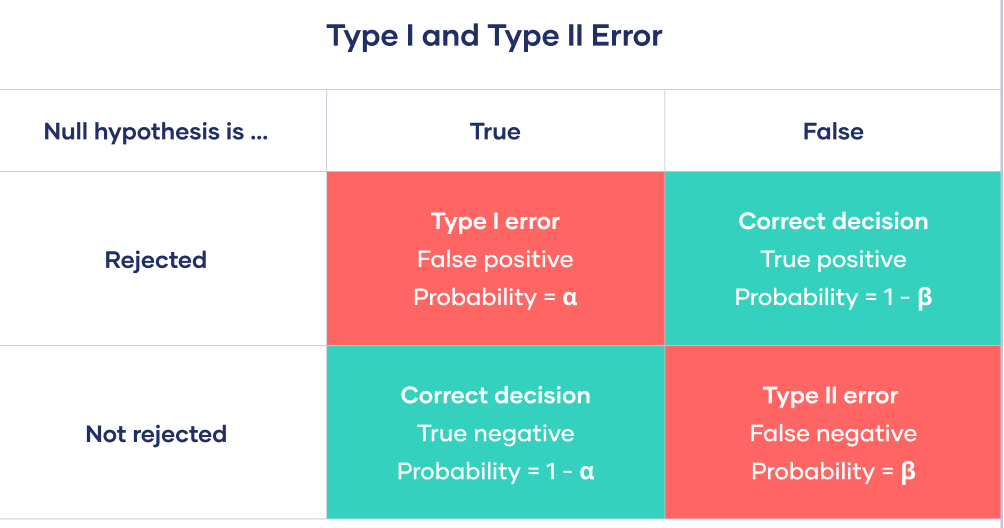

In hypothesis testing, there are ***two types of errors***:

![:scale 100%](../img/photos/type-i-and-ii-error-2.png)

]

***Type I error***: reject the null hypothesis when in fact it was true. ***false positive***. Think of this as a guilty verdict for an innocent (truly not guilty) person.

***Type II error***: don't reject the null hypothesis when in fact it was false. ***false negative***. Think of this as a not guilty verdict for someone who is in fact truly guilty.

]

* In practice, we choose the frequency of a Type I error by setting `$\alpha$` and try to minimize the type II error, as seen on the next slide

---

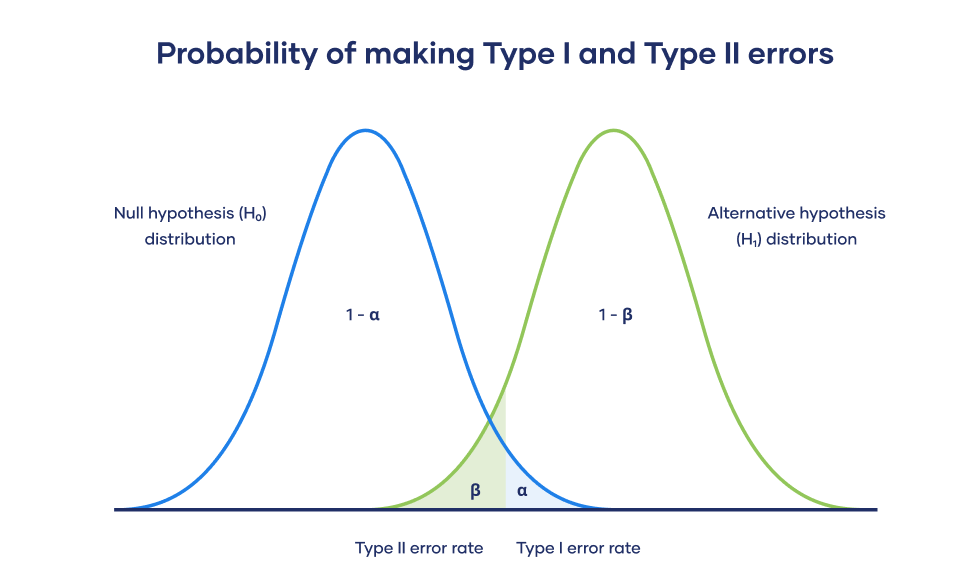

# Type I and Type II error rates influence each other

![:scale 100%](../img/photos/type-i-and-type-ii-error_dist.png)

]

* The *null hypothesis distribution* shows all possible results you’d obtain if the null hypothesis is true. The correct conclusion for any point on this distribution means not rejecting the null hypothesis.

* The *alternative hypothesis distribution* shows all possible results you’d obtain if the alternative hypothesis is true. The correct conclusion for any point on this distribution means rejecting the null hypothesis.

* Type I and Type II errors occur where these two distributions overlap.

]

---

# Which type of error is worse? It depends!

**Type I** error means mistakenly going against the main statistical assumption of a null hypothesis. This may lead to new policies, practices or treatments that are inadequate or a waste of resources.

* Example of its consequences: based on the incorrect conclusion that the new drug intervention is effective, over a million patients are prescribed the medication, despite risks of severe side effects and inadequate research on the outcomes. The consequences of this Type I error also mean that other treatment options are rejected in favor of this intervention.

**Type II** error means failing to reject a null hypothesis. It may only result in missed opportunities to innovate, but these can also have important practical consequences.

* Example of its consequences: if a Type II error is made, the drug intervention is considered ineffective when it can actually improve symptoms of the disease. This means that a medication with important clinical significance doesn’t reach a large number of patients who could tangibly benefit from it.

---

# How does all of this relate to regression analysis?

* Now you have all the tools to make ***statistical inference*** for real!

* Regression analysis is based on a ***sample*** of data.

* So your ***regression coefficient*** is subject to ***sampling variation***, it's not the true population coefficient.

* ***Question***: Is the estimated effect statistically significantly different from some value `$z$`?

* The answer in the next episode! 🐵

---

# On the way to causality

✅ How to manage data? Read it, tidy it, visualise it!

✅  How to summarise relationships between variables? Simple and multiple linear regression, non-linear regressions, interactions...

✅ What is causality?

✅ What if we don't observe an entire population? Sampling!

🚧  **Are our findings just due to randomness?** Confidence intervals and hypothesis testing...

❌ How to find exogeneity in practice?

---

# THANKS

To the amazing [moderndive](https://moderndive.com/) team!

---

# Appendix: code to generate the null distribution

``` r
null_distribution <- promotions %>%
 # takes formula, defines success
 specify(formula = decision ~ gender,
 success = "promoted") %>%
 # decisions are independent of gender
 hypothesize(null = "independence") %>%
 # generate 1000 reshufflings of data
 generate(reps = 1000, type = "permute") %>%
 # compute p_m - p_f from each reshuffle
 calculate(stat = "diff in props",
 order = c("male", "female"))

visualize(null_distribution,
          bins = 10,
          fill = "#d90502") +
  labs(title = "Sampling distribution",
       x = "Difference in promotion rates (male - female)",
       y = "Frequency") +
  xlim(-0.4, 0.4) +
  theme_bw(base_size = 14)
```
]

.pull-right[
<img src="chapter_ci_hyptest_files/figure-html/unnamed-chunk-30-1.svg" style="display: block; margin: auto;" />
]
