Toolbox Progress-bar

A Progress-bar control in an InForm application presents the user with a visual indication of the progress of an on-going task. This page provides more detailed information about Progress-bar controls.

Progress-bar control

Create a new Progress-bar control by clicking the Progress-bar icon ToolBox progress bar in the Toolbox. The newly created control will be displayed in the preview window; allowing you to move it around to meet your design requirements. Edit the Progress-bar properties as necessary.

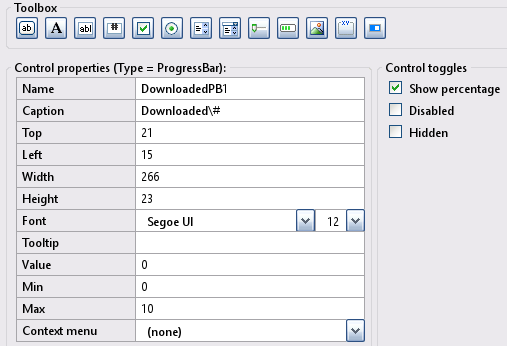

10) Progress-bar Properties:

Progress-bar img

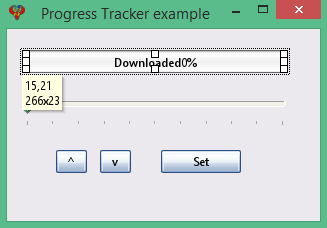

Progress-bar example: Preview window.

Progress-bar img

Note:Progress-bar properties will reflect the highlighted control selected in the preview window, enabling you to customize it as needed.

A ProgressBar control presents the user with a visual indication of the progress of an ongoing task.

Set its Min and Max properties at design time. Update the ProgressBar Value property at runtime.

If you set its ShowPercentage property to True, you can have the control's Caption property show in the bar's area.

You embed the actual percentage by using the placeholder \#.

Progress-bar example

Specification: Let the progress-bar example have the following design specification:

  1. Let the progress have a range of 0-10.
  2. Add two buttons to increment and decrement the progress bar.
  3. A set button forces the progress bar to 50%.
  4. Add a Track/Bar slider to increment and decrement the progress bar.

Implimenation: The following provide solutions for the above:

  • Set the MIN and MAX properties to 0 and 10, respectively.
  • Button hover uses the subroutine __UI_MouseEnter.
  • Up, Down, Set, TrackBar, and ProgressBar use the subroutine __UI_Click.
  • For additional details, check out Progress_Tracker_example.bas.
  • At the layout stage, save the project using File -> Save project as and enter the name Progress_Tracker_example.

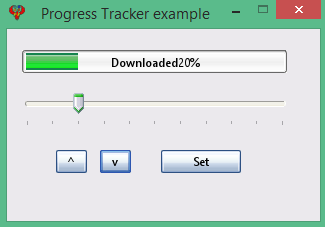

ToolBox Progress bar

Basic file Progress_Tracker_example.bas


': This program uses
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------

': Controls' IDs: ------------------------------------------------------------------
Dim Shared ProgressTrackerExample As Long
Dim Shared TrackBar1 As Long
Dim Shared DownloadedPB1 As Long
Dim Shared upBtn As Long
Dim Shared downBtn As Long
Dim Shared setBtn As Long

': External modules: ---------------------------------------------------------------
'$INCLUDE:'InForm\InForm.bi'
'$INCLUDE:'InForm\xp.uitheme'
'$INCLUDE:'Progress_Tracker_example.frm'

': Event procedures: ---------------------------------------------------------------
Sub __UI_BeforeInit

End Sub

Sub __UI_OnLoad

End Sub

Sub __UI_BeforeUpdateDisplay
    'This event occurs at approximately 60 frames per second.
    'You can change the update frequency by calling SetFrameRate DesiredRate%

End Sub

Sub __UI_BeforeUnload
    'If you set __UI_UnloadSignal = False here you can
    'cancel the user's request to close.

End Sub

Sub __UI_Click (id As Long)
    Select Case id
        Case ProgressTrackerExample

        Case TrackBar1

        Case DownloadedPB1

        Case upBtn
            If Not (Control(TrackBar1).Value = 10) Then                            '<---
                Control(TrackBar1).Value = Control(TrackBar1).Value + 1            '<---
                Control(DownloadedPB1).Value = Control(DownloadedPB1).Value + 1    '<---
            End If                                                                 '<---

        Case downBtn
            If Not (Control(TrackBar1).Value = 0) Then                             '<---
                Control(TrackBar1).Value = Control(TrackBar1).Value - 1            '<---
                Control(DownloadedPB1).Value = Control(DownloadedPB1).Value - 1    '<---
            End If                                                                 '<---

        Case setBtn
            Control(TrackBar1).Value = 5                                           '<---
            Control(DownloadedPB1).Value = 5                                       '<---

    End Select
End Sub

Sub __UI_MouseEnter (id As Long)
    Select Case id
        Case ProgressTrackerExample

        Case TrackBar1

        Case DownloadedPB1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_MouseLeave (id As Long)
    Select Case id
        Case ProgressTrackerExample

        Case TrackBar1

        Case DownloadedPB1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_FocusIn (id As Long)
    Select Case id
        Case TrackBar1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_FocusOut (id As Long)
    'This event occurs right before a control loses focus.
    'To prevent a control from losing focus, set __UI_KeepFocus = True below.
    Select Case id
        Case TrackBar1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_MouseDown (id As Long)
    Select Case id
        Case ProgressTrackerExample

        Case TrackBar1

        Case DownloadedPB1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_MouseUp (id As Long)
    Select Case id
        Case ProgressTrackerExample

        Case TrackBar1
            Control(DownloadedPB1).Value = Control(TrackBar1).Value
        Case DownloadedPB1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_KeyPress (id As Long)
    'When this event is fired, __UI_KeyHit will contain the code of the key hit.
    'You can change it and even cancel it by making it = 0
    Select Case id
        Case TrackBar1

        Case upBtn

        Case downBtn

        Case setBtn

    End Select
End Sub

Sub __UI_TextChanged (id As Long)
    Select Case id
    End Select
End Sub

Sub __UI_ValueChanged (id As Long)
    Select Case id
        Case TrackBar1

    End Select
End Sub

Sub __UI_FormResized

End Sub

'$INCLUDE:'InForm/InForm.ui'

Form file Progress_Tracker_example.frm


': This form was generated by
': InForm - GUI library for QB64 - v1.5
': Fellippe Heitor, 2016-2024 - fellippe@qb64.org - @fellippeheitor
': https://github.com/FellippeHeitor/InForm
'-----------------------------------------------------------
SUB __UI_LoadForm

    DIM __UI_NewID AS LONG, __UI_RegisterResult AS LONG

    __UI_NewID = __UI_NewControl(__UI_Type_Form, "ProgressTrackerExample", 313, 192, 0, 0, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Progress Tracker example"
    Control(__UI_NewID).Font = SetFont("segoeui.ttf", 12)
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CenteredWindow = True

    __UI_NewID = __UI_NewControl(__UI_Type_TrackBar, "TrackBar1", 266, 40, 15, 62, 0)
    __UI_RegisterResult = 0
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).Max = 10
    Control(__UI_NewID).CanHaveFocus = True
    Control(__UI_NewID).Interval = 1

    __UI_NewID = __UI_NewControl(__UI_Type_ProgressBar, "DownloadedPB1", 266, 23, 15, 21, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Downloaded\92;#"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).Max = 10
    Control(__UI_NewID).ShowPercentage = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "upBtn", 31, 23, 49, 121, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "^"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "downBtn", 31, 23, 93, 121, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "v"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

    __UI_NewID = __UI_NewControl(__UI_Type_Button, "setBtn", 80, 23, 154, 121, 0)
    __UI_RegisterResult = 0
    SetCaption __UI_NewID, "Set"
    Control(__UI_NewID).HasBorder = False
    Control(__UI_NewID).CanHaveFocus = True

END SUB

SUB __UI_AssignIDs
    ProgressTrackerExample = __UI_GetID("ProgressTrackerExample")
    TrackBar1 = __UI_GetID("TrackBar1")
    DownloadedPB1 = __UI_GetID("DownloadedPB1")
    upBtn = __UI_GetID("upBtn")
    downBtn = __UI_GetID("downBtn")
    setBtn = __UI_GetID("setBtn")
END SUB


Properties editable at runtime
