# ScPoEconometrics
## Confidence Intervals and The Bootstrap
### Florian Oswald
### SciencesPo Paris </br> 2019-10-23

---

---

# Where Did We Stop Last Week?

* We took repeated samples from a population (Fusilli or plastic balls) and computed an **estimate** of the sample proportion `$\hat{p}$` over and over again

* We took 1000 (!) samples and looked how the sampling distribution evolved as we increased sample sizes from `$n=25$` to `$n=100$`.

* Our estimates became *more precise* as `$n$` increased.

]

.pull-right[
* We introduced notation:
    * population size `$N$`,
    * *point estimate* (like `$\hat{p}$`),
    * standard error *of* an estimate

* We said *random sampling produces **unbiased** estimates*.

* Our sample statistics provided **good guesses** about the true population parameters of interest.
]

---
background-image: url(https://media.giphy.com/media/hXG93399r19vi/giphy.gif)
background-position: 10% 50%
background-size: 500px

# Reality Check

* Also, we **knew** the true population proportion of red balls/green Fusilli!

* If we knew in real life, we wouldn't have to take samples altogether, would we?

* So what on earth was all of this good for? Fun Only?! 😧.
]

---

# Real Life Sampling

* Still we *know* now that there exists a *sampling distribution*.

* In other words: we *know* that there is sampling variation.

* With one sample only, how can we know what it looks like?
]

.pull-right[
* There are two approaches:
    1. Theory: Use mathematical formulas to derive the sampling distributions for our estimators under certain conditions.
    1. Simulation. We can use the **Bootstrap** method to *reconstruct* the sampling distribution.

* We'll focus on the bootstrap now and come back to the maths approach later.

* But first: what is a *bootstrap*?
]

---
background-image: url(https://upload.wikimedia.org/wikipedia/commons/9/9b/Zentralbibliothek_Solothurn_-_M%C3%BCnchhausen_zieht_sich_am_Zopf_aus_dem_Sumpf_-_a0400.tif)
background-position: 12% 50%
background-size: 400px

# Baron von Münchhausen (not)

.pull-right[
* The ethymology of *bootstrapping* is apparently [wrongly attributed](https://en.wikipedia.org/wiki/Bootstrapping) to the Baron of Münchhausen (who pulled himself out of the swamp by his own pigtail)

* The idea is to *pull oneself up by one's own bootstraps*.

* It sounds as if one had super-powers.

* It's a simple but powerful idea. We just *pretend* that our sample **is** the population. Then we repeatedly *resample* from it.
]

---
background-image: url(https://media.giphy.com/media/pPhyAv5t9V8djyRFJH/giphy.gif)
background-position: 12% 50%
background-size: 700px

* 🤯

]

---
background-image: url(https://media.giphy.com/media/pPhyAv5t9V8djyRFJH/giphy.gif)
background-position: 12% 50%
background-size: 700px

* 🤯

* Ok, let's do a little hands-on activity first.

* You'll be fine.

* 😎
]

---

# What's the Average Age of US Pennies?

* [`Moderndive`](https://moderndive.com) went for us to the bank.

* First, They got a roll of 50 pennies.

![:scale 40%](../img/photos/md-bank.jpg)![:scale 40%](../img/photos/md-bank2.jpg)

---

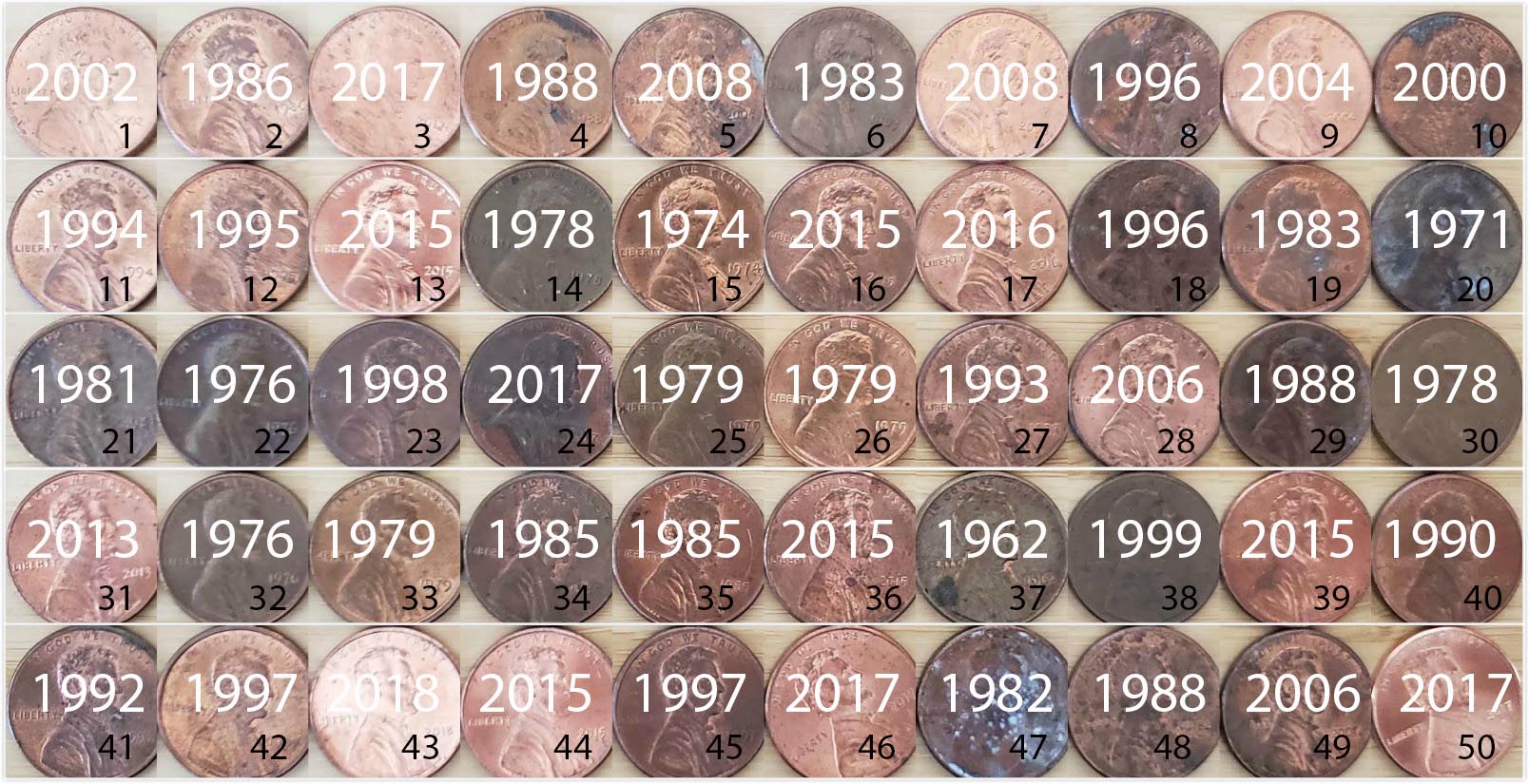

# What's the Average Age of US Pennies?

![:scale 70%](../img/photos/md-pennies.jpg)
]

```r
library(moderndive)
pennies_sample
```

```
## # A tibble: 50 x 2
##       ID  year
##    <int> <dbl>
##  1     1  2002
##  2     2  1986
##  3     3  2017
##  4     4  1988
##  5     5  2008
##  6     6  1983
##  7     7  2008
##  8     8  1996
##  9     9  2004
## 10    10  2000
## # … with 40 more rows
```
]

---

# Analyzing Pennies

* Let's assume this is a *representative, random* sample of all US pennies.

* Let's look at it's distribution and compute the mean `year` in the sample.

* Given randomness, that estimate should come close to the truth.

]

.pull-right[
<img src="boostrap_files/figure-html/unnamed-chunk-2-1.svg" style="display: block; margin: auto;" />

```r
pennies_sample %>%
  summarize(mean_year = mean(year))
```

```
## # A tibble: 1 x 1
##   mean_year
##       <dbl>
## 1     1995.
```
]

---

# Pennies Sample Estimates

.pull-left[
* So far, this is very similar to Fusilli or Balls, where we estimated `$p$` via `$\hat{p}$`

* Here, we estimate the population average `$\mu$` via the **sample mean** `$\bar{x}$`.

* Our best guess about `$\mu$` is thus about 1995.

* But what about sampling variation?

* If we went back to the bank for another roll of pennies, would we end up with the same number for `$\bar{x}$`?
]

* That gave rise to a *distribution* of estimates `$\hat{p}$`.

* We could go back to the bank 1000 times, but 🤔

* We can also use our *single* sample to learn about the sampling distribution.

* It's called **resampling with replacement**.
]

---

# Resampling Once

1. Printed out equally-sized paper slips representing the 50 pennies in the sample.

1. Put them in a paper cup or similar

1. Shake cup to mix the slips, then take out a random slip.

1. Record year on slip.

1. **Put the slip back** into the hat!

1. Repeat 3.-4. for 49 times.
]

![](../img/photos/bootstrap1.JPG)

]

---

# Collect the Bootstrapped Sample

* Let's put the recorded years into a `tibble`!

```r
pennies_resample <- tibble(
  year = c(1976, 1962, 1976, 1983, 2017, 2015, 2015, 1962, 2016, 1976,
           2006, 1997, 1988, 2015, 2015, 1988, 2016, 1978, 1979, 1997,
           1974, 2013, 1978, 2015, 2008, 1982, 1986, 1979, 1981, 2004,
           2000, 1995, 1999, 2006, 1979, 2015, 1979, 1998, 1981, 2015,
           2000, 1999, 1988, 2017, 1992, 1997, 1990, 1988, 2006, 2000)
)
```

* And now let's look at both original and bootstrapped sample!

---

# Comparing Resampled Data To Original Sample

.left-wide[
<img src="boostrap_files/figure-html/unnamed-chunk-5-1.svg" style="display: block; margin: auto;" />
]

```r
pennies_sample %>%
  summarize(mean_year =
              mean(year))
```

```
## # A tibble: 1 x 1
##   mean_year
##       <dbl>
## 1     1995.
```

```r
pennies_resample %>%
  summarize(mean_year =
              mean(year))
```

```
## # A tibble: 1 x 1
##   mean_year
##       <dbl>
## 1     1995.
```
]

---

# Resampling 11 Times

* Everybody produce one re-sample of 50 draws from their set of paper slips.

* Don't forget to **replace** the slip and mix!

* We'll collect data via this [shared google sheet](https://docs.google.com/spreadsheets/d/1cBefpVyP3q2SortQD3TJ_XFQ2kJ5iSxM6qjwTvqcooY/edit?usp=sharing)

* In class, read this data with

    ```r
    url <- "https://docs.google.com/spreadsheets/d/e/2PACX-1vTb_D6Qczq_WLN-VmhG0-xTxh4Kb_e4A_5BPr2p9wtLN9UBB77yMDDKU3nGe34xVvadzjUQCt9jpWj_/pub?gid=0&single=true&output=csv"
    # pennies_our_sample <- readr::read_csv(url)
    ```
]

]

---

# `moderndive` Resampled Data

* The data is collected in

    ```r
    pennies_resamples
    ```

    ```
    ## # A tibble: 1,750 x 3
    ##    replicate name   year
    ##        <int> <chr> <dbl>
    ##  1         1 A      1988
    ##  2         1 A      2002
    ##  3         1 A      2015
    ##  4         1 A      1998
    ##  5         1 A      1979
    ##  6         1 A      1971
    ##  7         1 A      1971
    ##  8         1 A      2015
    ##  9         1 A      1988
    ## 10         1 A      1979
    ## # … with 1,740 more rows
    ```

]

.pull-right[
* And we want to compute the average `year` from each sample:

    ```r
    resampled_means <- pennies_resamples %>%
      group_by(name) %>%
      summarize(mean_year = mean(year))
    resampled_means
    ```

    ```
    ## # A tibble: 35 x 2
    ##    name  mean_year
    ##    <chr>     <dbl>
    ##  1 A         1992.
    ##  2 AA        1996.
    ##  3 B         1996.
    ##  4 BB        1992.
    ##  5 C         1996.
    ##  6 CC        1996.
    ##  7 D         1997.
    ##  8 DD        1997.
    ##  9 E         1991.
    ## 10 EE        1998.
    ## # … with 25 more rows
    ```

]

---

# Visualizing Our (Manual) Bootstrap Distribution

.left-wide[
<img src="boostrap_files/figure-html/unnamed-chunk-11-1.svg" style="display: block; margin: auto;" />
]

1. Shape

2. Central Location

of this!
]

---

# Recap

.pull-left[
* We demonstrated **bootstrapping**. We illustrated sampling distributions like in the previous chapter by *resampling* from a single sample, rather than from the population.

* We obtained the **bootstrap distribution**, which approximates the true *sampling distribution*

* Next up:

]

* We will define the concept of **confidence interval**

* We will introduce the `infer` package to perform *inference* in a `dplyr` pipeline.

]

---

# Virtual Bootstrapping

* That's like taking 50 paper slips out of our hat before.

    ```r
    virtual_resample <- pennies_sample %>%
      rep_sample_n(size = 50, replace = TRUE)
    ```
]

.pull-right[
* notice we set `replace = TRUE`!

    ```r
    virtual_resample
    ```

    ```
    ## # A tibble: 50 x 3
    ## # Groups:   replicate [1]
    ##    replicate    ID  year
    ##        <int> <int> <dbl>
    ##  1         1    41  1992
    ##  2         1    23  1998
    ##  3         1    38  1999
    ##  4         1    38  1999
    ##  5         1    19  1983
    ##  6         1    50  2017
    ##  7         1    13  2015
    ##  8         1    39  2015
    ##  9         1    26  1979
    ## 10         1    17  2016
    ## # … with 40 more rows
    ```
]

---

# Resampling 35 Times

```r
virtual_resamples <- pennies_sample %>%
  rep_sample_n(size = 50, replace = TRUE, reps = 35)
virtual_resamples
```

```
## # A tibble: 1,750 x 3
## # Groups:   replicate [35]
##    replicate    ID  year
##        <int> <int> <dbl>
##  1         1    36  2015
##  2         1    18  1996
##  3         1    34  1985
##  4         1    23  1998
##  5         1    31  2013
##  6         1    47  1982
##  7         1    28  2006
##  8         1    20  1971
##  9         1     6  1983
## 10         1    44  2015
## # … with 1,740 more rows
```
]

```r
virtual_resampled_means <- virtual_resamples %>%
  group_by(replicate) %>%
  summarize(mean_year = mean(year))
virtual_resampled_means
```

```
## # A tibble: 35 x 2
##    replicate mean_year
##        <int>     <dbl>
##  1         1     1993.
##  2         2     1996.
##  3         3     1998.
##  4         4     1996.
##  5         5     1993.
##  6         6     1998.
##  7         7     1997.
##  8         8     1995.
##  9         9     1994.
## 10        10     1996.
## # … with 25 more rows
```
]

---

# Resampling 1000 times

```r
virtual_resampled_means <- pennies_sample %>%
  rep_sample_n(size = 50, replace = TRUE, reps = 1000) %>%
  group_by(replicate) %>%
  summarize(mean_year = mean(year))
virtual_resampled_means
```

```
## # A tibble: 1,000 x 2
##    replicate mean_year
##        <int>     <dbl>
##  1         1     1995.
##  2         2     1996.
##  3         3     1996.
##  4         4     1996.
##  5         5     1995.
##  6         6     1996.
##  7         7     1997.
##  8         8     2000.
##  9         9     1996.
## 10        10     1998.
## # … with 990 more rows
```

---

# Distribution of 1000 Resamples

---
layout: false
class: title-slide-section-red, middle

# Confidence Intervals

---
layout: true

---

# Confidence Intervals (CIs)

* In order to construct a CI, we need
    1. an underlying *sampling distribution*, either boostrapped as here, or derived from theory.
    2. to specify a **confidence level**, like 90% or 95% etc. Greater level implies wider CIs.

* There are two methods: the **percentile method** and the **standard error method**.
]

1. the **percentile method** cuts the bootstrap distribution below the 2.5% and 97.5% percentile (thus it selects the middle 95%).

2. The **standard error method** assumes that the sampling distribution is approximately normal, and uses a corresponding formula for the width of the CI.

]

---

# Percentile Method

.left-wide[
<img src="boostrap_files/figure-html/unnamed-chunk-18-1.svg" style="display: block; margin: auto;" />
]

* We cut the boostrap distribution at the 2.5% and 97.5% quantiles

* Those values are 1991.1985 and 1999.6805

]

---

# Standard Error Method

* If approximately normal, 95% of observations fall within `$\pm 1.96$` standard deviations of the mean.

* We obtain the CIs as follows:

`$$\begin{align} x \pm 1.96 \cdot SE &= (\bar{x} -  1.96 \cdot SE, \bar{x} +  1.96 \cdot SE)\\ &= (1995.44 -  1.96 \cdot 2.19, 1995.44 +  1.96 \cdot 2.19)\\ &= (1991.1476, 1999.7324) \end{align}$$`

* Only valid, if sampling distribution is **approximately normal**!

]

```r
x_bar <- pennies_sample %>%
  summarize(mean_year =
              mean(year))
SE = virtual_resampled_means %>%
  summarize(SE =
              sd(mean_year))
SE
```

```
## # A tibble: 1 x 1
##      SE
##   <dbl>
## 1  2.19
```

* Remember that we called this the *standard error* (SE) of the mean.

]

---

# Comparing Percentile and Standard Error Method

.left-wide[
<img src="boostrap_files/figure-html/unnamed-chunk-20-1.svg" style="display: block; margin: auto;" />
]

.right-thin[
* The *percentile method* is based on the simulated bootstrap distribution. Shape of distribution is irrelevant.

* The *standard error method* is based on *assuming* that the sampling dist. is approximately normal.

]

---

# Constructing Confidence Intervals With `infer`

* The `infer` package is useful for **inference**.

* It relies on the bootstrap just like we introduced it above.

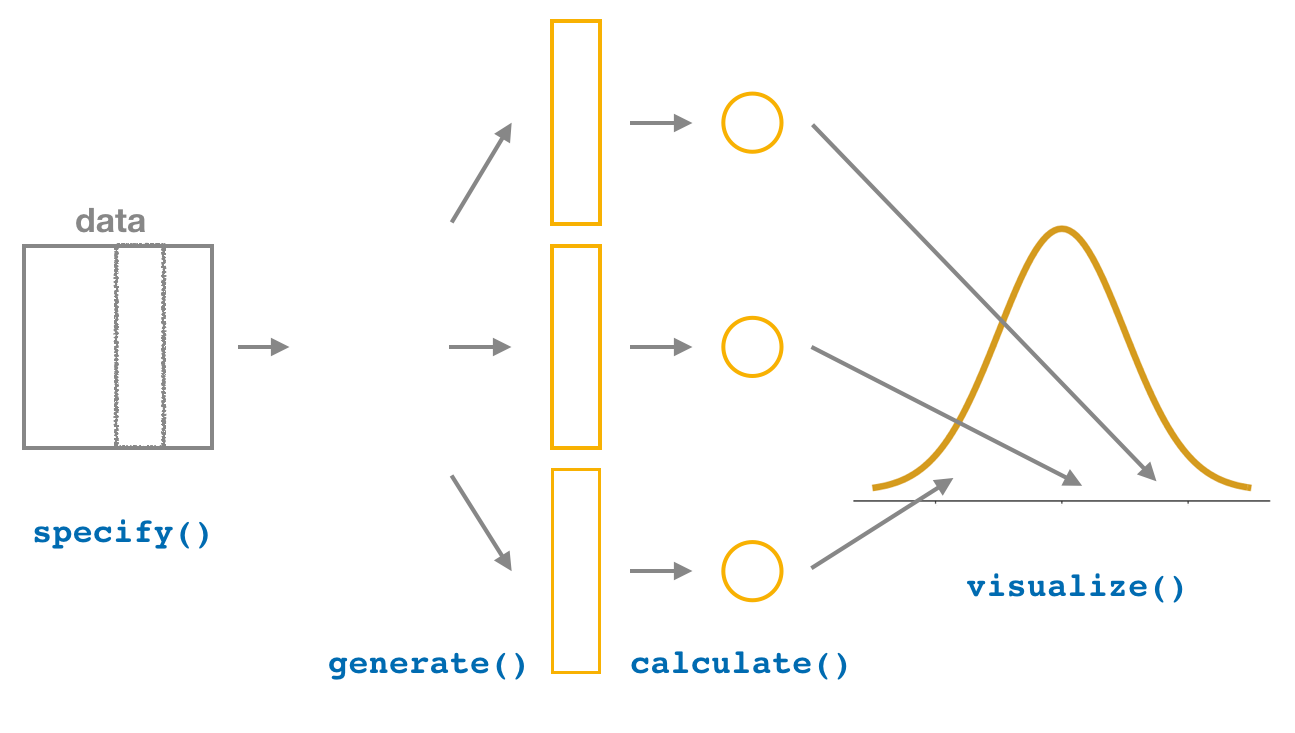

* A typical `infer` pipeline looks like this:

```r
library(infer)
pennies_sample %>%
  specify(response = year) %>%
  generate(reps = 35,type = "bootstrap") %>%
  calculate(stat = "mean") %>%
  visualize()
```
]

---

# Percentile Method with `infer`

.pull-left[
* Let's start with creating a bootstrap distribution:

    ```r
    bootstrap_distribution <- pennies_sample %>%
      specify(response = year) %>%
      generate(reps = 1000, type = "bootstrap") %>%
      calculate(stat = "mean")
    bootstrap_distribution
    ```

    ```
    ## # A tibble: 1,000 x 2
    ##    replicate  stat
    ##        <int> <dbl>
    ##  1         1 1996.
    ##  2         2 1995.
    ##  3         3 1996.
    ##  4         4 1997.
    ##  5         5 1993.
    ##  6         6 1996.
    ##  7         7 1996.
    ##  8         8 1994.
    ##  9         9 1995.
    ## 10        10 1994.
    ## # … with 990 more rows
    ```

]

```r
visualize(bootstrap_distribution)
```

<img src="boostrap_files/figure-html/unnamed-chunk-23-1.svg" style="display: block; margin: auto;" />
]

---

# Percentile Method with `infer`

.pull-left[
* We can easily get the CI like this:

    ```r
    percentile_ci <- bootstrap_distribution %>%
      get_confidence_interval(level = 0.95,
                              type = "percentile")
    percentile_ci
    ```

    ```
    ## # A tibble: 1 x 2
    ##   `2.5%` `97.5%`
    ##    <dbl>   <dbl>
    ## 1  1991.   2000.
    ```

* Just set `type = "se"` for standard error method!

* What's best is the visualization though! 🎉
]

```r
visualize(bootstrap_distribution) +
  shade_confidence_interval(endpoints =
                              percentile_ci)
```

* Or shorter `shade_ci()`.
]

---

# Interpreting CIs

* Now we want to know: is the true value contained in the CI?

* Let's go back to the red/white balls in `bowl`.

* Given this **is** the population, we can compute the true `$p$`:

```r
bowl %>%
  summarize(p_red = mean(color == "red"))
```

```
## # A tibble: 1 x 1
##   p_red
##   <dbl>
## 1 0.375
```
]

.pull-right[
* In reality, again, we *don't know* `$p$`, and that is why we go through all this estimation trouble.

* Let's take one of the samples taken from the bowl, `bowl_sample_1`

    ```r
    prop.table(table(bowl_sample_1$color))
    ```

    ```
    ##
    ##   red white
    ##  0.42  0.58
    ```

* Is the true value `$p$` contained in a CI based on this particular `$\hat{p}=0.42$`?

* Let's construct a boostrap sample and find out!
]

---

# Constructing a CI based on `$\hat{p}$`

```r
sample_1_bootstrap <- bowl_sample_1 %>%
  # given `color` is a factor, tell what is success
  specify(response = color, success = "red") %>%
  # generate 1000 bootstrap samples
  generate(reps = 1000, type = "bootstrap") %>%
  # for each, calculate the proportion of successes
  calculate(stat = "prop")

percentile_ci_1 <- sample_1_bootstrap %>%
  get_confidence_interval(level = 0.95, type = "percentile")
percentile_ci_1
```

```
## # A tibble: 1 x 2
##   `2.5%` `97.5%`
##    <dbl>   <dbl>
## 1   0.28    0.56
```

* Here to visualize it:

```r
sample_1_bootstrap %>%
  visualize(bins = 15) +
  shade_confidence_interval(endpoints = percentile_ci_1) +
  geom_vline(xintercept = 0.375, linetype = "dashed")
```
]

.pull-right[
<img src="boostrap_files/figure-html/unnamed-chunk-30-1.svg" style="display: block; margin: auto;" />
* Had we taken another sample, we would have obtained a different result.
* Take 100 samples and see how well we do!
]

---

# How many CIs Contain the True Values?

2. Construct a 95%-CI from each.

3. We plot the true `$p = 0.375$`.

4. You see that 5 of them miss the true value.

5. Hence, a 95% confidence interval.
]

.right-wide[
<img src="boostrap_files/figure-html/unnamed-chunk-31-1.svg" style="display: block; margin: auto;" />
]

---

# THANKS

To the amazing [moderndive](https://moderndive.com/) team!

---

class: title-slide-final, middle
background-image: url(../img/logo/ScPo-econ.png)
background-size: 250px
background-position: 9% 19%

# END

|                                                                                                            |                                   |
| :--------------------------------------------------------------------------------------------------------- | :-------------------------------- |
| <a href="mailto:florian.oswald@sciencespo.fr">.ScPored[<i class="fa fa-paper-plane fa-fw"></i>]               | florian.oswald@sciencespo.fr       |
| <a href="https://github.com/ScPoEcon/ScPoEconometrics-Slides">.ScPored[<i class="fa fa-link fa-fw"></i>] | Slides |
| <a href="https://scpoecon.github.io/ScPoEconometrics">.ScPored[<i class="fa fa-link fa-fw"></i>] | Book |
| <a href="http://twitter.com/ScPoEcon">.ScPored[<i class="fa fa-twitter fa-fw"></i>]                          | @ScPoEcon                         |
| <a href="http://github.com/ScPoEcon">.ScPored[<i class="fa fa-github fa-fw"></i>]                          | @ScPoEcon                       |
