Non-Blocking Algorithms

Disadvantages of Blocking Algorithms

• Performance: Leads to reduced performance under high concurrency due to lock contention.
• Deadlocks: Possibility of deadlocks when multiple threads wait on each other’s locks.
• Resource Utilization: Inefficient use of system resources with threads blocked and idle.

Advantages of Non-Blocking Algorithms

• Scalability: Enable concurrent operations without locks.
• Deadlock-Free: Eliminates the risk of deadlocks.
• Efficiency: Offers finer granularity of operation.

Atomic Variables

Role of Atomic Variables

• Atomic Operations: Enable low-level atomic operations.
• Data Integrity: Ensure data integrity without locks.
• Utility:
  • Counters and statistics.
  • Concurrent data structure implementation.

The Counter implementation using an AtomicInteger

public class AtomicCounter {
    AtomicInteger value = new AtomicInteger(0);

    void increment() {
        value.incrementAndGet();
    }

    int getValue() {
        return value.get();
    }
}

Typical Operations

• get(), set(int newValue), getAndSet(int newValue)
• compareAndSet(int expect, int newValue)
• getAndIncrement(), getAndDecrement(), getAndAdd(int delta)
• getAndUpdate(IntUnaryOperator lambda)

In Rust

struct Counter { value: AtomicU64 }

impl Counter {
    // Initialize a new counter
    fn new() -> Counter {  Counter { value: AtomicU64::new(0) } }

    // Increment the counter by 1
    fn increment(&self) {
        // Relaxed ordering is often sufficient for simple counters.
        self.value.fetch_add(1, Ordering::Relaxed);
    }

    // Get the current value of the counter
    fn get(&self) -> usize { self.value.load(Ordering::Relaxed) }
}

If you are really intrigued about the Ordering parameter, you can check: The rust nomicon

Typical Operations

• new(val: i32) -> AtomicI32
• load(order: Ordering) -> i32, store(val: i32, order: Ordering),
• compare_exchange(expected: i32, new: i32, ...)
• fetch_add(val: i32, order: Ordering) -> i32, fetch_sub(val: i32, order: Ordering) -> i32
• fetch_update<F>(set_order: Ordering, fetch_order: Ordering, lambda: F)

Non Blocking Concurrent Data Structures

A Stack

class Stack<E> {
    class Node<E>(val item: E, var next: Node<E>? = null)

    private var top: Node<E>? = null

    fun push(item: E) {
        val newHead = Node(item)
        newHead.next = top
        top = newHead
    }

    // fun pop(): E? { ... }
}

A Non-Blocking Concurrent Stack

class ConcurrentStack<E> {
    class Node<E>(val item: E, var next: Node<E>? = null)

    private var top = AtomicReference<Node<E>?>()

    fun push(item: E) {
        val newHead = Node(item)
        var oldHead: Node<E>?
        do {
            oldHead = top.get()
            newHead.next = oldHead
        } while (!top.compareAndSet(oldHead, newHead))
    }
}

Pop Implementation

  fun pop(): E? {

    var oldHead: Node<E>? = top.get()

    while (oldHead != null && !top.compareAndSet(oldHead, oldHead.next))
        oldHead = top.get()

    return oldHead?.item
}

A Non Blocking Queue

A typical Queue implementation using a linked list

Implementation (Non Concurrent One)

class Queue<E> {
    class Node<E>(val item: E?, var next: Node<E>? = null)

    val dummy = Node<E>(null)
    var head = dummy
    var tail = dummy

    fun enqueue(item: E) {
        val newNode = Node(item)
        tail.next = newNode
        tail = newNode
    }
    fun dequeue(): E? {
        val headNext = head.next
        if (headNext == null) return null
        head = headNext
        return head.item
    }
}

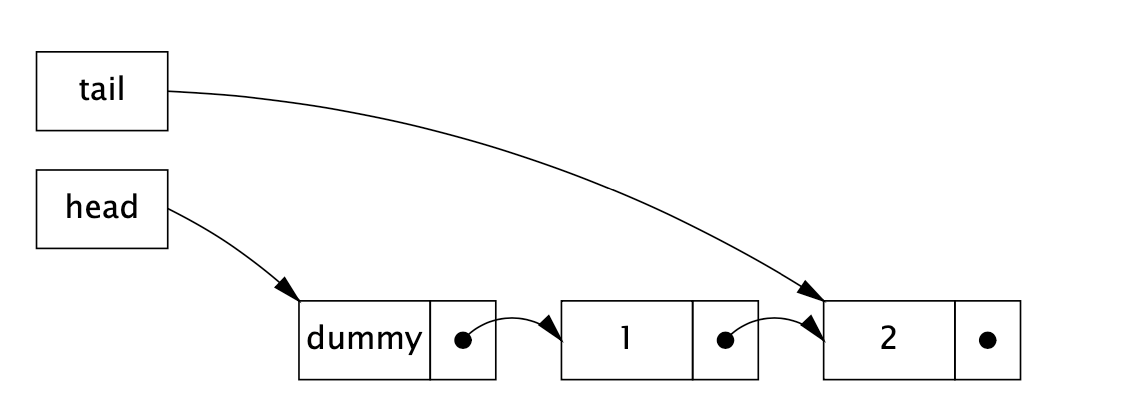

The Problem for a concurrent algorithm

• Two pointers refer to the node at the tail (Node 2)
  • The next pointer of the second to last element (Node 1),
  • The tail pointer
• To insert a new element both should be updated atomically

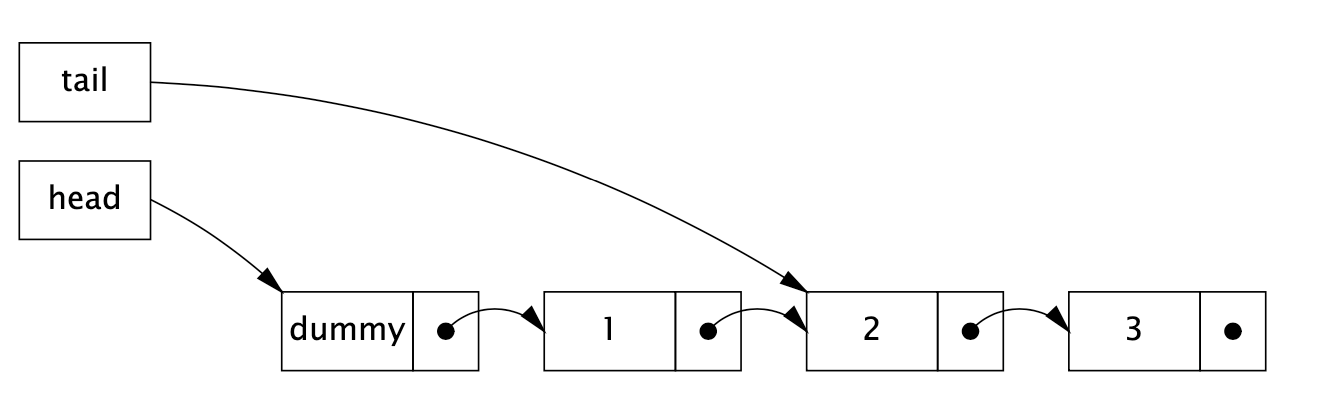

Steps during insertion

Intermediate State

val newNode = Node(item)
tail.next = newNode

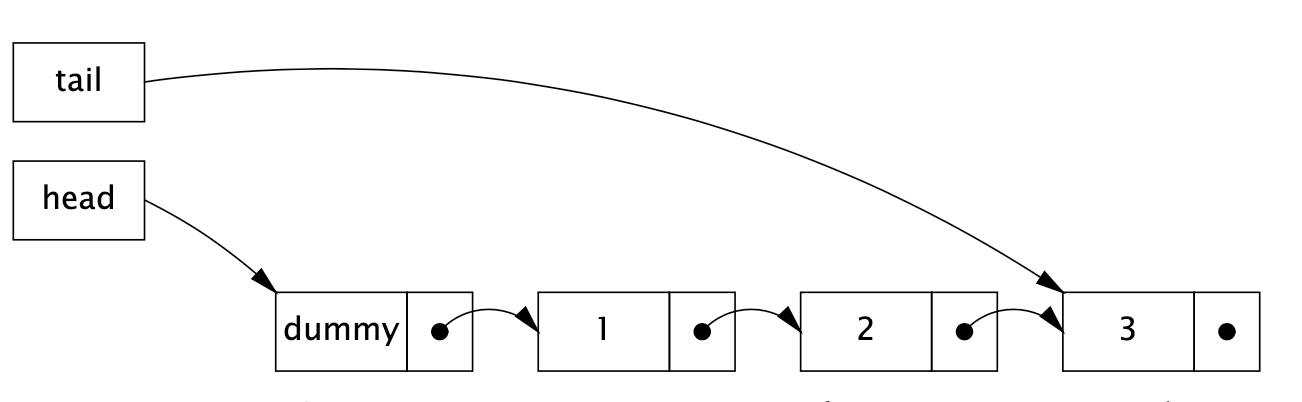

"At rest" State

tail = newNode

The Trick!

• Given Threads A and B
• If B finds the structure in the middle of an update by A, B can complete the update.
• B “helps” A to finish A’s operation
• When A gets try to finish its operation, it will find that B already did the job for it.

The implementation

First - Replace the pointers by AtomicReferences

class Queue {
    class Node<E>(val item: E?,
                  val next: AtomicReference<Node<E>?> = AtomicReference(null))

    private val dummy = Node<E>(null)
    private val head = AtomicReference(dummy)
    private val tail = AtomicReference(dummy)

    fun enqueue(item: E) {
        val newNode = Node(item)
        val curTail = tail.get()
        curTail.next.compareAndSet(null, newNode) // What happens if this fails ??
        tail.compareAndSet(curTail, newNode)
    }
}

Add a loop to try until success

val newNode = Node(item)
while (true) {
    val curTail = tail.get()

    if (curTail.next.compareAndSet(null, newNode)) {
        tail.compareAndSet(curTail, newNode) // What happens if this fails ???
        return
    }
}

Complete the operation if tail is already updated

 val newNode = Node(item)
while (true) {
    val curTail = tail.get()
    val tailNext = curTail.next.get()

    if (tailNext != null) {
        // Queue in intermediate state, advance tail
        tail.compareAndSet(curTail, tailNext)
    }
    else if (curTail.next.compareAndSet(null, newNode)) {
        tail.compareAndSet(curTail, newNode)
        return
    }
}

Last detail

val curTail = tail.get()

// What happens if the thread is interrupted here ??

val tailNext = curTail.next.get()

// tailNext will point to an invalid node !

Ensure that I have the right tail

while (true) {
    val curTail = tail.get()
    val tailNext = curTail.next.get()
    // Check if the tail has not moved
    if (curTail == tail.get()) {
        // Previous code
    }
    // Try again
}

The ABA Problem in Concurrency

• What is the ABA Problem?
  • A concurrency issue where a value changes from A to B and back to A.
  • Concurrent operations may not detect this change, leading to incorrect assumptions.
• Why is it a Problem?
  • Operations like compare-and-swap (CAS) can be tricked into thinking no change occurred.
  • Potentially causing incorrect program behavior.
  • For example. If I pop an item from a stack and modify it if still is the same

Solutions and Mitigations

• Versioning: Attach version numbers or timestamps to data, ABA becomes A1-B2-A3.
• In Java there is a class AtomicStampedReference that does that
• Example: ref.compareAndSet(currentValue, newValue, currentStamp, newStamp);
• Note that in Rust the problem in the example above should not happen. Why ?

Pros & Cons of Non Blocking algorithms

High contention is when multiple threads very frequently attempts to access and modify the same shared resource at the same time.

Pros & Cons of Non Blocking algorithms
